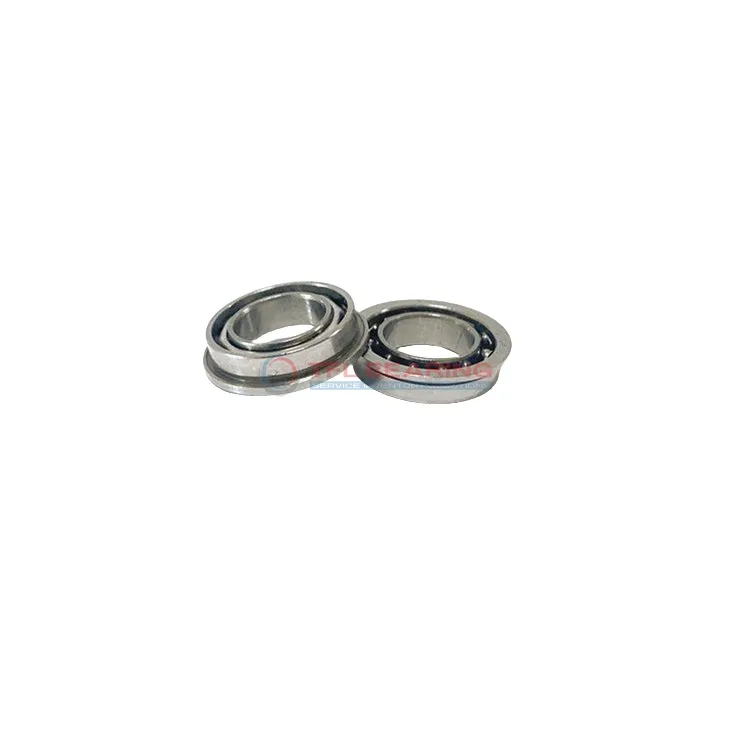

Flanged Deep Groove Ball Bearings D/W R0 R

Flanged Deep Groove Ball Bearings D/W R0 R

The D/W R0 R is a compact flanged deep groove ball bearing, measuring just 0.04689″ in bore diameter and 0.20299″ in outer diameter. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

This bearing handles radial loads up to 14 lbf and can spin at speeds up to 140,000 RPM, making it suitable for high-speed applications. Its open design allows for easy lubrication when needed.

The built-in flange provides secure mounting, helping the bearing stay in place during operation. With a temperature range of -30°C to 120°C, it works well in various environments.

Ideal for small precision instruments or miniature machinery where space is limited. Compliant with RoHS and REACH standards, it’s a safe choice for various industries. Weighing only 0.0001kg, it’s incredibly lightweight yet durable.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R0 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 0.04689"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.15618"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.06252"
  • Width Tolerance -0.005" to 0"
  • Flange Outer Dia 0.20299"
  • Flange Thickness 0.01299"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 14 lbf
  • Static Radial Load 4 lbf
  • Max Speed 140000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0001 kg
  • Price（$） 1.2
Flanged Deep Groove Ball Bearings D/W R0 R dimension drawing
Download DWG Download PDF

Features

How Is D/W R0 R Bearing Engineered for Reliability?

D/W R0 R Bearing features stainless steel rings and balls, ensuring resistance to corrosion and wear.
Its dynamic radial load capacity of 14 lbf makes it suitable for light to moderate radial loads.
The open design allows for easy lubrication, enhancing performance in various conditions.
With a maximum speed of 140,000 rpm, it is ideal for high-speed applications.

Application

Common Applications of D/W R0 R Bearing
D/W R0 R Bearing is commonly used in small electric motors, where its compact size and stainless steel construction ensure reliable performance. The open design allows for easy lubrication, making it suitable for high-speed applications.

In consumer electronics like printers and small fans, D/W R0 R Bearing provides smooth rotation with minimal noise. Its inch sizing makes it a good fit for devices designed to US standards.

For automation systems, D/W R0 R Bearing works well in robotic arms and precision mechanisms. The flange design helps with secure mounting, reducing alignment issues during assembly.

Medical devices such as dental tools benefit from D/W R0 R Bearing’s corrosion-resistant materials. The stainless steel components ensure hygiene and longevity in sterile environments.
