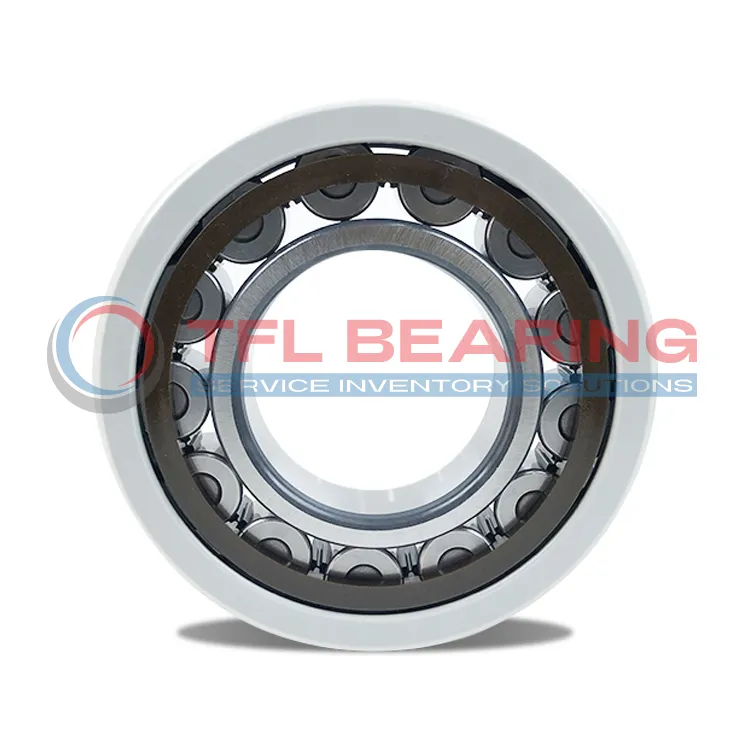

FAG Current-Insulated Single Row Cylindrical Roller Bearing NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX

FAG Current-Insulated Single Row Cylindrical Roller Bearing NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX

The FAG NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX is a current-insulated cylindrical roller bearing with a 100mm bore and 180mm outer diameter, designed to handle electrical currents. Its outer ring features a ceramic coating for insulation, preventing damage from stray currents.

This bearing supports dynamic loads up to 295 kN and static loads up to 305 kN, with a reference speed of 3450 RPM. The plastic cage ensures smooth operation and reduces friction.

The C4 radial clearance allows for thermal expansion, making it suitable for high-temperature environments. It’s ideal for electric motors or generators where electrical insulation is needed.

Weighing 3.75 kg, it’s robust yet manageable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 100.0 mm
  • Outside Diameter 180.0 mm
  • Width 46.0 mm
  • Net Weight 3.75 kg
  • Basic Dynamic Load Rating 295 kN
  • Basic Static Load Rating 305 kN
  • Reference Speed 3450r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material P - Plastic Molded Cage
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant

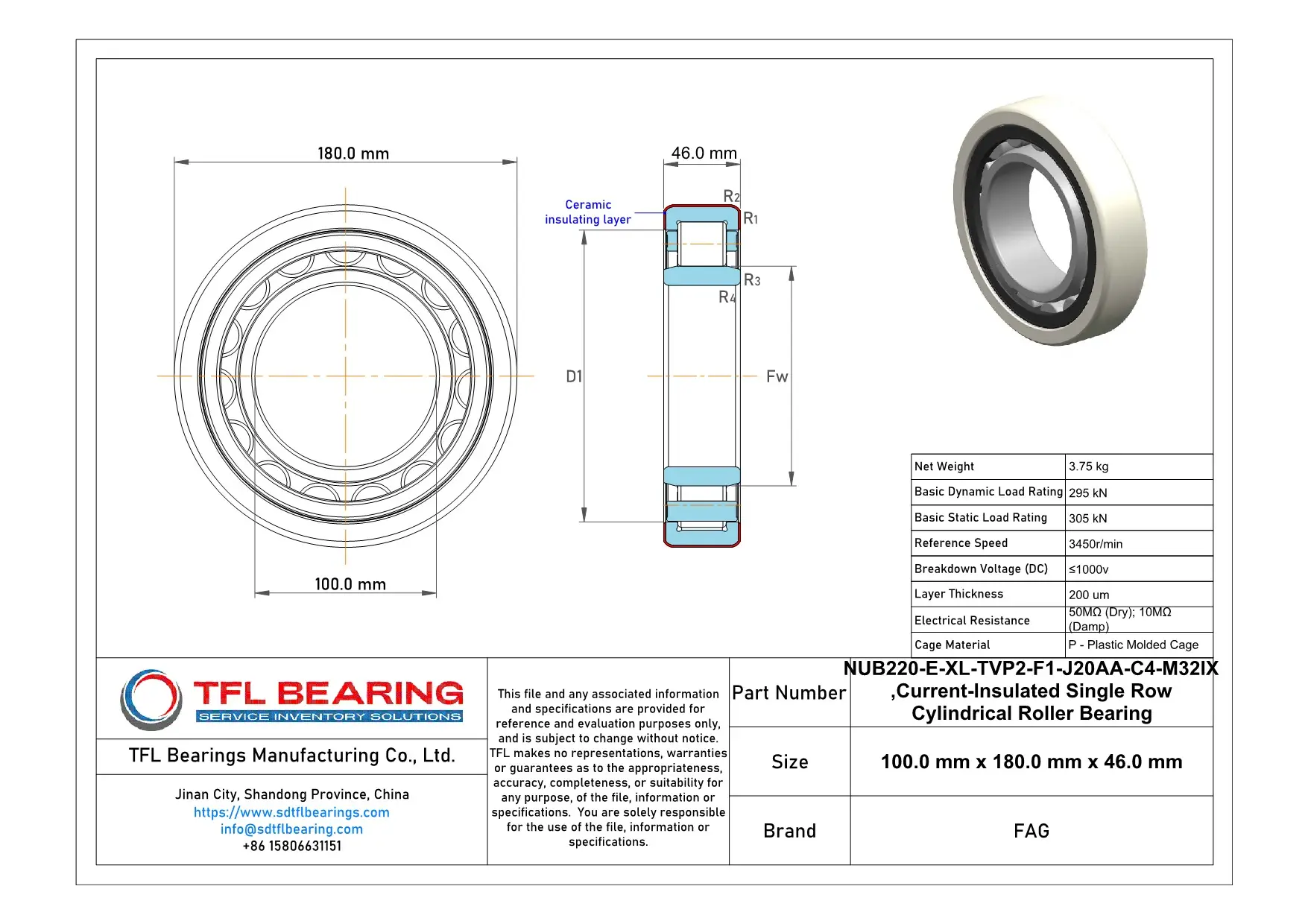

FAG Current-Insulated Single Row Cylindrical Roller Bearing NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX dimension drawing
Download DWG Download PDF

Features

How Does NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX Bearing Resist Electrical Current?

NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX Bearing features an outer ring with a ceramic coating, providing excellent insulation against electrical currents.
The coating offers a breakdown voltage of up to 1000V, ensuring reliable performance in electrically charged environments.
With a plastic molded cage, it reduces friction and wear, enhancing operational efficiency.
Its C4 radial internal clearance allows for thermal expansion, making it suitable for high-speed applications.

Application

Industrial Uses of NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX Bearing
NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical arcing. The ceramic outer ring coating ensures reliable performance in high-voltage environments.

What Makes NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX Bearing a Preferred Choice?
With its plastic molded cage and C4 radial clearance, NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX Bearing offers smooth operation in high-speed applications like turbines. The design reduces friction and heat buildup, extending service life.

Built for Heavy-Duty Use: NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX Bearing
NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX Bearing handles heavy loads in industrial gearboxes, thanks to its 295 kN dynamic load rating. The robust construction makes it suitable for harsh operating conditions.

Automotive vs Aerospace: Applications of NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX Bearing
In automotive systems, NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX Bearing is used in hybrid vehicle drivetrains for its insulation properties. Aerospace applications benefit from its high-speed capability and reliability.

Perfect Fit for Automation: NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX Bearing
NUB220-E-XL-TVP2-F1-J20AA-C4-M32IX Bearing is ideal for robotic arms and automated machinery, where precision and electrical insulation are key. The ceramic coating ensures consistent performance in sensitive electronic environments.
