Drawn Cup Needle Roller Bearings HN1210

Drawn Cup Needle Roller Bearings HN1210

The HN1210 is a drawn cup needle roller bearing with a 12mm bore and 16mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1798 lbf and can reach speeds of 8900 RPM.
Its full complement design offers high load capacity in a compact size, while the open seal allows for easy lubrication. The press-fit mounting ensures a secure installation on shafts.
This bearing is interchangeable with INA models, making it a practical choice for replacements. It works well in temperatures from -20°C to 110°C, suitable for automotive or industrial applications.
Weighing just 10mm in width, it fits snugly in tight spaces. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HN1210
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 12 mm
  • Bore Dia Tolerance +16-+34°Cm
  • Outer Dia 16 mm
  • Outer Dia Tolerance Not Rated
  • Width 10 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Full Complement
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1798 lbf
  • Static Radial Load 3012 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 8900 rpm
  • Weight 5.3 g

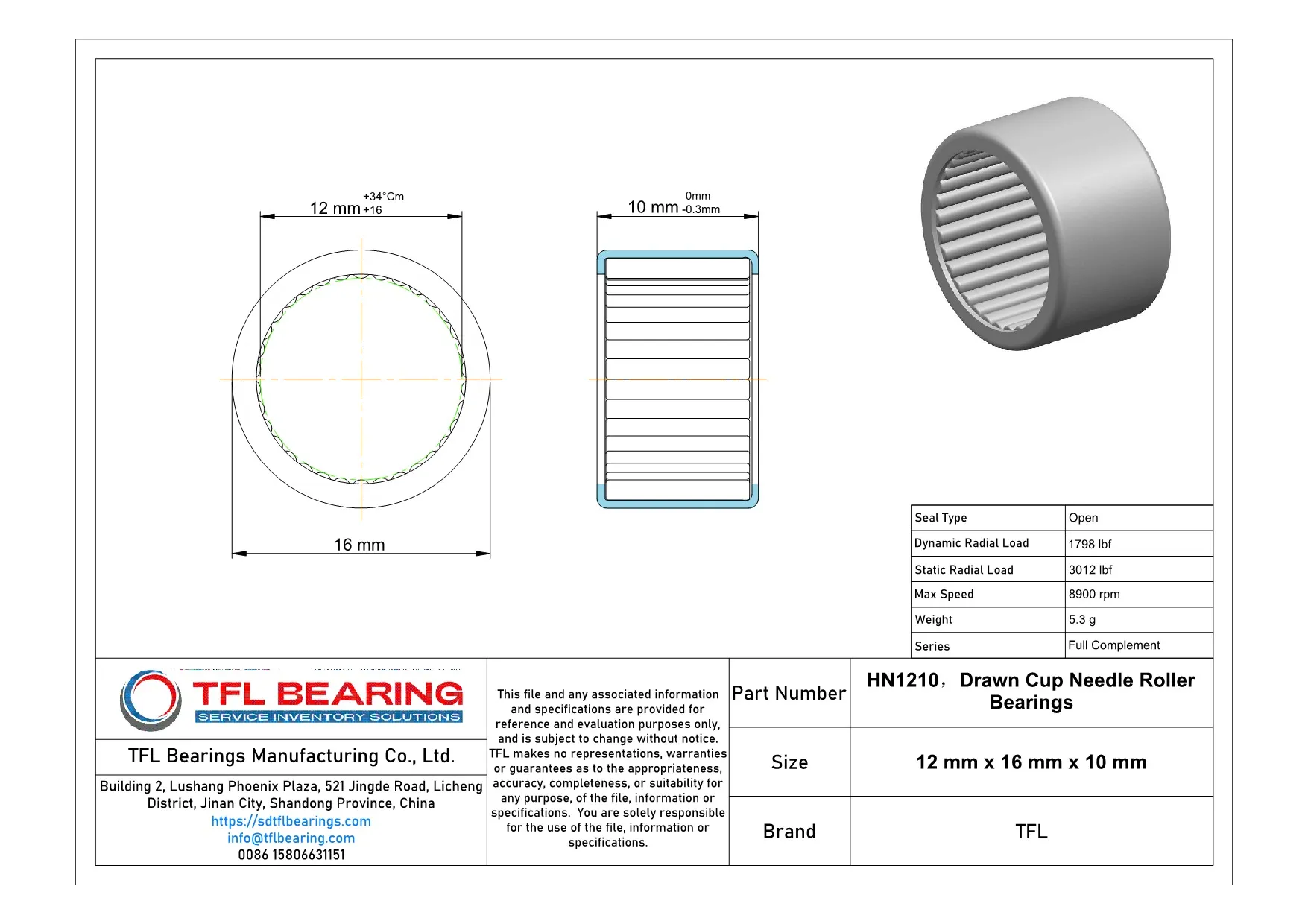

Drawn Cup Needle Roller Bearings HN1210 dimension drawing
Download DWG Download PDF

Features

Why Choose HN1210 Bearing for Precision Tasks?
HN1210 Bearing is crafted with a full complement needle roller design, offering high radial load capacity in compact spaces.
Its steel construction ensures durability, handling dynamic radial loads up to 1798 lbf.
The press-fit shaft mount simplifies installation, saving time and effort.
With a maximum speed of 8,900 rpm, HN1210 Bearing delivers reliable performance in various applications.
Its open design allows for easy lubrication, maintaining smooth operation.
HN1210 Bearing operates efficiently within a temperature range of -20 to 110°C, adapting to different environments.

Application

Industrial Uses of HN1210 Bearing
HN1210 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
Where Is HN1210 Bearing Used?
You’ll often find HN1210 Bearing in automotive transmissions, where its press-fit design simplifies installation. Its ability to handle high speeds makes it a reliable choice for performance vehicles.
Perfect Fit for Automation: HN1210 Bearing
HN1210 Bearing works well in robotic arms, providing smooth motion and precise control. The full complement design enhances load distribution, reducing wear over time.
Light-Duty vs Heavy-Duty: Best Uses for HN1210 Bearing
HN1210 Bearing excels in light-duty applications like printers, where its small size and efficiency are key. For heavier tasks, it’s also found in conveyor systems, handling consistent radial loads.
Medical vs Industrial: Where HN1210 Bearing Excels
In medical devices like lab equipment, HN1210 Bearing offers reliable performance with minimal maintenance. Its steel components resist corrosion, ensuring long-term use in sterile environments.
