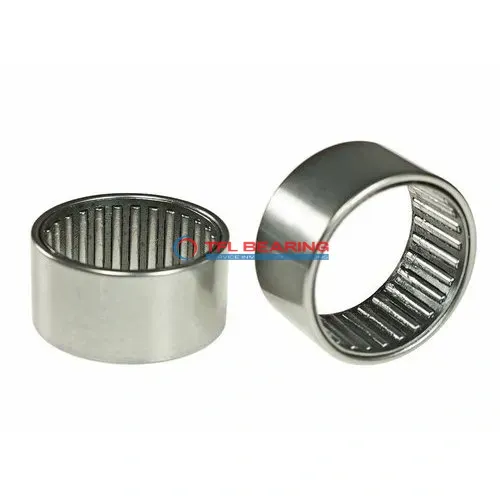

Drawn Cup Needle Roller Bearings BCE2010

Drawn Cup Needle Roller Bearings BCE2010

The BCE2010 is a drawn cup needle roller bearing with a 1.25″ bore and 1.5″ outer diameter, made from sturdy steel for reliable performance. It handles radial loads up to 3934 lbf and spins smoothly at speeds up to 8200 RPM.
Its open design and press-fit mounting make it easy to install, while the steel cage ensures durability. The bearing requires lubrication for optimal performance and works in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like automotive components or industrial machinery where space is limited but high load capacity is needed.
Compliant with RoHS standards, it’s a safe and efficient choice for various mechanical systems. The closed-end design helps keep contaminants out, extending its service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE2010
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.25"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.5"
  • Outer Dia Tolerance Not Rated
  • Width 0.625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 3934 lbf
  • Static Radial Load 6969 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 8200 rpm
  • Weight 30 g
Drawn Cup Needle Roller Bearings BCE2010 dimension drawing
Download DWG Download PDF

Features

Why Choose BCE2010 Bearing for Precision Tasks?
BCE2010 Bearing features a steel construction, offering strong resistance to radial loads with a dynamic capacity of 3934 lbf.
Its needle roller design ensures efficient load distribution, making it suitable for high-precision applications.
The press-fit shaft mount type simplifies installation, saving time and effort.
With a maximum speed of 8200 rpm, it delivers reliable performance in various conditions.

Application

Key Fields for BCE2010 Bearing
BCE2010 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding conditions.
In automotive applications, BCE2010 Bearing fits well in transmission systems, providing smooth rotation under heavy loads. Its press-fit design simplifies installation, saving time during assembly.
For automation equipment, BCE2010 Bearing offers reliable performance in robotic arms and conveyor systems. The open seal type allows for easy lubrication, extending its service life.
In household appliances like washing machines, BCE2010 Bearing handles radial loads efficiently. Its inch measurements make it compatible with various North American and European models.
