Double Row Full Complement Cylindrical Roller Bearings NNF 5017 B-2LS

Double Row Full Complement Cylindrical Roller Bearings NNF 5017 B-2LS

The NNF 5017 B-2LS is a double row full complement cylindrical roller bearing, measuring 85mm by 130mm by 60mm. Made from durable 52100 chrome steel, it handles combined loads with a dynamic radial capacity of 60750 lbf.

Its sealed design keeps contaminants out, while the full complement roller arrangement boosts load capacity. The bearing operates smoothly at speeds up to 1000 RPM and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making replacements straightforward. Ideal for heavy-duty applications like industrial gearboxes or machinery where high radial loads are common.

Compliant with RoHS and REACH standards, it offers reliable performance with grease or oil lubrication. The robust construction ensures long service life even in demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NNF 5017 B-2LS
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 60 mm
  • Width Tolerance -0.20mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Sealed
  • Chamfer Dimension r3,4(min.) 0.6 mm
  • Ring Material 52100 Chrome Steel
  • Roller Material 52100 Chrome Steel
  • Cage Material Full complement (no cage)
  • Dynamic Radial Load 60750 lbf
  • Static Radial Load 96750 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant

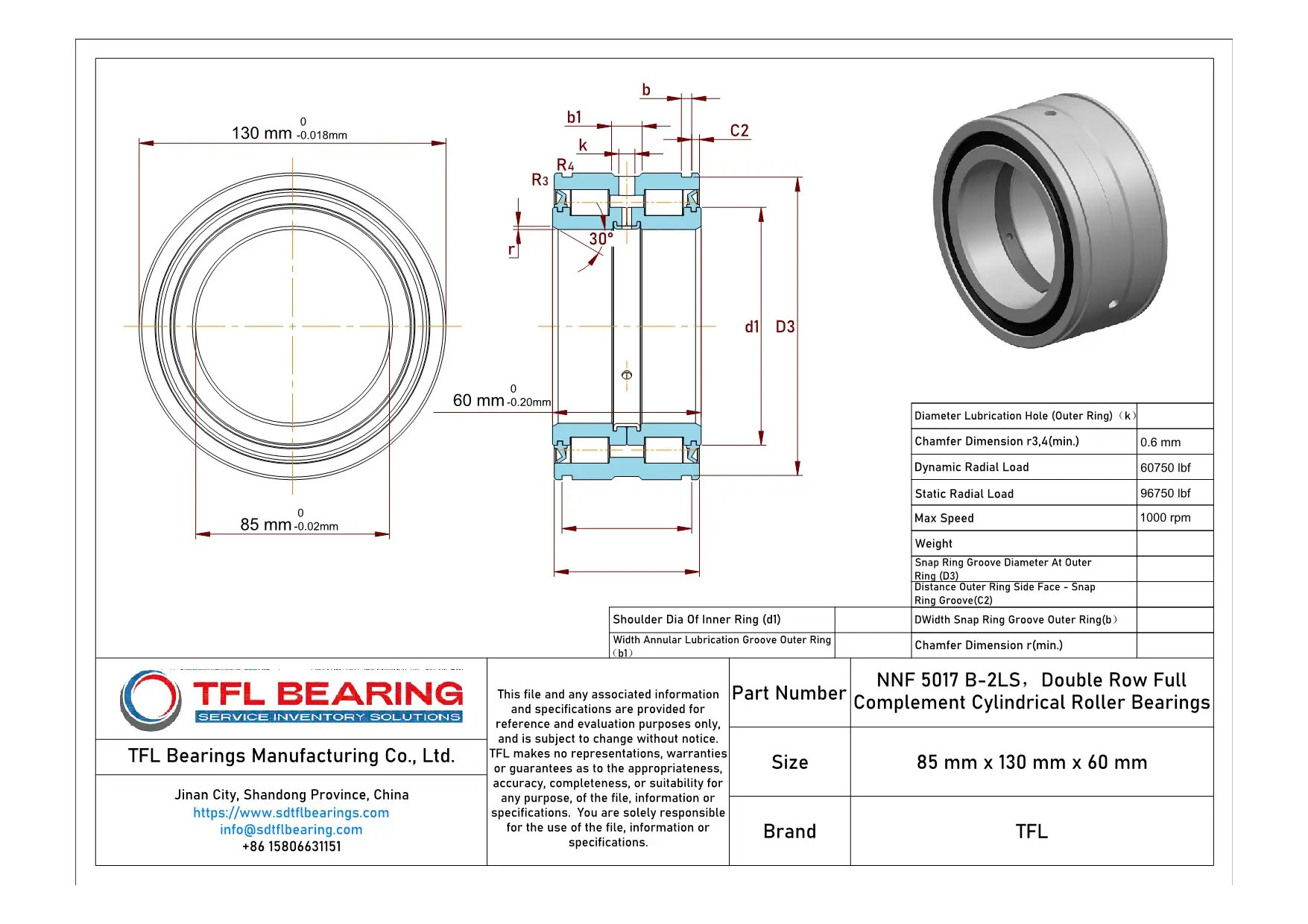

Double Row Full Complement Cylindrical Roller Bearings NNF 5017 B-2LS dimension drawing
Download DWG Download PDF

Features

Performance Features of NNF 5017 B-2LS Bearing

NNF 5017 B-2LS Bearing is built with double-row full complement cylindrical rollers, offering high load capacity for combined radial and axial loads.
Its 52100 chrome steel construction ensures durability and resistance to wear in demanding applications.

The sealed design of NNF 5017 B-2LS Bearing protects against contaminants, making it suitable for harsh environments.
With a dynamic radial load capacity of 60,750 lbf, it handles heavy-duty operations with ease.

NNF 5017 B-2LS Bearing operates smoothly within a temperature range of -30° to 110°C, ensuring reliable performance.
Its full complement roller design eliminates the need for a cage, maximising load distribution and efficiency.

Application

Industrial Uses of NNF 5017 B-2LS Bearing
NNF 5017 B-2LS Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its double-row design handles combined radial and axial loads efficiently. The sealed construction helps keep contaminants out, extending service life in dusty environments.

In automotive applications, NNF 5017 B-2LS Bearing supports components like wheel hubs and drivetrains, offering reliable performance under high loads. Its full-complement roller design ensures maximum load capacity without sacrificing smooth operation.

For automation equipment, NNF 5017 B-2LS Bearing provides stability in robotic arms and precision machinery, thanks to its chrome steel construction. The grease or oil lubrication options make it adaptable to various operating conditions.

In wind turbines, NNF 5017 B-2LS Bearing’s durability and load capacity make it suitable for rotor shafts and yaw systems. The metric sizing ensures compatibility with European-designed equipment.
