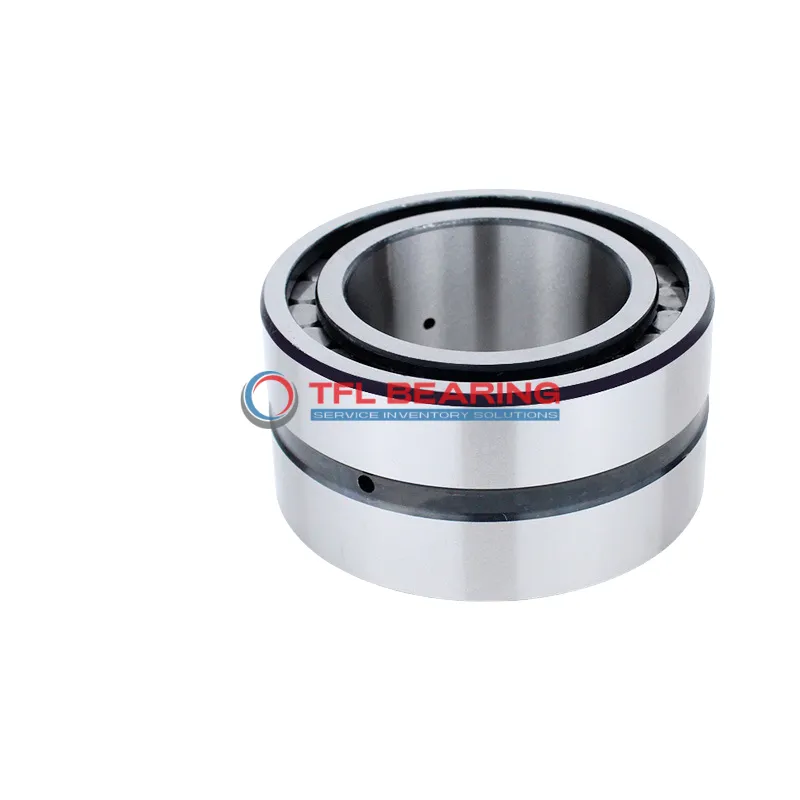

Double Row Full Complement Cylindrical Roller Bearings NNCF 4960 CV

Double Row Full Complement Cylindrical Roller Bearings NNCF 4960 CV

The NNCF 4960 CV is a double row full complement cylindrical roller bearing with a 300mm bore and 420mm outer diameter, built from sturdy chrome steel. It supports heavy radial loads up to 378000 lbf and operates smoothly at speeds up to 1000 RPM.

Its full complement design eliminates the cage, allowing more rollers for higher load capacity. The open seal type simplifies lubrication, whether using grease or oil.

This bearing handles combined loads and axial displacement up to 6mm, making it versatile for tough conditions. It works well in temperatures from -30°C to 110°C.

Ideal for industrial machinery like gearboxes or heavy equipment where high radial loads are common. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF models. Weighing 52.1kg, it’s built for durability in demanding applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NNCF 4960 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 420 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 118 mm
  • Width Tolerance -0.35mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Diameter Inner Ring 340 mm
  • Raceway Diameter Outer Ring 374 mm
  • Width Annular Lubrication Groove Outer Ring 9.4 mm
  • Diameter Lubrication Hole (Outer Ring) 5 mm
  • Chamfer Dimension r1,2(min.) 3 mm
  • Chamfer Dimension r3,4(min.) 3 mm
  • Permissible Axial Displacement(max.) 6 mm
  • Ring Material 52100 Chrome Steel
  • Roller Material 52100 Chrome Steel
  • Cage Material Full complement (no cage)
  • Dynamic Radial Load 378000 lbf
  • Static Radial Load 843750 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 52.1 kg

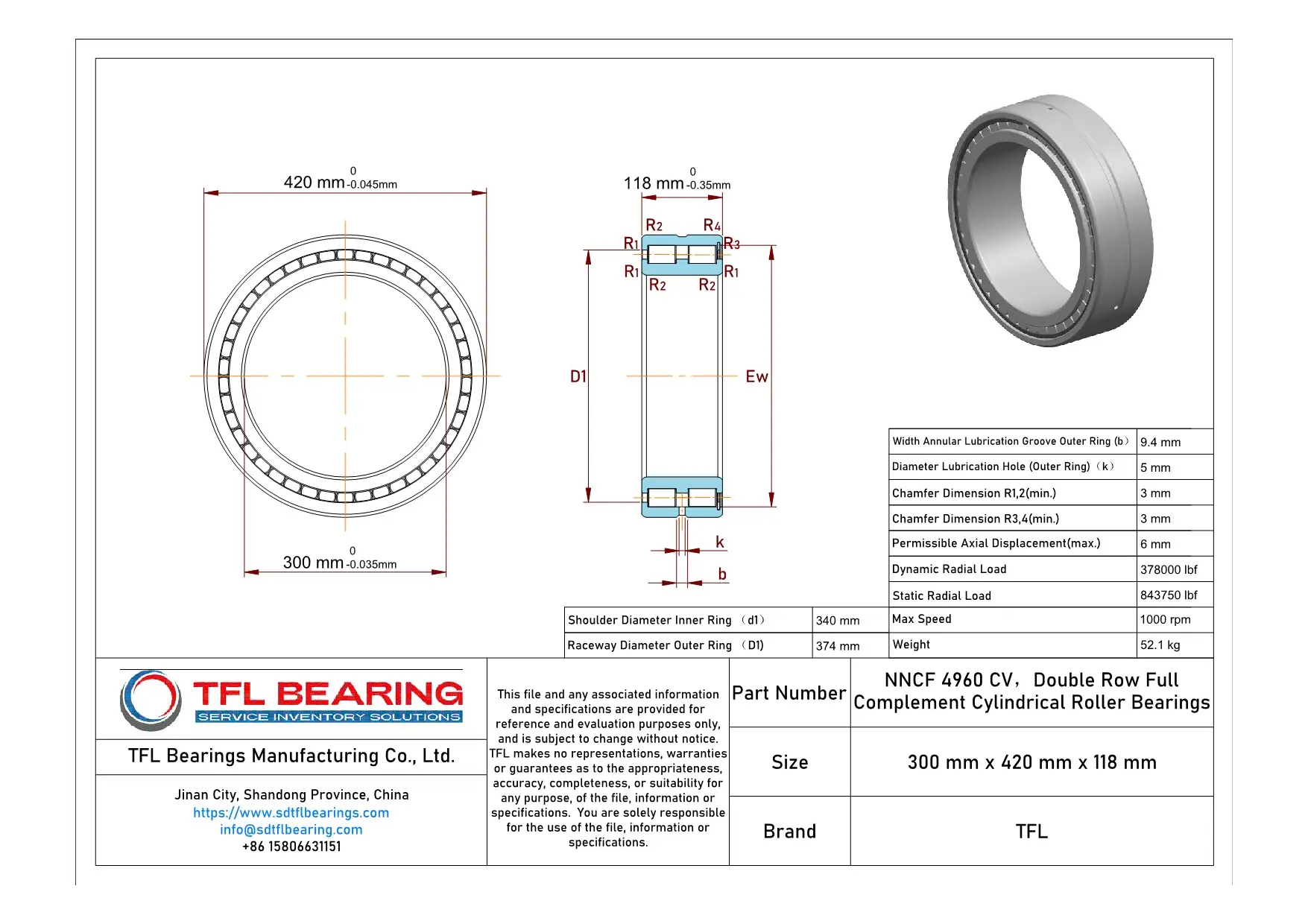

Double Row Full Complement Cylindrical Roller Bearings NNCF 4960 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NNCF 4960 CV Bearing

NNCF 4960 CV Bearing is constructed with double row full complement cylindrical rollers, offering high load capacity and stability.
Its 52100 chrome steel rings and rollers provide excellent resistance to wear and fatigue.
With a dynamic radial load of 378,000 lbf, it handles heavy-duty applications with ease.
The open design allows for easy lubrication, ensuring smooth operation and extended service life.

Application

Industrial Uses of NNCF 4960 CV Bearing
NNCF 4960 CV Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its double-row design handles high radial loads efficiently. The full complement of rollers ensures maximum load capacity without a cage, making it ideal for slow-speed, high-load applications.

Where Is NNCF 4960 CV Bearing Used?
In wind turbines, NNCF 4960 CV Bearing supports the main shaft, providing stability under varying wind conditions. Its chrome steel construction and grease lubrication make it reliable in harsh outdoor environments.

Built for Heavy-Duty Use: NNCF 4960 CV Bearing
NNCF 4960 CV Bearing excels in mining equipment, such as crushers and conveyors, where its robust design withstands extreme loads and vibrations. The open seal type allows for easy maintenance in dusty conditions.

Automotive vs Aerospace: Applications of NNCF 4960 CV Bearing
In automotive manufacturing, NNCF 4960 CV Bearing is found in large presses and stamping machines, handling combined loads with precision. For aerospace, its high static radial load capacity suits ground support equipment like cargo loaders.

Practical Applications of NNCF 4960 CV Bearing
NNCF 4960 CV Bearing is a go-to choice for industrial pumps, where its axial displacement tolerance accommodates thermal expansion. The metric dimensions ensure compatibility with European and Asian machinery standards.
