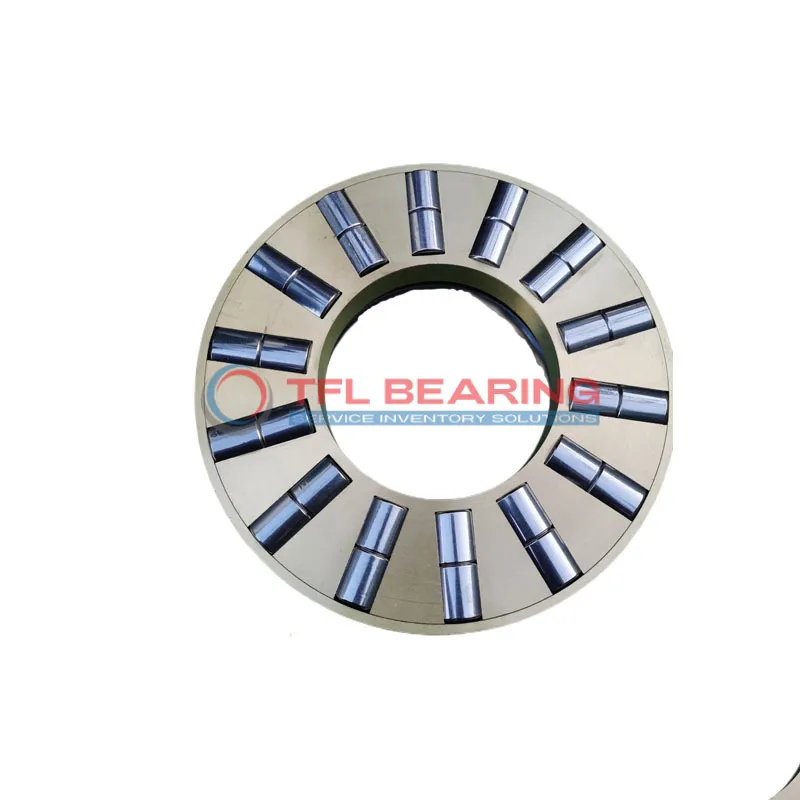

Double Row Cylindrical Roller Thrust Bearings assembly K 89324 M

Double Row Cylindrical Roller Thrust Bearings assembly K 89324 M

The K 89324 M is a double-row cylindrical roller thrust bearing with a 120mm bore and 210mm outer diameter, built to handle heavy loads. Made from chrome steel, it offers strong performance in demanding conditions.

With a dynamic radial load capacity of 114750 lbf, it can withstand significant pressure while rotating smoothly at speeds up to 1500 RPM. The machined brass cage ensures durability and reduces friction.

Its two-row design provides extra stability for thrust applications, making it suitable for heavy machinery or industrial equipment. The bearing operates well in temperatures from -30°C to 110°C.

Weighing 2.64kg, it’s a robust choice for replacements, especially as it’s interchangeable with SKF models. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 89324 M
  • Size 120 mm x 210 mm x 17 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 2
  • Bore Dia 120 mm
  • Bore Dia Tolerance +0.072mm to +0.292mm
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.74mm to -1.46mm
  • Diameter Roller 17 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 132 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 205 mm
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 114750 lbf
  • Static Radial Load 531000 lbf
  • Max Speed 1500 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.64 kg
  • Shaft Washer WS 89324
  • Housing Washer GS 89324

Features

Performance Features of K 89324 M Bearing

K 89324 M Bearing is built with a double-row cylindrical roller design, ideal for handling heavy thrust loads.
Its chrome steel rollers and machined brass cage ensure smooth operation and reduced friction.
The bearing can withstand dynamic radial loads up to 114,750 lbf, making it suitable for demanding applications.
With a maximum speed of 1,500 rpm, it balances performance and durability in industrial settings.

How Does K 89324 M Bearing Resist Wear?

K 89324 M Bearing’s chrome steel rollers and precision-machined brass cage minimise wear during operation.
The double-row design distributes loads evenly, extending the bearing’s service life.
Its robust construction ensures reliable performance even under high static radial loads of 531,000 lbf.
The bearing operates smoothly within a temperature range of -30° to 110 °C.

Designed for Durability: K 89324 M Bearing

K 89324 M Bearing features a durable double-row roller design, optimised for heavy-duty applications.
The machined brass cage enhances stability and reduces friction during high-speed rotation.
With a raceway diameter range of 132 mm to 205 mm, it ensures precise alignment under load.
Its compliance with RoHS and REACH standards makes it an environmentally friendly choice.

Steel vs Ceramic Bearings: Strengths of K 89324 M Bearing

K 89324 M Bearing uses high-quality chrome steel rollers for superior strength and wear resistance.
The machined brass cage provides excellent heat dissipation and reduces operational noise.
Its large bore diameter of 120 mm allows for easy integration into heavy machinery.
The bearing’s static radial load capacity of 531,000 lbf ensures long-term reliability.

Application

Industrial Uses of K 89324 M Bearing
K 89324 M Bearing is commonly used in heavy machinery, such as industrial presses and large conveyor systems, where its double-row design handles significant thrust loads. The machined brass cage ensures smooth operation even under high stress.

Where Is K 89324 M Bearing Used?
In automotive applications, K 89324 M Bearing supports components like heavy-duty transmissions and differential systems. Its chrome steel rollers provide durability, making it suitable for long-term use in demanding conditions.

Built for Heavy-Duty Use: K 89324 M Bearing
K 89324 M Bearing excels in construction equipment, such as cranes and excavators, where its robust design withstands extreme loads. The metric sizing ensures compatibility with a wide range of machinery.

Automotive vs Aerospace: Applications of K 89324 M Bearing
While K 89324 M Bearing is popular in automotive systems, it also finds use in aerospace applications, such as landing gear mechanisms. Its high dynamic load capacity makes it reliable in both fields.

Perfect Fit for Automation: K 89324 M Bearing
K 89324 M Bearing is ideal for automated production lines, where precision and reliability are key. The brass cage reduces friction, ensuring consistent performance in high-speed scenarios.
