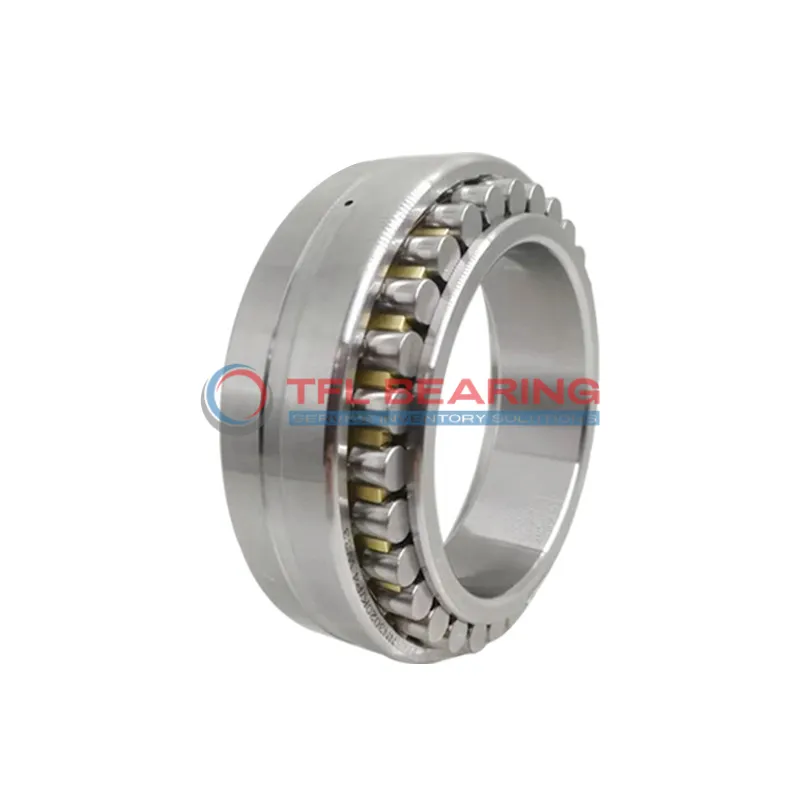

Double Row Cylindrical Roller Bearings BC2B 326064/HA1

Double Row Cylindrical Roller Bearings BC2B 326064/HA1

The BC2B 326064/HA1 is a double-row cylindrical roller bearing with a large bore of 530mm and an outer diameter of 780mm, designed for heavy-duty applications. It handles combined loads with a dynamic radial load capacity of 990,000 lbf and operates smoothly at speeds up to 1000 RPM.

Made from robust materials, this bearing can withstand temperatures from -30°C to 110°C, making it suitable for harsh environments. Its design includes generous chamfers on both inner and outer rings for easier installation and alignment.

The bearing is compatible with SKF models, offering a reliable replacement option. It works well with both grease and oil lubrication, providing flexibility in maintenance. Ideal for use in industrial machinery, such as large gearboxes or heavy presses, where high radial loads are common.

Compliant with RoHS and REACH standards, it ensures safe and environmentally friendly operation. Its substantial size and strength make it a dependable choice for demanding applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BC2B 326064/HA1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 530 mm
  • Outer Dia 780 mm
  • Width 225mm
  • Chamfer Dimension Outer Ring(r1,2)(min.) 6 mm
  • Chamfer Dimension Inner Ring(r3,4)(min.) 20 mm
  • Permissible Axial Displacement(max.) 11.2 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Dynamic Radial Load 990000 lbf
  • Static Radial Load 2137500 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant

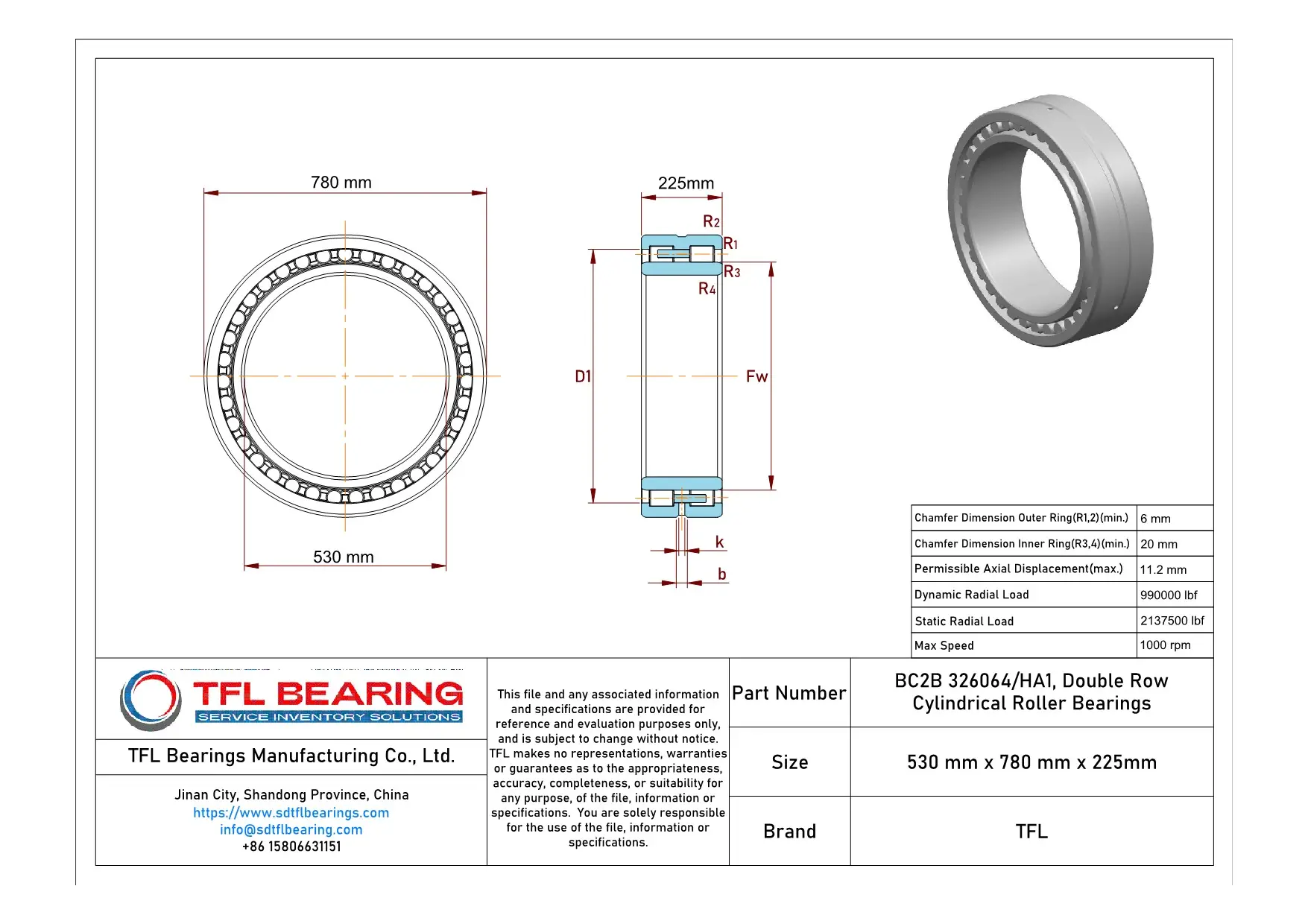

Double Row Cylindrical Roller Bearings BC2B 326064/HA1 dimension drawing
Download DWG Download PDF

Features

How Does BC2B 326064/HA1 Bearing Handle Combined Loads?

BC2B 326064/HA1 Bearing is built with a double-row cylindrical roller design, capable of handling both radial and axial loads efficiently.
Its dynamic radial load capacity reaches 990,000 lbf, making it suitable for heavy-duty industrial applications.

The bearing’s chamfer dimensions and permissible axial displacement of 11.2 mm ensure smooth operation under varying conditions.
With a maximum speed of 1,000 rpm, it balances performance and durability in demanding environments.

BC2B 326064/HA1 Bearing supports both grease and oil lubrication, offering flexibility for different operational needs.
Its temperature range of -30° to 110°C ensures reliable performance in diverse climates.

Application

Industrial Uses of BC2B 326064/HA1 Bearing
BC2B 326064/HA1 Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its double-row design handles both radial and axial loads efficiently. The generous load capacity makes it suitable for high-stress environments.

In wind turbine applications, BC2B 326064/HA1 Bearing supports the main shaft, ensuring smooth rotation even under variable wind loads. Its compatibility with both grease and oil lubrication adds flexibility for maintenance.

For mining equipment, BC2B 326064/HA1 Bearing’s robust construction withstands the harsh conditions of crushers and conveyors. The large bore size accommodates heavy-duty shafts commonly found in this industry.

BC2B 326064/HA1 Bearing also fits well in paper manufacturing machinery, where precision and durability are key. The metric dimensions align with European and Asian industrial standards for easy integration.
