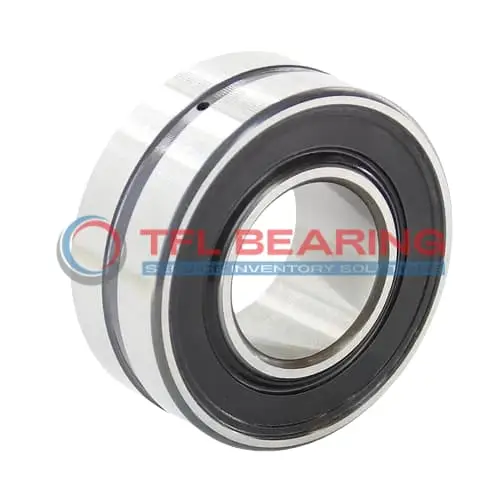

BS2-2213-2CS/VT143 Double Row Spherical Roller Bearing

The BS2-2213-2CS/VT143 is a double-row spherical roller bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 44512 lbf and runs smoothly at speeds up to 2500 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where robust performance is needed.

Weighing 1.6kg, it’s built to handle demanding environments while complying with RoHS and REACH standards. The lubrication groove and holes simplify maintenance, extending its service life.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number BS2-2213-2CS/VT143
Brand TFL
Interchangeable SKF
Size 65 x 120 x 38 mm
Bore Dia 65 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 120 mm
Outer Dia Tolerance -0.015mm to 0
Width 38 mm
Width Tolerance -0.06mm to 0
Shoulder Dia Of Inner Ring 76.5 mm
Shoulder/Recess Dia Of Outer Ring 110 mm
Width Of Lubrication Groove 6 mm
Diameter Of Lubrication Hole 3 mm
Chamfer Dimension min.1.5 mm
System of Measurement Metric
Radial run-out Standard
Bearing Type Roller
Roller Bearing Type Spherical
Bore Type Cylindrical
For Load Direction Combined
Construction Double Row
Seal Type Double Seal
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 44512 lbf
Static Radial Load 48559 lbf
Max Speed 2500 rpm
Lubrication Required
Temperature Range -30° to 200 °C
Radial Clearance CN
RoHs Compliant
REACH Compliant
Weight 1.6 kg

Features

How Does BS2-2213-2CS/VT143 Bearing Handle Combined Loads?

BS2-2213-2CS/VT143 Bearing features a double-row spherical roller design, ideal for handling both radial and axial loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 44512 lbf.

The double-sealed design protects against contaminants, making it suitable for harsh environments.
With a maximum speed of 2500 rpm, it delivers reliable performance under demanding conditions.

BS2-2213-2CS/VT143 Bearing’s lubrication groove and holes ensure smooth operation and extended service life.
Its temperature range of -30° to 200°C allows for use in varied industrial applications.

Application

Industrial Uses of BS2-2213-2CS/VT143 Bearing
BS2-2213-2CS/VT143 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction also compensates for minor misalignments, ensuring smooth operation.

In automotive applications, BS2-2213-2CS/VT143 Bearing supports components such as truck wheel hubs and drivetrains, where durability is key. Its double-sealed design helps keep contaminants out, extending service life in harsh conditions.

For automation systems, BS2-2213-2CS/VT143 Bearing provides reliable performance in robotic arms and conveyor belts. The chrome steel rollers and cage offer excellent wear resistance, even at high speeds.

Where Is BS2-2213-2CS/VT143 Bearing Used?
BS2-2213-2CS/VT143 Bearing is ideal for construction equipment like excavators, where its combined load capacity and temperature resistance are crucial. The lubrication groove ensures consistent performance under heavy use.

In wind turbines, BS2-2213-2CS/VT143 Bearing handles the dynamic loads and misalignments common in rotor shafts. Its metric sizing makes it a versatile choice for global equipment standards.
