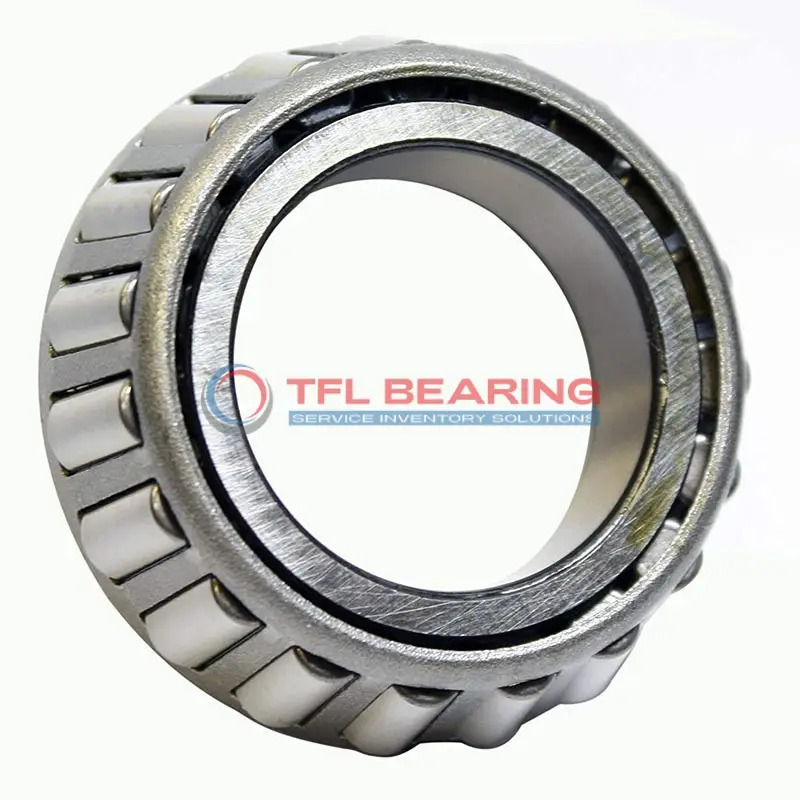

90334 Single Cones (Imperial)

90334 Single Cones (Imperial)

The 90334 single cone is an imperial-sized tapered roller bearing with a 3.3465″ bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 86100 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows easy maintenance, while the steel cage ensures reliable performance under heavy loads. The bearing is interchangeable with Timken models, making it a practical choice for replacements.

Ideal for industrial machinery or automotive applications where combined radial and thrust loads are common. Compliant with RoHS and REACH standards, it offers a balance of strength and durability.

With a standard radial clearance and ABEC-1 rating, it suits general precision needs. The effective center location of 0.41″ helps maintain alignment in demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 90334
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 90334-90744
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 3.3465"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 1.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 4.41"
  • Cone Backface Backing Diameter 4.57"
  • Cage Cone Frontface Clearance 0"
  • Cage Cone Backface Clearance 0.49"
  • Effective Center Location 0.41"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 86100 lbf
  • Static Radial Load 88100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 22300 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 150000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 33100 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 38900 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Why Choose 90334 Single Cones for Combined Loads?

90334 Single Cones are crafted from chrome steel, offering excellent resistance to both radial and thrust loads.

With a dynamic radial load capacity of 86,100 lbf, they handle heavy-duty applications with ease.

The steel cage ensures proper roller alignment, enhancing durability and performance.

Designed for a temperature range of -30° to 110°C, they perform reliably in various conditions.

Application

Industrial Uses of 90334 Single Cones
The 90334 Single Cones are commonly used in heavy machinery, such as construction equipment and mining tools, where their tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

Where Is 90334 Single Cones Used?
You’ll often find 90334 Single Cones in automotive applications like wheel hubs and differential systems, thanks to their ability to manage both radial and thrust loads. The inch sizing makes them a good fit for older or imperial-based machinery.

Built for Heavy-Duty Use: 90334 Single Cones
These cones excel in industrial gearboxes, where their steel cage and open design allow for easy lubrication and maintenance. The standard radial clearance options provide flexibility for different operational needs.

Automotive vs Aerospace: Applications of 90334 Single Cones
In automotive settings, 90334 Single Cones support high-load components like axles, while in aerospace, they’re less common due to weight constraints. Their reliability makes them a go-to for ground-based heavy equipment.

Perfect Fit for Automation: 90334 Single Cones
For automated conveyor systems, 90334 Single Cones offer smooth operation under continuous use. The tapered roller design ensures stability, even with varying load directions.
