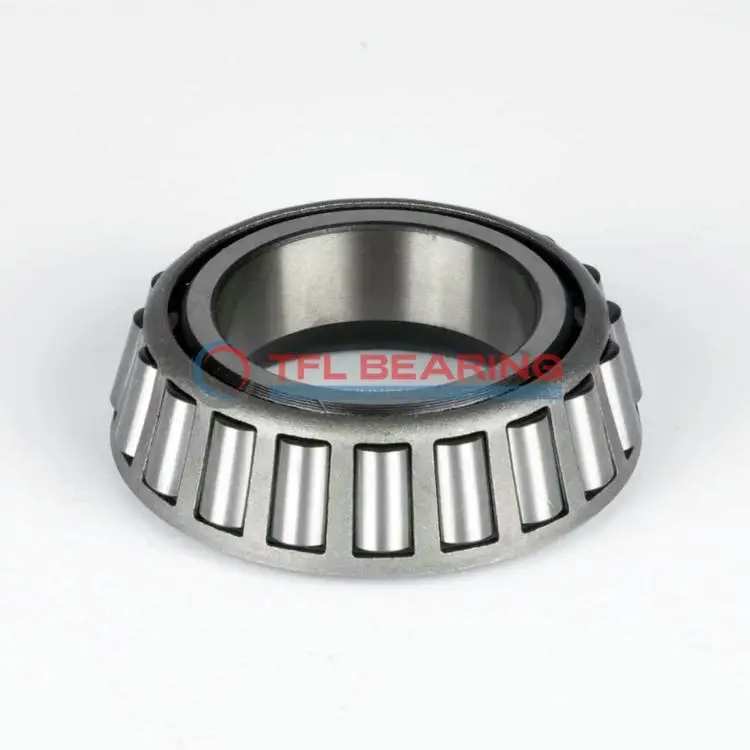

766 Single Cones (Imperial)

766 Single Cones (Imperial)

The 766 single cones are imperial-sized tapered roller bearings with a 3.5″ bore, designed for combined loads. Made from durable chrome steel, they handle radial loads up to 73600 lbf and operate smoothly in temperatures from -30°C to 110°C.

Their open design allows easy maintenance, while the steel cage ensures reliable performance. The cones are part of the 755 series and come in various configurations for different applications.

These bearings are interchangeable with Timken models, making them a practical choice for replacements. Ideal for heavy-duty machinery or industrial equipment where robust performance is needed.

Compliant with RoHS and REACH standards, they offer a balance of strength and longevity. The standard radial clearance can also be adjusted to C3, C4, or C5 for specific requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 766
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 766-752 , 766-752-B , 766-752A , 766-752AA , 766-753 , 766-753A , 766-754W
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 755
  • Bore Dia 3.5"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 1.9"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.28"
  • Cone Frontface Backing Diameter 3.9"
  • Cone Backface Backing Diameter 4.45"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.11"
  • Effective Center Location -0.47"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 73600 lbf
  • Static Radial Load 99200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 19100 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 128000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 11100 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 33200 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 766 Single Cones

766 Single Cones are crafted from chrome steel, offering strong resistance to combined loads.
Their dynamic radial load capacity reaches 73,600 lbf, ensuring reliable performance in tough conditions.

The tapered roller design of 766 Single Cones provides smooth operation and efficient load distribution.
With a standard radial clearance, they are versatile for various industrial applications.

766 Single Cones operate effectively in temperatures ranging from -30° to 110°C.
Their steel cage maintains roller alignment, enhancing durability and reducing wear.

Designed for easy installation, 766 Single Cones save time and reduce maintenance efforts.
They are interchangeable with Timken bearings, offering flexibility in replacement options.

Application

Industrial Uses of 766 Single Cones
766 Single Cones are commonly used in heavy machinery like construction equipment and mining tools, where their tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 766 Single Cones Used?
You’ll find 766 Single Cones in automotive applications such as truck wheel hubs, where their high dynamic radial load capacity supports smooth operation. The inch sizing makes them a fit for many North American vehicles.

Built for Heavy-Duty Use: 766 Single Cones
766 Single Cones excel in industrial gearboxes, providing reliable performance under heavy loads. Their open design allows for easy lubrication, extending service life in high-use scenarios.

Automotive vs Industrial: Applications of 766 Single Cones
In automotive settings, 766 Single Cones are ideal for axle systems, while in industrial plants, they’re often used in conveyor rollers. The steel cage adds strength for both applications.

Key Fields for 766 Single Cones
766 Single Cones are a go-to choice for agricultural machinery, where their standard radial clearance ensures consistent performance. The ABEC-1 rating balances precision and cost-effectiveness.
