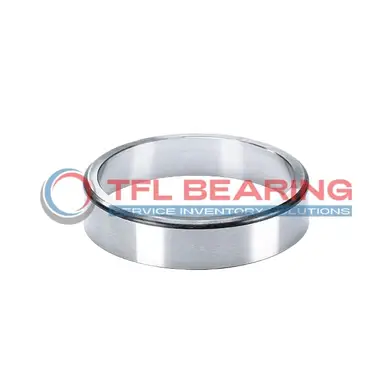

68726 Single Cups (Imperial)

68726 Single Cups (Imperial)

The 68726 is a single cup bearing with a 7.25-inch outer diameter and a width of 1.1406 inches, made from sturdy chrome steel. It fits well with tapered roller bearings and operates smoothly in temperatures from -30°C to 110°C.

Its standard cup design ensures easy installation and compatibility with Timken models, making it a practical choice for replacements. The ABEC-1 rating provides reliable precision for general industrial use.

This cup is part of the 68000 series, known for its durability and consistent performance. Ideal for applications like heavy machinery or automotive systems where tapered roller bearings are needed.

Compliant with RoHS and REACH standards, it’s a safe and environmentally friendly option. Its robust construction handles everyday wear and tear with ease.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 68726
  • Brand TFL
  • Interchangeable Timken
  • Size 6.46" x 7.25" x 1.1406"
  • Outer Dia 7.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.1406"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 6.81"
  • Cup Backface Backing Diameter 6.46"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 68450-68726 , 68462-68726 , 68463-68726
  • Cups Type Standard
  • Series 68000
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 68726 Bearing

68726 Bearing is crafted from chrome steel, offering durability and resistance to wear in various applications.
Its tapered roller design ensures efficient load distribution, enhancing performance under stress.

The outer diameter of 7.25″ with tight tolerance provides precise fit and alignment in assemblies.
With a temperature range of -30° to 110 °C, it performs reliably in diverse environmental conditions.

68726 Bearing is part of the 68000 series, compatible with Timken and other major brands.
Its standard cup type simplifies installation, making it a practical choice for industrial use.

Application

Industrial Uses of 68726 Bearing
The 68726 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural vehicles, where its tapered design handles radial and axial loads efficiently. Its chrome steel construction ensures durability in tough working conditions.

Where Is 68726 Bearing Used?
You’ll often find the 68726 Bearing in industrial gearboxes and conveyor systems, thanks to its reliable performance under high loads. The inch sizing makes it a good fit for machinery following imperial measurement standards.

Built for Heavy-Duty Use: 68726 Bearing
This bearing excels in applications like mining equipment and large-scale manufacturing tools, where its robust design withstands continuous stress. The standard cup type ensures easy installation and maintenance.

Automotive vs Aerospace: Applications of 68726 Bearing
In automotive settings, the 68726 Bearing supports wheel hubs and drivetrains, offering smooth operation. While not typically used in aerospace, its precision makes it suitable for certain ground support equipment.

Perfect Fit for Automation: 68726 Bearing
The 68726 Bearing works well in automated production lines, where its consistent performance reduces downtime. Its compatibility with various tapered roller bearings adds to its versatility in different setups.
