565-563D TDO (Two-Row Double-Outer Race) (Imperial)

565-563D TDO (Two-Row Double-Outer Race) (Imperial)

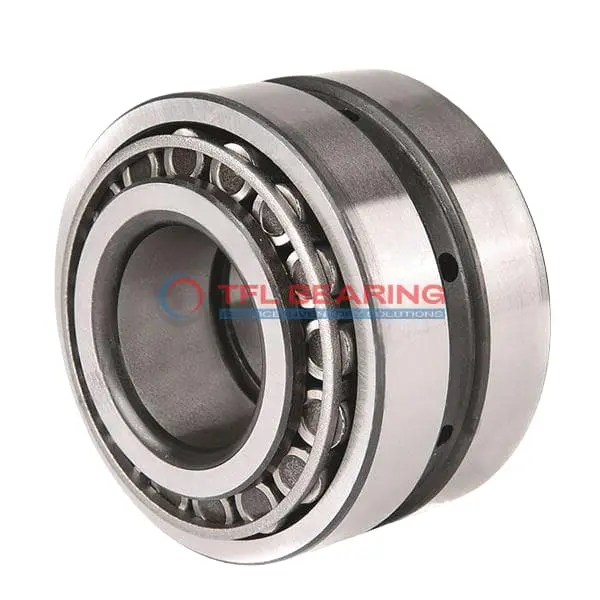

The 565-563D is a double-row tapered roller bearing with a 2.5″ bore and 5″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 76,900 lbf and is designed for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is part of the 565 series, with standard radial clearance and ABEC-1 precision. Ideal for industrial machinery or automotive systems where high radial and thrust loads are common.

Weighing 9.74 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 565-563D
  • Brand TFL
  • Size 2.5" x 5" x 1.424"
  • Bore Dia 2.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5625"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.424"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.1874"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 3.15"
  • Cup Frontface Backing Diameter 4.72"
  • Cage Cone Backface Clearance 0.1"
  • Dynamic Radial Load 76900 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 565
  • Cup Part Number 563D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 7130 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 19900 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 9.74 lb

Features

How Does 565-563D Bearing Handle Combined Loads?

565-563D Bearing features a double-row tapered roller design, making it suitable for combined radial and thrust loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 76,900 lbf.
The standard open design allows for easy lubrication, maintaining performance in various conditions.
With a temperature range of -30° to 110°C, it operates reliably in diverse environments.

What Makes 565-563D Bearing Durable?

565-563D Bearing is built with chrome steel rollers and rings, offering excellent resistance to wear.
The double-row design distributes loads evenly, enhancing its longevity under heavy use.
Its standard radial clearance ensures smooth operation, reducing friction and heat buildup.
The steel cage keeps rollers aligned, preventing misalignment and extending service life.

Engineered for Precision: 565-563D Bearing

565-563D Bearing’s tapered roller design provides precise load distribution, ideal for combined force applications.
With an ABEC-1 rating, it ensures consistent performance in industrial settings.
The double-row construction increases radial load capacity, making it reliable for demanding tasks.
Its standard open type allows for easy maintenance, ensuring long-term efficiency.

Application

Industrial Uses of 565-563D Bearing
565-563D Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its double-row design handles combined radial and thrust loads efficiently. The chrome steel construction ensures durability in tough working conditions.

What Makes 565-563D Bearing a Preferred Choice?
In automotive applications, 565-563D Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 565-563D Bearing
For industrial fans and pumps, 565-563D Bearing offers smooth operation and long service life due to its tapered roller design. The open seal type allows for easy lubrication, reducing maintenance downtime.

Automotive vs Aerospace: Applications of 565-563D Bearing
While 565-563D Bearing is popular in truck axles and heavy vehicles, its precision also suits aerospace landing gear components. The standard radial clearance ensures consistent performance in both fields.

Key Fields for 565-563D Bearing
In agricultural machinery, 565-563D Bearing supports high-load applications like tractor transmissions. The steel cage adds strength, making it suitable for dusty and demanding environments.
