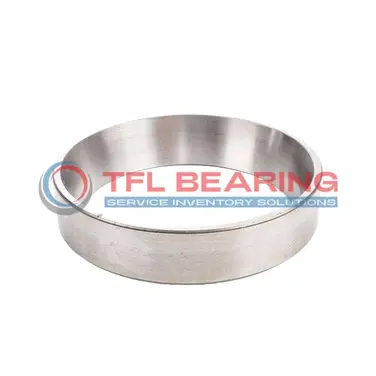

39414X Single Cups (Imperial)

39414X Single Cups (Imperial)

The 39414X is a single cup bearing with a 4.1339″ outer diameter and 0.6299″ width, made from sturdy chrome steel. It fits well in tapered roller bearing assemblies and operates smoothly in temperatures from -30°C to 110°C.

Its standard cup design ensures easy installation and interchangeability with Timken models, making it a practical choice for replacements. The ABEC-1 rating offers reliable precision for general industrial use.

This cup is part of the 39000 series, compatible with bearings like 39236-39414X and 39250-39414X. Ideal for machinery requiring durable tapered roller bearing components, such as automotive or heavy equipment applications.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various industrial needs. The precise tolerances ensure a snug fit and long service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 39414X
  • Brand TFL
  • Interchangeable Timken
  • Size 3.78" x 4.1339" x 0.6299"
  • Outer Dia 4.1339"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.6299"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.08"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.78"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 39236-39414X , 39250-39414X
  • Cups Type Standard
  • Series 39000
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Core Advantages of 39414X Bearing

39414X Bearing is made from chrome steel, offering excellent durability and resistance to wear.
Its tapered roller design ensures efficient load distribution, enhancing performance in various applications.

The standard cup type and ABEC-1 rating provide reliable precision for industrial use.
With a temperature range of -30° to 110°C, it performs well in diverse operating conditions.

39414X Bearing’s interchangeable design with Timken makes it a versatile choice for replacements.
The precise outer diameter and width tolerances ensure a perfect fit in compatible assemblies.

Application

Industrial Uses of 39414X Bearing
39414X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered design handles radial and axial loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 39414X Bearing Used?
You’ll often find 39414X Bearing in automotive applications like wheel hubs and differential systems, thanks to its reliable performance under varying loads. Its inch sizing makes it a good fit for American and British machinery standards.

Built for Heavy-Duty Use: 39414X Bearing
39414X Bearing excels in industrial settings like conveyor systems and mining equipment, where its robust design withstands continuous operation. The standard cup type simplifies installation and maintenance.

Automotive vs Industrial: Applications of 39414X Bearing
In automotive systems, 39414X Bearing supports wheel assemblies, while in industrial settings, it’s ideal for gearboxes and pulley systems. Its ABEC-1 rating ensures consistent performance across different uses.

Perfect Fit for Automation: 39414X Bearing
39414X Bearing works well in automated machinery, such as robotic arms and assembly lines, due to its precise taper roller design. The chrome steel rings provide long-lasting wear resistance.
