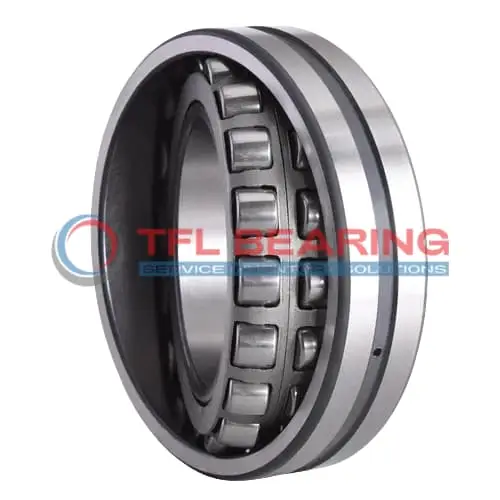

24060 CC/W33 Double Row Spherical Roller Bearing

The 24060 CC/W33 is a double-row spherical roller bearing with a 300mm bore and 460mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 634186 lbf and operates smoothly at speeds up to 1200 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability under heavy loads. The bearing requires lubrication and works in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery like crushers or industrial gearboxes where high radial and axial loads are present.

Weighing 96kg, it’s built for robust performance in demanding conditions. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 24060 CC/W33
Brand TFL
Interchangeable SKF
Size 300 x 460 x 160 mm
Bore Dia 300 mm
Bore Dia Tolerance -0.035mm to 0
Outer Dia 460 mm
Outer Dia Tolerance -0.045mm to 0
Width 160 mm
Width Tolerance -0.1mm to 0
Shoulder Dia Of Inner Ring 331 mm
Shoulder/Recess Dia Of Outer Ring 400 mm
Width Of Lubrication Groove 13.9 mm
Diameter Of Lubrication Hole 7.5 mm
Chamfer Dimension min.4 mm
System of Measurement Metric
Radial run-out Standard
Bearing Type Roller
Roller Bearing Type Spherical
Bore Type Cylindrical
For Load Direction Combined
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 634186 lbf
Static Radial Load 1067842 lbf
Max Speed 1200 rpm
Lubrication Required
Temperature Range -30° to 200 °C
Radial Clearance CN
RoHs Compliant
REACH Compliant
Weight 96 kg
Price （US$） US$3,878.88

Features

Performance Features of 24060 CC/W33 Bearing

24060 CC/W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 634186 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 1200 rpm, it delivers reliable performance in various industrial settings.

24060 CC/W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its steel cage maintains roller alignment, reducing wear and extending service life.

The lubrication groove and hole design in 24060 CC/W33 Bearing ensure consistent lubrication.
This feature helps maintain performance and reduces maintenance requirements over time.

Application

Industrial Uses of 24060 CC/W33 Bearing
The 24060 CC/W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. Its chrome steel construction ensures durability in demanding environments.

In wind turbines, 24060 CC/W33 Bearing supports the main shaft, providing reliable performance under varying wind conditions. The spherical roller design accommodates misalignment, reducing wear over time.

For mining equipment, 24060 CC/W33 Bearing’s robust build withstands extreme loads and harsh conditions. The lubrication groove and hole design make maintenance easier, extending service life in critical applications.

Automotive vs Aerospace: Applications of 24060 CC/W33 Bearing
In large vehicles like trucks and buses, 24060 CC/W33 Bearing is used in drivetrains to manage heavy loads. Its high static radial load capacity ensures stability during long hauls.

Aerospace applications benefit from 24060 CC/W33 Bearing’s ability to handle combined loads in auxiliary systems. The wide temperature range makes it suitable for both ground and flight conditions.

Built for Heavy-Duty Use: 24060 CC/W33 Bearing
The 24060 CC/W33 Bearing excels in steel mills, where it supports rolling mills under intense heat and pressure. Its steel cage and rollers provide consistent performance even in rough conditions.

In paper manufacturing, 24060 CC/W33 Bearing’s spherical rollers adapt to misalignment in drying rollers. This reduces downtime and maintenance costs in continuous production lines.

What Makes 24060 CC/W33 Bearing a Preferred Choice?
For construction equipment like cranes, 24060 CC/W33 Bearing offers reliable load support in boom mechanisms. Its high dynamic radial load capacity ensures safety and efficiency on-site.

In marine applications, 24060 CC/W33 Bearing’s corrosion-resistant materials and lubrication features suit propeller shafts. The bearing’s design handles both radial and thrust loads in saltwater environments.
