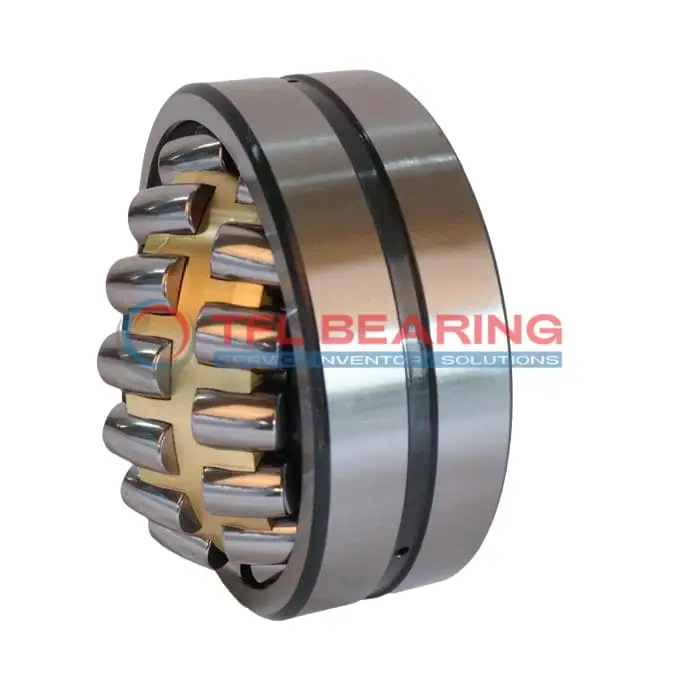

231/600 CAK/W33 Double Row Spherical Roller Bearing

The 231/600 CAK/W33 is a double-row spherical roller bearing with a large 600mm bore and 980mm outer diameter, built from sturdy chrome steel. It manages combined loads up to 2413998 lbf and operates smoothly at speeds up to 560 RPM.

Its brass cage and open design ensure durability, while the tapered bore (1:12) allows for secure fitting. The bearing includes a lubrication groove and hole for easy maintenance.

Suitable for heavy-duty applications like industrial machinery or large gearboxes, it handles temperatures from -30°C to 200°C. Weighing 875kg, it’s robust yet designed for reliable performance.

Compliant with RoHS and REACH standards, this model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for environments requiring high load capacity and stability.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 231/600 CAK/W33
Brand TFL
Interchangeable SKF
Size 600 x 980 x 300 mm
Bore Dia 600 mm
Bore Dia Tolerance +0.07mm to 0
Outer Dia 980 mm
Outer Dia Tolerance -0.1mm to 0
Width 300 mm
Width Tolerance -0.5mm to 0
Shoulder Dia Of Inner Ring 722 mm
Shoulder/Recess Dia Of Outer Ring 863 mm
Width Of Lubrication Groove 22.3 mm
Diameter Of Lubrication Hole 12 mm
Chamfer Dimension min.7.5 mm
System of Measurement Metric
Radial run-out Standard
Bearing Type Roller
Roller Bearing Type Spherical
Bore Type Taper 1:12
For Load Direction Combined
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Brass
Dynamic Radial Load 2413998 lbf
Static Radial Load 4046561 lbf
Max Speed 560 rpm
Lubrication Required
Temperature Range -30° to 200 °C
Radial Clearance CN
RoHs Compliant
REACH Compliant
Weight 875 kg
Price （US$） US$20,910.35

Features

Performance Features of 231/600 CAK/W33 Bearing

231/600 CAK/W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 2,413,998 lbf, ensuring robust performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 560 rpm, it delivers reliable operation under demanding conditions.

231/600 CAK/W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
Its tapered bore design simplifies installation, improving efficiency in industrial settings.

The lubrication groove and holes ensure consistent grease distribution, extending maintenance intervals.
This design reduces downtime and operational costs for long-term use.

Application

Industrial Uses of 231/600 CAK/W33 Bearing
This bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

In wind turbine applications, 231/600 CAK/W33 Bearing supports the main shaft, offering reliability in variable weather conditions. Its tapered bore design simplifies installation and maintenance in remote locations.

For mining equipment, 231/600 CAK/W33 Bearing’s chrome steel construction withstands extreme loads and abrasive environments. The lubrication groove extends service life by ensuring consistent oil distribution.

What Makes 231/600 CAK/W33 Bearing a Preferred Choice?
Its robust design makes it ideal for paper mill machinery, where constant humidity and load fluctuations demand durability. The spherical roller type compensates for minor misalignments.

In steel production plants, 231/600 CAK/W33 Bearing handles the intense heat and heavy loads of rolling mills. The wide temperature range ensures performance stays consistent from -30°C to 200°C.

Built for Heavy-Duty Use: 231/600 CAK/W33 Bearing
This bearing excels in construction equipment like cranes, where its high static load capacity provides stability. The metric sizing ensures compatibility with global machinery standards.

For marine applications, 231/600 CAK/W33 Bearing’s corrosion-resistant materials suit ship propulsion systems. The open seal design allows for easy relubrication during maintenance checks.
