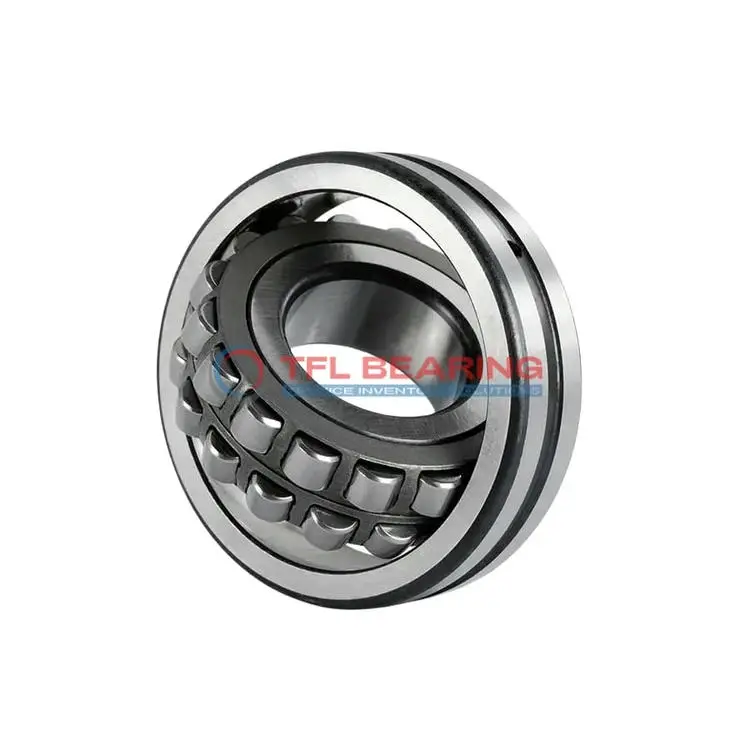

22314 CJ C3 W33 W64H Double Row Spherical Roller Bearing

The 22314 CJ C3 W33 W64H is a double-row spherical roller bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 92846 lbf and operates smoothly at speeds up to 4500 RPM.

Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 4.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 22314 CJ C3 W33 W64H
Brand TFL
Interchangeable SKF
Size 70 x 150 x 51 mm
Bore Dia 70 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 150 mm
Outer Dia Tolerance -0.018mm to 0
Width 51 mm
Width Tolerance -0.06mm to 0
Shoulder Dia Of Inner Ring 90.3 mm
Shoulder/Recess Dia Of Outer Ring 128 mm
Width Of Lubrication Groove 8.3 mm
Diameter Of Lubrication Hole 4.5 mm
Chamfer Dimension min.2.1 mm
System of Measurement Metric
Radial run-out Standard
Bearing Type Roller
Roller Bearing Type Spherical
Bore Type Cylindrical
For Load Direction Combined
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 92846 lbf
Static Radial Load 96668 lbf
Max Speed 4500 rpm
Lubrication Required
Temperature Range -30° to 200 °C
Radial Clearance C3
RoHs Compliant
REACH Compliant
Weight 4.3 kg
Price （US$） 103.14

Features

Performance Features of 22314 CJ C3 W33 W64H Bearing

22314 CJ C3 W33 W64H Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 92,846 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 4,500 rpm, it delivers both durability and efficiency.

22314 CJ C3 W33 W64H Bearing operates in temperatures from -30° to 200°C, adapting to various environments.
The C3 radial clearance allows for thermal expansion, enhancing performance under load.

Steel cage construction maintains roller alignment, reducing wear and extending service life.
Its lubrication groove and holes ensure consistent lubrication, lowering maintenance needs.

Application

Industrial Uses of 22314 CJ C3 W33 W64H Bearing
22314 CJ C3 W33 W64H Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads effortlessly. The spherical roller construction also compensates for minor misalignments, ensuring smooth operation in tough conditions.

What Makes 22314 CJ C3 W33 W64H Bearing a Preferred Choice?
In mining equipment, 22314 CJ C3 W33 W64H Bearing excels due to its robust chrome steel construction and high dynamic load capacity. The lubrication groove and holes make maintenance straightforward, even in dusty environments.

Perfect Fit for Automation: 22314 CJ C3 W33 W64H Bearing
For conveyor systems in manufacturing plants, 22314 CJ C3 W33 W64H Bearing offers reliable performance with its C3 radial clearance, accommodating thermal expansion during continuous operation. Its steel cage adds durability for long-term use.

Automotive vs Aerospace: Applications of 22314 CJ C3 W33 W64H Bearing
In automotive drivetrains, 22314 CJ C3 W33 W64H Bearing supports heavy loads in gearboxes, while its high-temperature tolerance makes it suitable for aerospace auxiliary systems. The metric sizing ensures compatibility across industries.

Where Is 22314 CJ C3 W33 W64H Bearing Used?
22314 CJ C3 W33 W64H Bearing is ideal for wind turbine gearboxes, where its combined load capacity and lubrication features extend service life. The open design allows for easy inspection and re-greasing in remote installations.
