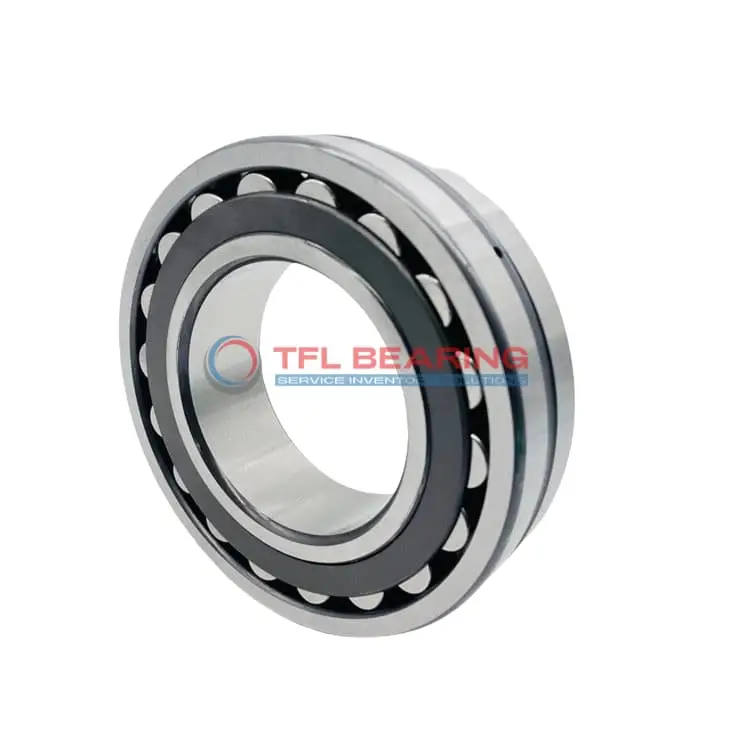

22217 CKJ F4 W33 Double Row Spherical Roller Bearing

22217 CKJ F4 W33 Double Row Spherical Roller Bearing

The 22217 CKJ F4 W33 is a double-row spherical roller bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 65419 lbf and operates smoothly at speeds up to 5600 RPM.

Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing performs reliably in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where robust performance is needed.

Weighing 2.7kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards. The tapered bore design ensures a secure fit on shafts.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22217 CKJ F4 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 85 x 150 x 36 mm
  • Bore Dia 85 mm
  • Bore Dia Tolerance +0.035mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 36 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 101 mm
  • Shoulder/Recess Dia Of Outer Ring 133 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 65419 lbf
  • Static Radial Load 73063 lbf
  • Max Speed 5600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 2.7 kg
  • Price （US$） 59.58

Features

Performance Features of 22217 CKJ F4 W33 Bearing

22217 CKJ F4 W33 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 65419 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 5600 rpm, it balances durability and efficiency in demanding conditions.

22217 CKJ F4 W33 Bearing operates in temperatures from -30° to 200°C, making it suitable for varied environments.
The lubrication groove and hole design ensure consistent performance, even under continuous use.

Application

Industrial Uses of 22217 CKJ F4 W33 Bearing
22217 CKJ F4 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The tapered bore ensures a secure fit, reducing slippage during high-load operations.

What Makes 22217 CKJ F4 W33 Bearing a Preferred Choice?
In mining equipment, 22217 CKJ F4 W33 Bearing’s spherical rollers compensate for misalignment, extending service life in harsh conditions. Its steel cage and chrome steel construction offer durability under extreme temperatures and heavy loads.

Perfect Fit for Automation: 22217 CKJ F4 W33 Bearing
For conveyor systems in manufacturing plants, 22217 CKJ F4 W33 Bearing provides smooth operation with minimal maintenance. The lubrication groove design ensures consistent performance, even in continuous-use scenarios.

Automotive vs Aerospace: Applications of 22217 CKJ F4 W33 Bearing
In truck wheel hubs, 22217 CKJ F4 W33 Bearing supports heavy loads, while its high-speed capability makes it suitable for aircraft auxiliary systems. The metric sizing ensures compatibility across global standards.

Where Is 22217 CKJ F4 W33 Bearing Used?
You’ll find 22217 CKJ F4 W33 Bearing in wind turbines, where its ability to handle misalignment and high loads is crucial. The open design allows for easy relubrication, reducing downtime in remote installations.
