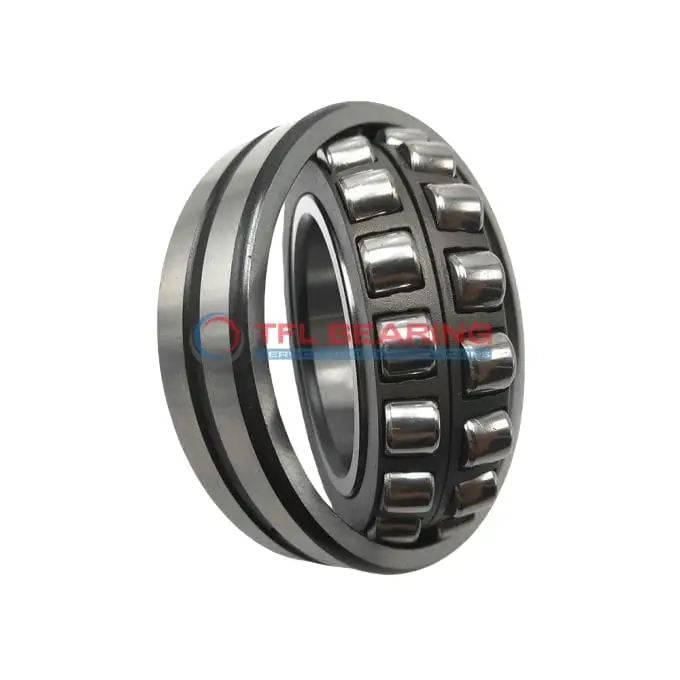

22213 CKW Double Row Spherical Roller Bearing

22213 CKW Double Row Spherical Roller Bearing

The 22213 CKW is a double-row spherical roller bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 44512 lbf and runs smoothly at speeds reaching 7000 RPM.

Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing operates reliably in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where robust performance is needed.

Weighing 1.55kg, it balances strength and practicality. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22213 CKW
  • Brand TFL
  • Interchangeable SKF
  • Size 65 x 120 x 31 mm
  • Bore Dia 65 mm
  • Bore Dia Tolerance +0.03mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 80.1 mm
  • Shoulder/Recess Dia Of Outer Ring 106 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44512 lbf
  • Static Radial Load 48559 lbf
  • Max Speed 7000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.55 kg
  • Price （US$） 32.4

Features

Performance Features of 22213 CKW Bearing

22213 CKW Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44512 lbf, ensuring steady performance in tough conditions.

The double-row spherical roller design helps accommodate misalignment, reducing stress on the bearing.
With a maximum speed of 7000 rpm, it maintains efficiency without compromising durability.

22213 CKW Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The steel cage keeps rollers aligned, enhancing stability and extending service life.

Application

Industrial Uses of 22213 CKW Bearing
22213 CKW Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads with ease. The spherical roller type adapts well to misalignment, making it reliable in rugged environments.

Where Is 22213 CKW Bearing Used?
You’ll often spot 22213 CKW Bearing in conveyor systems and industrial fans, thanks to its high dynamic radial load capacity. Its tapered bore ensures a secure fit, reducing slippage during high-speed operations.

Built for Heavy-Duty Use: 22213 CKW Bearing
22213 CKW Bearing excels in mining equipment, where its chrome steel construction withstands extreme conditions. The open design simplifies lubrication, keeping performance consistent even under heavy stress.

Automotive vs Aerospace: Applications of 22213 CKW Bearing
In automotive gearboxes, 22213 CKW Bearing manages combined loads efficiently, while its high-temperature tolerance suits aerospace applications. The metric sizing ensures compatibility across diverse machinery.

Perfect Fit for Automation: 22213 CKW Bearing
22213 CKW Bearing is ideal for robotic arms and automated assembly lines, offering smooth rotation under varying loads. Its steel cage enhances durability, making it a go-to for repetitive motion tasks.
