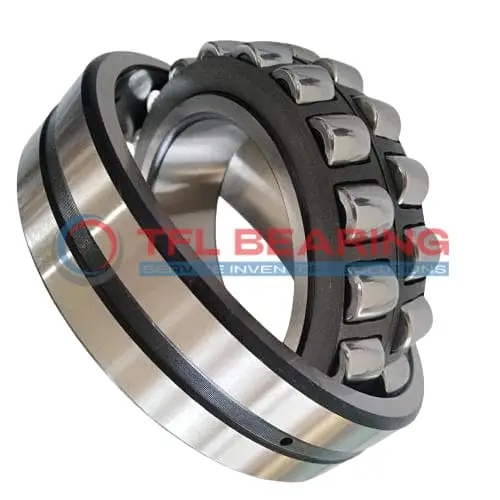

22213 CCK C3 W33 W64B Double Row Spherical Roller Bearing

The 22213 CCK C3 W33 W64B is a double-row spherical roller bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 44512 lbf and operates smoothly at speeds up to 7000 RPM.

Its open design and tapered bore ensure easy installation, while the steel cage provides durability. The bearing includes lubrication grooves and holes for easy maintenance.

This model is compatible with SKF bearings, making it a practical replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

With a weight of 1.55kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 200°C.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 22213 CCK C3 W33 W64B
Brand TFL
Interchangeable SKF
Size 65 x 120 x 31 mm
Bore Dia 65 mm
Bore Dia Tolerance +0.03mm to 0
Outer Dia 120 mm
Outer Dia Tolerance -0.015mm to 0
Width 31 mm
Width Tolerance -0.06mm to 0
Shoulder Dia Of Inner Ring 80.1 mm
Shoulder/Recess Dia Of Outer Ring 106 mm
Width Of Lubrication Groove 6 mm
Diameter Of Lubrication Hole 3 mm
Chamfer Dimension min.1.5 mm
System of Measurement Metric
Radial run-out Standard
Bearing Type Roller
Roller Bearing Type Spherical
Bore Type Taper 1:12
For Load Direction Combined
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 44512 lbf
Static Radial Load 48559 lbf
Max Speed 7000 rpm
Lubrication Required
Temperature Range -30° to 200 °C
Radial Clearance C3
RoHs Compliant
REACH Compliant
Weight 1.55 kg
Price （US$） 64.26

Features

Performance Features of 22213 CCK C3 W33 W64B Bearing

22213 CCK C3 W33 W64B Bearing is designed with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44512 lbf, ensuring reliable performance in demanding conditions.

The double-row spherical roller design allows for slight misalignment, reducing stress and wear.
With a maximum speed of 7000 rpm, it balances durability and efficiency in high-speed applications.

22213 CCK C3 W33 W64B Bearing operates in temperatures from -30° to 200 °C, making it suitable for varied environments.
The steel cage maintains roller alignment, enhancing stability and extending service life.

Lubrication grooves and holes in 22213 CCK C3 W33 W64B Bearing ensure consistent lubrication, reducing maintenance needs.
Its C3 radial clearance provides optimal performance under heavy loads and thermal expansion.

The tapered bore design of 22213 CCK C3 W33 W64B Bearing simplifies installation and ensures secure fitting.
Weighing 1.55 kg, it combines robust construction with manageable handling.

Application

Industrial Uses of 22213 CCK C3 W33 W64B Bearing
22213 CCK C3 W33 W64B Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction allows for slight misalignment, making it ideal for rugged industrial environments.

Where Is 22213 CCK C3 W33 W64B Bearing Used?
In mining equipment, 22213 CCK C3 W33 W64B Bearing provides reliable performance under extreme conditions, thanks to its high dynamic load capacity. The lubrication groove ensures smooth operation even in dusty or high-temperature settings.

Built for Heavy-Duty Use: 22213 CCK C3 W33 W64B Bearing
This bearing excels in construction machinery, such as cranes and excavators, where its robust chrome steel construction withstands heavy loads. The tapered bore design ensures a secure fit, reducing slippage during operation.

Automotive vs Aerospace: Applications of 22213 CCK C3 W33 W64B Bearing
In automotive applications, 22213 CCK C3 W33 W64B Bearing supports drivetrain components, offering durability under combined loads. For aerospace, its high-speed capability and temperature resistance make it suitable for auxiliary systems.

Perfect Fit for Automation: 22213 CCK C3 W33 W64B Bearing
In robotic arms and automated production lines, 22213 CCK C3 W33 W64B Bearing ensures precise movement with minimal friction. The open design allows for easy lubrication, extending service life in continuous operation.
