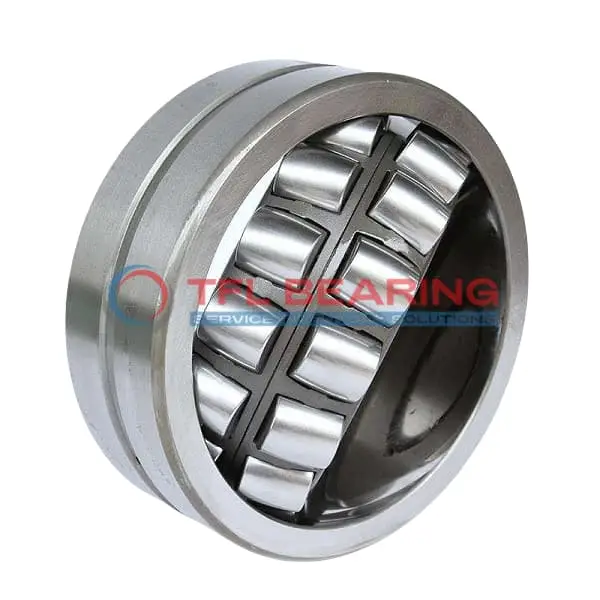

22208 CC Double Row Spherical Roller Bearing

The 22208 CC is a double-row spherical roller bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22144 lbf and spins smoothly at speeds up to 11000 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates well in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where combined loads are common.

Weighing 0.53kg, it offers a robust yet manageable size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 22208 CC
Brand TFL
Interchangeable SKF
Size 40 x 80 x 23 mm
Bore Dia 40 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 80 mm
Outer Dia Tolerance -0.013mm to 0
Width 23 mm
Width Tolerance -0.06mm to 0
Shoulder Dia Of Inner Ring 49.6 mm
Shoulder/Recess Dia Of Outer Ring 69.4 mm
Width Of Lubrication Groove 6 mm
Diameter Of Lubrication Hole 3 mm
Chamfer Dimension min.1.1 mm
System of Measurement Metric
Radial run-out Standard
Bearing Type Roller
Roller Bearing Type Spherical
Bore Type Cylindrical
For Load Direction Combined
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 22144 lbf
Static Radial Load 20233 lbf
Max Speed 11000 rpm
Lubrication Required
Temperature Range -30° to 200 °C
Radial Clearance CN
RoHs Compliant
REACH Compliant
Weight 0.53 kg
Price （US$） 24.3

Features

Performance Features of 22208 CC Bearing

22208 CC Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22144 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 11,000 rpm, it delivers both durability and high-speed efficiency.

22208 CC Bearing operates in temperatures from -30° to 200°C, making it suitable for varied environments.
The steel cage maintains roller alignment, enhancing longevity and reducing maintenance needs.

Application

Industrial Uses of 22208 CC Bearing
The 22208 CC Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently.
Its spherical roller construction allows for slight misalignment, making it ideal for rugged industrial environments.

Where Is 22208 CC Bearing Used?
You’ll often find the 22208 CC Bearing in conveyor systems and gearboxes, where its high dynamic load capacity ensures reliable performance.
The open seal design simplifies lubrication, which is essential for continuous operation in demanding settings.

Built for Heavy-Duty Use: 22208 CC Bearing
The 22208 CC Bearing excels in mining equipment, thanks to its chrome steel rollers and robust steel cage.
Its wide temperature range (-30° to 200°C) makes it suitable for both hot and cold working conditions.

Automotive vs Aerospace: Applications of 22208 CC Bearing
In automotive applications, the 22208 CC Bearing supports drivetrain components, offering durability under combined loads.
For aerospace, its high-speed capability (up to 11000 rpm) and precision make it a reliable choice for auxiliary systems.

Perfect Fit for Automation: 22208 CC Bearing
The 22208 CC Bearing is a go-to for robotic arms and automated assembly lines, where smooth rotation is critical.
Its metric sizing ensures compatibility with a wide range of European and Asian machinery designs.
