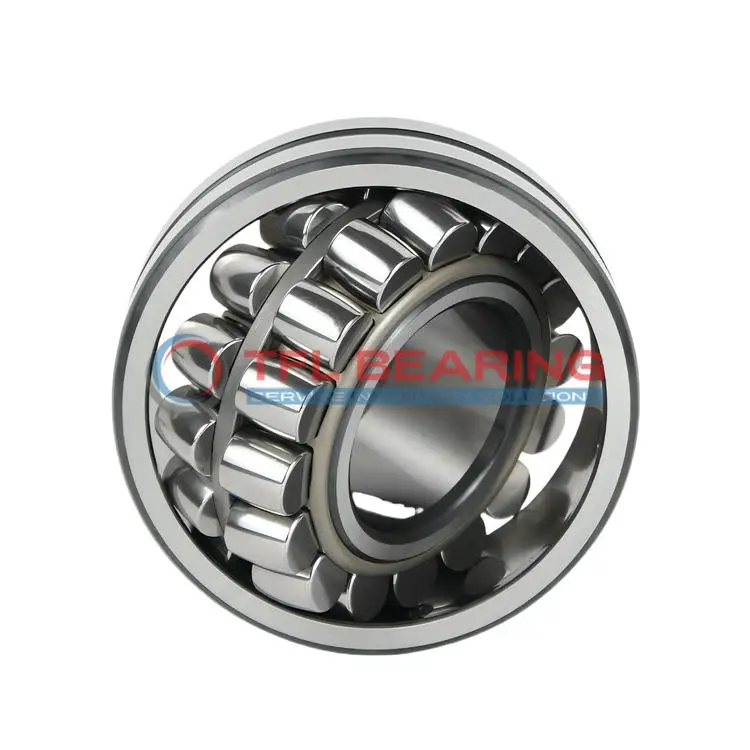

22207 E/C5 Double Row Spherical Roller Bearing

22207 E/C5 Double Row Spherical Roller Bearing

The 22207 E/C5 is a double-row spherical roller bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 19963 lbf and reaches speeds of 12000 RPM.

Its open design and C5 radial clearance allow for smooth operation, while the steel cage ensures durability. The bearing requires lubrication and works in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment.

Weighing 0.44kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22207 E/C5
  • Brand TFL
  • Interchangeable SKF
  • Size 35 x 72 x 23 mm
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 44.5 mm
  • Shoulder/Recess Dia Of Outer Ring 61.8 mm
  • Width Of Lubrication Groove 3.7 mm
  • Diameter Of Lubrication Hole 2 mm
  • Chamfer Dimension min.1.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 19963 lbf
  • Static Radial Load 19109 lbf
  • Max Speed 12000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C5
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.44 kg

Features

Performance Features of 22207 E/C5 Bearing

22207 E/C5 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 19963 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design allows for smooth operation even under misalignment conditions.
With a maximum speed of 12,000 rpm, it delivers reliable performance in high-speed environments.

22207 E/C5 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its C5 radial clearance ensures optimal performance under varying thermal conditions.

The steel cage maintains roller alignment, reducing friction and extending the bearing’s lifespan.
Lubrication grooves and holes facilitate easy maintenance, ensuring consistent performance.

Application

Industrial Uses of 22207 E/C5 Bearing
The 22207 E/C5 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. Its high dynamic load capacity ensures reliable performance in demanding environments.

Where Is 22207 E/C5 Bearing Used?
You’ll often find 22207 E/C5 Bearing in conveyor systems and industrial fans, thanks to its spherical roller design that accommodates misalignment. The C5 radial clearance makes it suitable for applications with thermal expansion.

Built for Heavy-Duty Use: 22207 E/C5 Bearing
This bearing excels in mining equipment, where its chrome steel construction withstands harsh conditions. The open seal design allows for easy lubrication, extending its service life in high-speed operations.

Automotive vs Aerospace: Applications of 22207 E/C5 Bearing
In automotive drivetrains, 22207 E/C5 Bearing supports heavy loads, while in aerospace, its temperature range suits auxiliary systems. The steel cage ensures durability in both sectors.

Perfect Fit for Automation: 22207 E/C5 Bearing
Robotic arms benefit from 22207 E/C5 Bearing’s ability to handle combined loads smoothly. Its metric sizing ensures compatibility with standard automation components.
