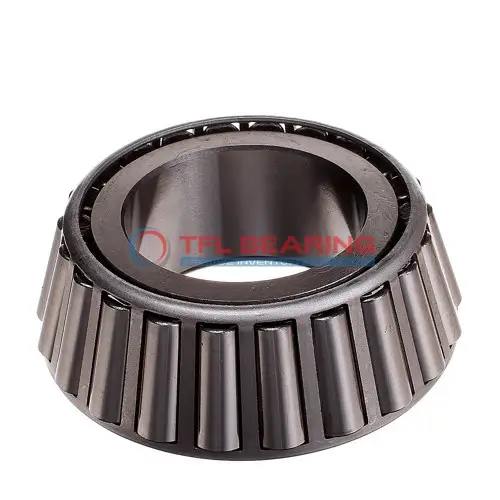

14118 Single Cones (Imperial)

14118 Single Cones (Imperial)

The 14118 single cone is a tapered roller bearing with a 1.1811-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 12300 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its single-row construction and open design make it easy to maintain, while the steel cage ensures reliable performance. The bearing is compatible with various Timken models, offering flexibility for replacements.

With an ABEC-1 rating and standard radial clearance, it’s a practical choice for industrial machinery or automotive applications. The cone’s effective centre location and clearances help with precise alignment.

Compliant with RoHS and REACH standards, it’s a safe and robust option for demanding environments. Ideal for use in gearboxes, axles, or heavy equipment where combined loads are common.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 14118
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 14118-14272 , 14118-14273 , 14118-14274 , 14118-14274A , 14118-14276 , 14118-14277 , 14118-14282 , 14118-14283 , 14118-14284 , 14118-14299 , 14118-14276-B
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 14000
  • Bore Dia 1.1811"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.756"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.44"
  • Cone Backface Backing Diameter 1.46"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.17"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 12300 lbf
  • Static Radial Load 13900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3180 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 21400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2080 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 5540 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 14118 Single Cones

14118 Single Cones are crafted from chrome steel, offering robust resistance to combined loads.
Their dynamic radial load capacity reaches 12,300 lbf, ensuring reliable performance in tough conditions.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a standard radial clearance, they adapt well to various industrial applications.

Designed for temperatures from -30° to 110°C, 14118 Single Cones perform consistently in diverse environments.
Their ABEC-1 rating ensures dependable precision for general-purpose use.

Application

Key Fields for 14118 Single Cones
14118 Single Cones are widely used in industrial machinery, especially in heavy-duty equipment like conveyor systems and gearboxes. Their tapered roller design handles combined loads efficiently, making them reliable for continuous operation.

In automotive applications, 14118 Single Cones are often found in wheel hubs and differential systems. The inch sizing ensures compatibility with many American and British vehicle models, while the chrome steel construction offers long-lasting performance.

For construction equipment, 14118 Single Cones provide stability in components like excavator bearings. The open seal design allows for easy lubrication, which is essential in dusty or high-load environments.

Where Is 14118 Single Cones Used?
You’ll often spot 14118 Single Cones in agricultural machinery, such as tractor transmissions. Their robust steel cage and tapered rollers handle the uneven loads typical in farming applications.

Another common use is in railway axle boxes, where 14118 Single Cones manage both radial and thrust loads. The ABEC-1 rating ensures consistent performance even under varying speeds and conditions.

Built for Heavy-Duty Use: 14118 Single Cones
14118 Single Cones excel in mining equipment, where durability is key. Their chrome steel rings and standard radial clearance withstand harsh conditions without frequent maintenance.

They’re also a go-to choice for marine applications, like propeller shafts. The temperature range of -30° to 110°C ensures reliability in both cold and warm environments.

Automotive vs Aerospace: Applications of 14118 Single Cones
In automotive systems, 14118 Single Cones are trusted for drivetrain components due to their dynamic load capacity. The steel cage keeps everything running smoothly even under stress.

For aerospace ground support equipment, these cones offer precision in load handling. Their inch measurements align well with many international standards, simplifying replacements.
