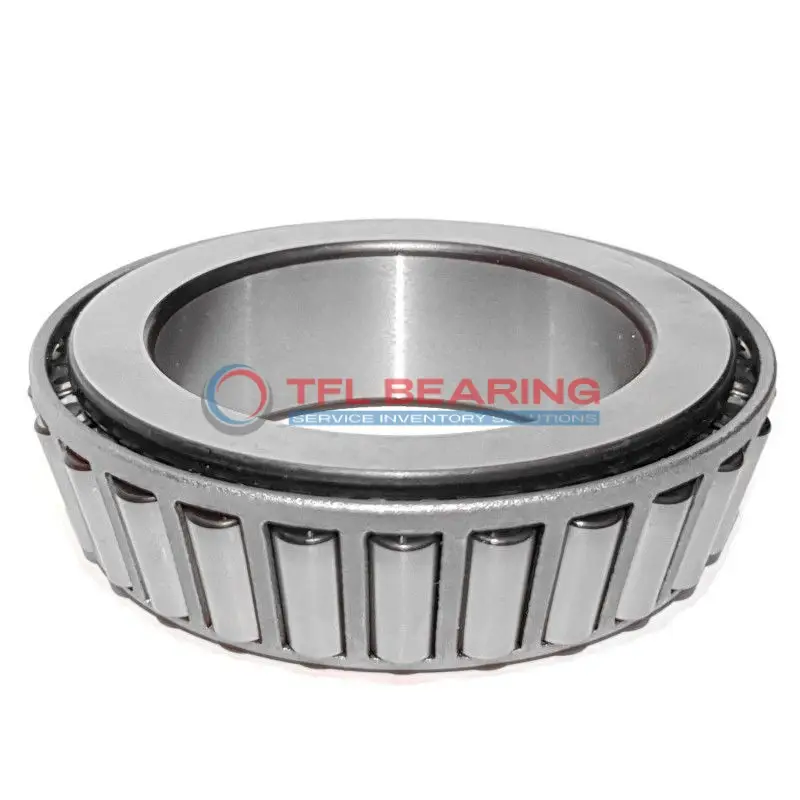

05066 Single Cones (Imperial)

05066 Single Cones (Imperial)

The 05066 single cone is a tapered roller bearing with a 0.669″ bore, designed for combined loads and made from durable chrome steel. It handles dynamic radial loads up to 6010 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The bearing is part of the 5000 series and is interchangeable with Timken models, making it a practical choice for replacements.

With a standard radial clearance (also available in C3/C4/C5), it suits various industrial applications. Ideal for machinery where both radial and thrust loads are present, such as gearboxes or wheel hubs.

Compliant with RoHS and REACH standards, it’s a safe and versatile option for many engineering needs. The compact design (0.5662″ width) fits well in tight spaces without sacrificing strength.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 05066
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 05066-05175 , 05066-05185 , 05066-05185A , 05066-05186 , 05066-05185-B
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 5000
  • Bore Dia 0.669"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.5662"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 0.87"
  • Cone Backface Backing Diameter 0.96"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance -0.01"
  • Effective Center Location -0.16"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 6010 lbf
  • Static Radial Load 5720 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 1560 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 10500 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 952 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 2710 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 05066 Single Cones

05066 Single Cones are crafted from chrome steel, offering strong resistance to combined loads.
Their dynamic radial load capacity reaches 6010 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing wear and extending service life.
With a temperature range of -30° to 110°C, they perform well in diverse environments.

05066 Single Cones come with standard radial clearance, available in C3/C4/C5 options for flexibility.
Their ABEC-1 rating ensures consistent precision for industrial use.

Application

Industrial Uses of 05066 Single Cones
05066 Single Cones are commonly used in heavy machinery like construction equipment and agricultural gear, where their tapered roller design handles combined loads efficiently. The open seal type allows for easy lubrication, extending service life in dusty environments.

Where Is 05066 Single Cones Used?
You’ll often find 05066 Single Cones in automotive wheel hubs and industrial gearboxes, thanks to their robust chrome steel construction. Their inch sizing makes them a go-to choice for machinery requiring imperial measurements.

Built for Heavy-Duty Use: 05066 Single Cones
05066 Single Cones excel in applications like mining conveyors, where their dynamic radial load capacity ensures reliable performance. The steel cage adds durability, making them suitable for high-stress conditions.

Automotive vs Industrial: Applications of 05066 Single Cones
In automotive settings, 05066 Single Cones support wheel bearings, while in industrial contexts, they’re ideal for pumps and compressors. Their temperature range and ABEC-1 rating balance performance and affordability.

Key Fields for 05066 Single Cones
05066 Single Cones are a fit for railcar axles and wind turbine gearboxes, where their tapered rollers manage radial and thrust loads. The standard radial clearance offers flexibility for various operational needs.
