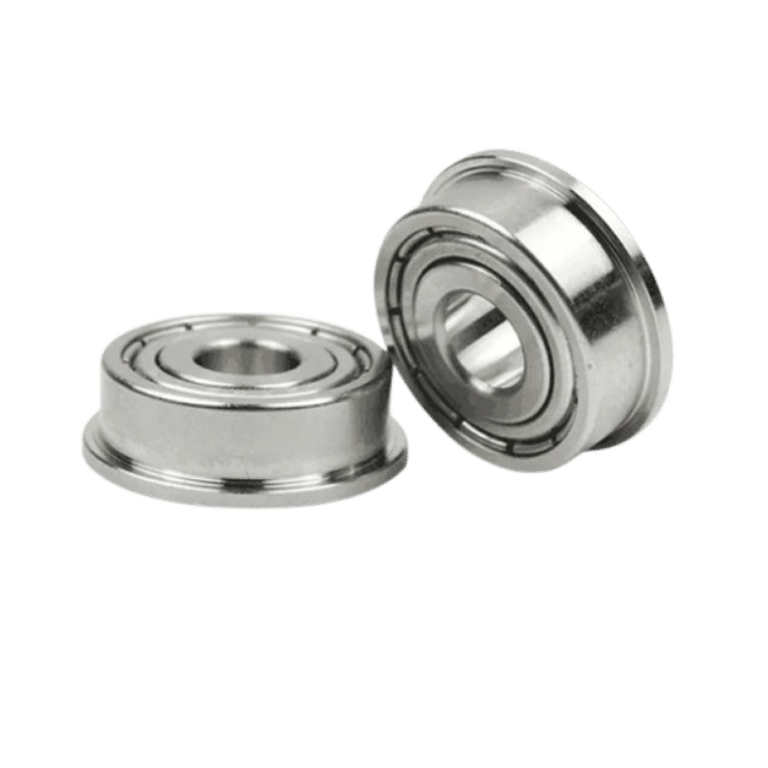

Flanged Deep Groove Ball Bearings
The Flanged Deep Groove Ball Bearings have a flange on the outer ring, which is relatively easy to locate axially in the bearing seat, making it easier and more cost-effective to manufacture the bearing hole.
The Structures of Flange Ball Bearings
The whole structure of flange ball bearings is simple. Due to the integrated structure of the flanged outer ring, which is convenient for installation and maintenance, it will be directly connected to other components, which can reduce additional installation steps and parts, thereby reducing installation costs;
Their simplified housing lowers costs, and versatility in handling combined loads suits gearboxes and robotics. Optional seals improve durability by excluding contaminants and retaining lubricant, extending service life in demanding industrial settings. These features make flanged bearings a robust, space-efficient solution for applications prioritizing reliability and ease of maintenance.
Advantages of Flanged Ball Bearing
Flanged bearings that use balls as rolling elements have a lower friction coefficient than sliding modes. This reduces wear and power consumption, makes high speed, and ensures the service life of the bearing.
TFL Bearing offers a wide variety of high-quality bearings. Our bearings can be replaced with those of mainstream brands. You can select the bearings you need from our product page.
Applications of Flange Bearings
Flanged bearings can withstand large axial, radial loads and torques, they are suitable for various types of mechanical equipment and working environments.
Whether it is heavy equipment on industrial production lines or small components in precision instruments, you can find suitable flange bearings to meet your needs.
FREQUENTLY ASKED QUESTIONS
What is the common way to represent flange in bearing models?
Generally speaking, the model of flange bearing is composed of letter F + ordinary deep groove ball bearing model;
For example:
NSK brand flange deep groove ball bearing F686ZZ;
EZO brand miniature flange deep groove ball bearing MF93ZZ;
NB brand inch flange deep groove ball bearing FR2-5ZZ;
Click here to view the flanged ball bearing size chart, to query all models and find the required bearings.
What kinds of flange ball bearings are divided into based on the raw material?
Flange bearings are the same as deep groove ball bearings, and can be made of a variety of raw materials:
GCR15 bearings: The entire body is made of bearing steel that meets international standards;
Stainless steel bearings: The inner and outer rings and rolling elements are all made of stainless steel to be suitable for humid environments;
Ceramic bearings: Usually, the inner and outer rings are made of stainless steel or bearing steel, and the balls are made of ceramic to achieve a higher speed;
Plastic bearings: The entire body is made of plastic, and there may also be a combination of glass or ceramic balls.
Where can I buy ball bearings?
Welcome to TFL bearing's website, we offer various series of ball bearings, deep groove ball bearings, flange deep groove ball bearings and ceramic hybrid ball bearings of all sizes.
We can provide SKF replacements of the same quality. Please send us the bearing models, bearing drawings, or bearing sizes, and let us help you.
Do you offer samples? What is the Minimum Order Quantity (MOQ)?
Sample availability and Minimum Order Quantity (MOQ) can vary by product model. Please check the specific product page or contact our sales team for details on the bearing you need.
