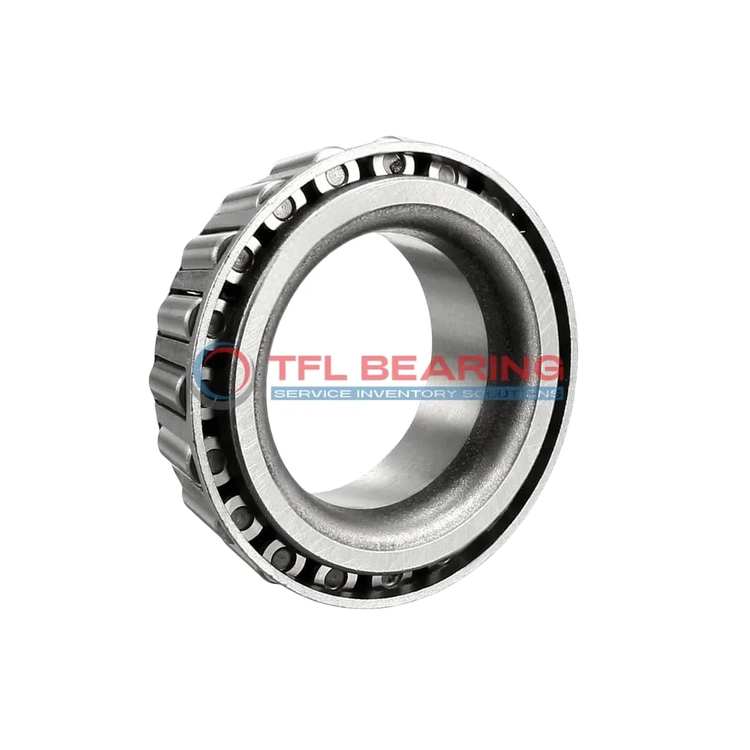

TS (Single Row Tapered Roller Bearings) (Imperial) HH224349-HH224310V

TS (Single Row Tapered Roller Bearings) (Imperial) HH224349-HH224310V

The HH224349-HH224310V is a single-row tapered roller bearing with a 4.5266″ bore and 8.375″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 153,000 lbf radially and 22,100 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where high radial and thrust loads are common.

Weighing 21.7 lb, it’s built for strength and longevity. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH224349-HH224310V
  • Brand TFL
  • Interchangeable Timken
  • Size 4.5266" x 8.375" x 2.6251"
  • Bore Dia 4.5266"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 8.375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.6251"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.280"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 6.14"
  • Cone Backface Backing Diameter 5.67"
  • Cup Frontface Backing Diameter 7.95"
  • Cup Backface Backing Diameter 7.56"
  • Cage Cone Frontface Clearance 0.15"
  • Cage Cone Backface Clearance 0.16"
  • Effective Center Location -0.74"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HH224349
  • Cup Part Number HH224310V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HH224300
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 153000 lbf
  • Static Radial Load 204000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 39600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 22100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 21.7 lb

Features

Performance Features of HH224349-HH224310V Bearing

HH224349-HH224310V Bearing is crafted with chrome steel rings and rollers, ensuring strength and durability.
Its dynamic radial load capacity reaches 153,000 lbf, making it suitable for heavy-duty applications.

The tapered roller design efficiently handles combined loads, providing reliable performance.
With a static radial load of 204,000 lbf, it offers stability under extreme conditions.

HH224349-HH224310V Bearing operates within a temperature range of -30° to 110°C, adapting to various environments.
The steel cage maintains roller alignment, reducing wear and extending service life.

Lubrication is required for optimal performance, ensuring smooth operation over time.
Its standard radial clearance makes it versatile for different industrial needs.

Application

Industrial Uses of HH224349-HH224310V Bearing
HH224349-HH224310V Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

What Makes HH224349-HH224310V Bearing a Preferred Choice?
In automotive applications, HH224349-HH224310V Bearing fits well in truck wheel hubs and differential systems, thanks to its high dynamic radial load capacity. The inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: HH224349-HH224310V Bearing
For industrial fans and pumps, HH224349-HH224310V Bearing offers reliable performance with its standard radial clearance and ABEC-1 rating. The steel cage adds stability during high-speed operations.

Automotive vs Aerospace: Applications of HH224349-HH224310V Bearing
While HH224349-HH224310V Bearing excels in truck axles, it’s also suitable for aerospace ground support equipment. Its temperature range of -30° to 110°C ensures versatility across climates.

Perfect Fit for Automation: HH224349-HH224310V Bearing
In automated conveyor systems, HH224349-HH224310V Bearing’s single-row design simplifies installation and maintenance. The open seal type allows for easy lubrication, extending service life.
