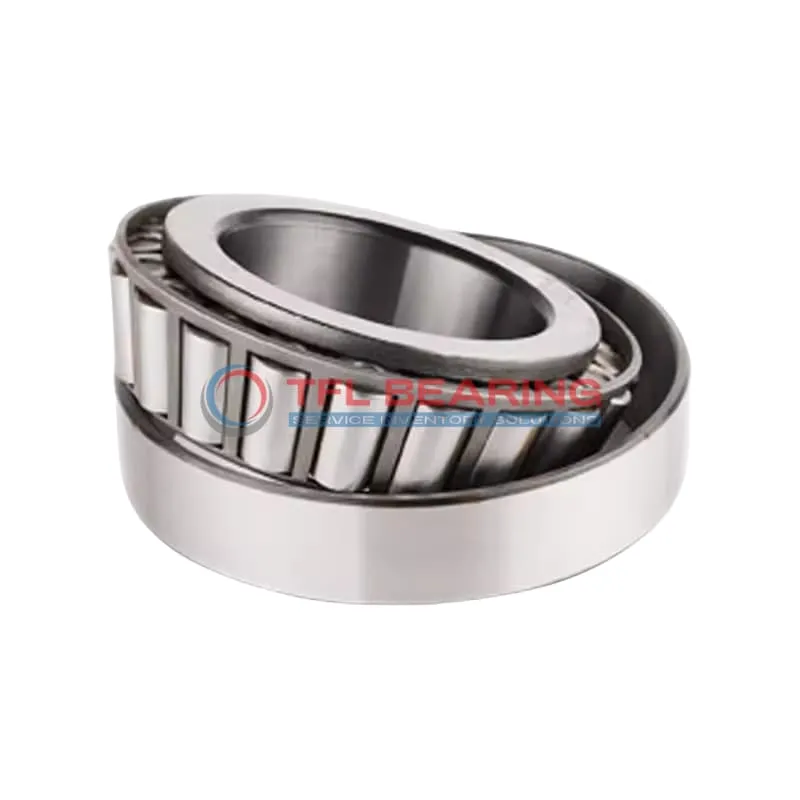

TS (Single Row Tapered Roller Bearings) (Imperial) H247540-H247510

TS (Single Row Tapered Roller Bearings) (Imperial) H247540-H247510

The H247540-H247510 is a single-row tapered roller bearing with an 8.66″ bore and 15.125″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 432,000 lbf radially and 63,700 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or large vehicles where high radial and thrust loads are common.

Weighing 120.8 lbs, it’s built to last with standard radial clearance options. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number H247540-H247510
  • Brand TFL
  • Interchangeable Timken
  • Size 8.6604" x 15.125" x 4.4374"
  • Bore Dia 8.6604"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 15.125"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 4.4375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 3.5625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 4.4374"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 11.33"
  • Cone Backface Backing Diameter 10.59"
  • Cup Frontface Backing Diameter 14.32"
  • Cup Backface Backing Diameter 13.62"
  • Cage Cone Frontface Clearance 0.16"
  • Cage Cone Backface Clearance 0.37"
  • Effective Center Location -1.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number H247540
  • Cup Part Number H247510
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series H247500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 432000 lbf
  • Static Radial Load 699000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 112000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 63700 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 120.80 lb

Features

Performance Features of H247540-H247510 Bearing

H247540-H247510 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 432,000 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is H247540-H247510 Bearing Engineered for Reliability?

H247540-H247510 Bearing features a tapered roller design, optimised for handling both radial and thrust loads.
The chrome steel construction provides excellent resistance to wear and fatigue.
Its standard radial clearance ensures smooth operation, while the ABEC-1 rating guarantees consistent precision.
This bearing is interchangeable with Timken models, offering flexibility in replacements.

Built for Durability: H247540-H247510 Bearing

H247540-H247510 Bearing’s single-row construction ensures stability and strength in demanding environments.
The steel cage maintains roller positioning, contributing to long service life.
With a static radial load capacity of 699,000 lbf, it excels in high-load scenarios.
Its open design allows for easy lubrication, ensuring optimal performance over time.

Steel vs Ceramic Bearings: Strengths of H247540-H247510 Bearing

H247540-H247510 Bearing uses chrome steel for both rings and rollers, providing superior strength and durability.
The material choice ensures resistance to heavy loads and extended fatigue life.
Unlike ceramic bearings, it offers cost-effective reliability for industrial applications.
Its standard radial clearance and ABEC-1 rating make it a practical choice for various machinery.

Application

Industrial Uses of H247540-H247510 Bearing
H247540-H247510 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is H247540-H247510 Bearing Used?
You’ll often find H247540-H247510 Bearing in agricultural machinery, such as tractors and harvesters, where its high load capacity supports heavy-duty operations. The open design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: H247540-H247510 Bearing
H247540-H247510 Bearing excels in industrial gearboxes, providing reliable performance under high stress. Its standard radial clearance makes it versatile for various applications.

Automotive vs Aerospace: Applications of H247540-H247510 Bearing
In automotive systems, H247540-H247510 Bearing is ideal for wheel hubs and differentials, offering stability under heavy loads. For aerospace, its precision meets the demands of landing gear mechanisms.

Perfect Fit for Automation: H247540-H247510 Bearing
H247540-H247510 Bearing works well in automated assembly lines, where its consistent performance ensures smooth operation. The steel cage adds strength, making it suitable for high-speed applications.
