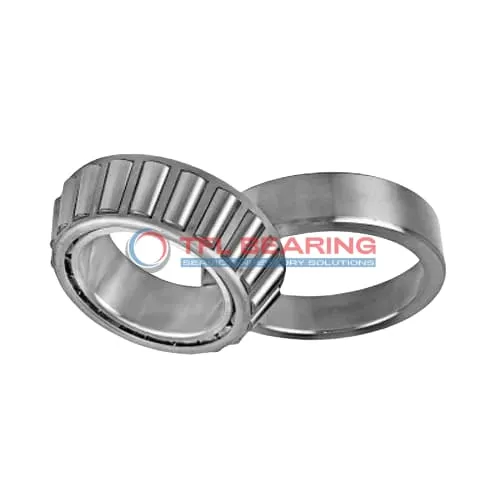

TS (Single Row Tapered Roller Bearings) (Imperial) H239649-H239610

TS (Single Row Tapered Roller Bearings) (Imperial) H239649-H239610

The H239649-H239610 is a single-row tapered roller bearing with a 7.375″ bore and 12.597″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 236,000 lbf radially and 33,400 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or large vehicles where robust performance is needed.

Weighing 56.9 lb, it’s a solid choice for demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number H239649-H239610
  • Brand TFL
  • Interchangeable Timken
  • Size 7.375" x 12.597" x 3.5"
  • Bore Dia 7.375"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 12.597"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3.375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.5625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.220"
  • Cup Backface ToClear Radius 0.190"
  • Cone Frontface Backing Diameter 9.03"
  • Cone Backface Backing Diameter 8.43"
  • Cup Frontface Backing Diameter 11.85"
  • Cup Backface Backing Diameter 11.54"
  • Cage Cone Frontface Clearance 0.14"
  • Cage Cone Backface Clearance 0.42"
  • Effective Center Location -0.88"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number H239649
  • Cup Part Number H239610
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series H239600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 236000 lbf
  • Static Radial Load 356000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 61100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 33400 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 56.900 lb

Features

Performance Features of H239649-H239610 Bearing

H239649-H239610 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 236,000 lbf, making it suitable for heavy-duty applications.

The single-row tapered roller design ensures effective load distribution, enhancing durability.
With a standard radial clearance, it provides reliable operation in various industrial settings.

H239649-H239610 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
The steel cage maintains roller alignment, reducing friction and extending service life.

This bearing requires lubrication for optimal performance, supporting smooth operation.
Its ABEC-1 rating balances precision and cost-effectiveness for general applications.

Application

Industrial Uses of H239649-H239610 Bearing
H239649-H239610 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined radial and thrust loads efficiently. The chrome steel construction ensures durability even in demanding environments.
In industrial gearboxes, H239649-H239610 Bearing provides reliable performance due to its high dynamic radial load capacity. The open design allows for easy lubrication, extending service life in continuous operation settings.

Where Is H239649-H239610 Bearing Used?
You’ll often find H239649-H239610 Bearing in large agricultural equipment, particularly in tractor transmissions and harvesters. Its inch sizing makes it compatible with many North American machinery standards.
The bearing also works well in railway applications, supporting axle loads while maintaining stability at various speeds. The steel cage adds strength for these high-vibration environments.

Built for Heavy-Duty Use: H239649-H239610 Bearing
H239649-H239610 Bearing excels in oilfield equipment like pump jacks, where its ABEC-1 rating provides sufficient precision for rough operating conditions. The standard radial clearance accommodates thermal expansion during extended use.
For wind turbine applications, this bearing’s 356,000 lbf static load capacity makes it suitable for supporting main shafts. The temperature range of -30° to 110°C covers most environmental conditions.

Automotive vs Aerospace: Applications of H239649-H239610 Bearing
In truck wheel hubs, H239649-H239610 Bearing handles both vehicle weight and cornering forces effectively. The tapered rollers distribute loads evenly across the bearing surfaces.
While not typically used in aerospace, this bearing serves well in ground support equipment like aircraft tugs. The 56.9 lb weight is manageable for these industrial applications.

Key Fields for H239649-H239610 Bearing
H239649-H239610 Bearing finds its place in marine propulsion systems, where saltwater resistance comes from its chrome steel components. Regular lubrication maintains smooth operation in these critical systems.
Paper mills also benefit from this bearing in roller applications, where its dimensional stability handles both radial and axial loads from heavy paper rolls. The Timken interchangeability simplifies maintenance.
