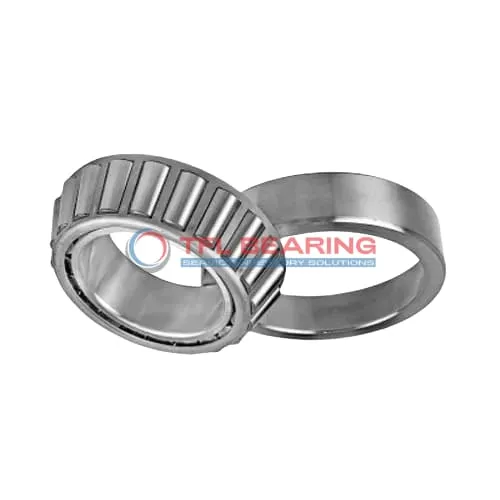

TS (Single Row Tapered Roller Bearings) (Imperial) KLM236749-KLM236710

TS (Single Row Tapered Roller Bearings) (Imperial) KLM236749-KLM236710

The KLM236749-KLM236710 is a single-row tapered roller bearing with a 7.25″ bore and 9.25″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 63800 lbf radially and 9480 lbf thrust, making it a sturdy choice for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, suitable for various industrial environments.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in machinery like gearboxes or conveyor systems where combined loads are common.

Weighing 7.4 lb, it’s built to last and complies with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number KLM236749-KLM236710
  • Brand TFL
  • Interchangeable Timken
  • Size 7.25" x 9.25" x 1.3386"
  • Bore Dia 7.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 9.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.2992"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.1024"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.3386"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 8.58"
  • Cone Backface Backing Diameter 7.68"
  • Cup Frontface Backing Diameter 9.06"
  • Cup Backface Backing Diameter 8.82"
  • Cage Cone Frontface Clearance 0.17"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location 0.2"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number KLM236749
  • Cup Part Number KLM236710
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series LM236700
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 63800 lbf
  • Static Radial Load 124000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 16500 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9480 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 7.400 lb

Features

How Does KLM236749-KLM236710 Bearing Handle Combined Loads?

KLM236749-KLM236710 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 63,800 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

Structural Advantages of KLM236749-KLM236710 Bearing

KLM236749-KLM236710 Bearing features a single-row tapered roller design, ideal for combined load applications.
The chrome steel construction enhances durability, while the standard radial clearance ensures smooth operation.
Its effective center location of 0.2″ improves load distribution and stability.
The open seal type allows for easy lubrication and maintenance.

Why Choose KLM236749-KLM236710 Bearing for Heavy-Duty Applications?

KLM236749-KLM236710 Bearing is designed to handle static radial loads up to 124,000 lbf, making it suitable for heavy-duty use.
The tapered roller design minimises friction, ensuring efficient performance under high stress.
Its ABEC-1 rating guarantees consistent precision and reliability.
The steel cage provides robust support, enhancing the bearing’s overall longevity.

Application

Industrial Uses of KLM236749-KLM236710 Bearing
KLM236749-KLM236710 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

In automotive applications, KLM236749-KLM236710 Bearing supports wheel hubs and drivetrains, providing reliable performance under high radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

For industrial conveyor systems, KLM236749-KLM236710 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear over time.

Where Is KLM236749-KLM236710 Bearing Used?
KLM236749-KLM236710 Bearing finds its place in agricultural machinery, like tractors and harvesters, where its robust design withstands rough conditions. The standard radial clearance ensures smooth operation even with varying loads.

In power generation equipment, KLM236749-KLM236710 Bearing supports turbines and generators, handling high dynamic loads efficiently. The ABEC-1 rating provides a balance of precision and cost-effectiveness for these applications.

Built for Heavy-Duty Use: KLM236749-KLM236710 Bearing
KLM236749-KLM236710 Bearing is ideal for railway applications, such as axle boxes, where its tapered rollers manage both radial and axial forces. The chrome steel rollers enhance wear resistance, reducing maintenance needs.

For pulp and paper processing machinery, KLM236749-KLM236710 Bearing’s high static radial load capacity ensures reliability in heavy-load scenarios. The steel cage maintains roller alignment, promoting consistent performance.

Automotive vs Aerospace: Applications of KLM236749-KLM236710 Bearing
In automotive systems, KLM236749-KLM236710 Bearing is often used in truck differentials, where its combined load capacity is essential. The inch measurements simplify integration into existing designs.

For aerospace ground support equipment, KLM236749-KLM236710 Bearing provides dependable performance in load-handling mechanisms. Its temperature range suits various operational environments, from cold storage to outdoor use.
