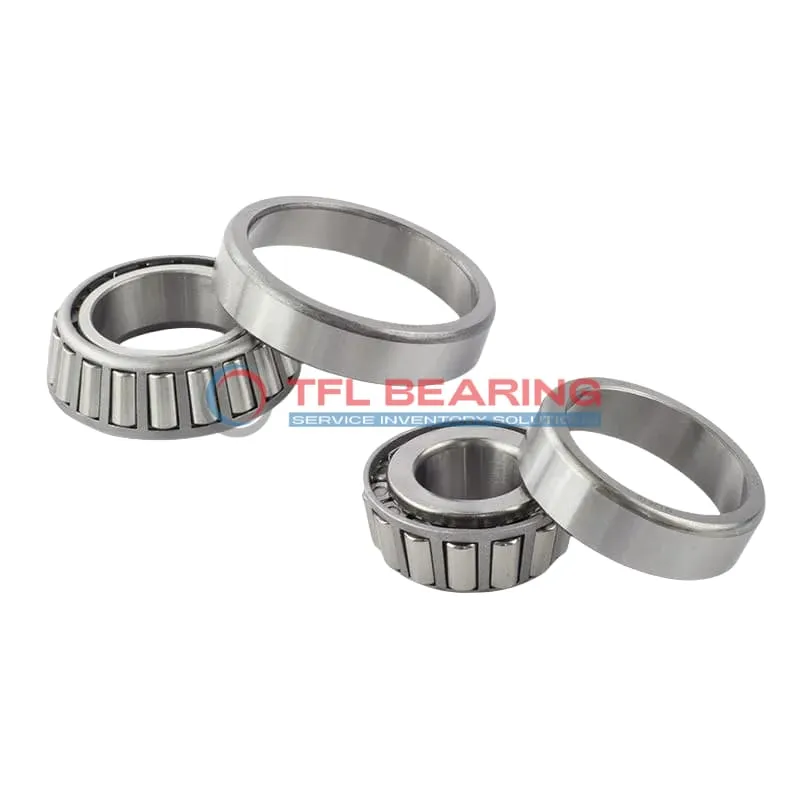

TS (Single Row Tapered Roller Bearings) (Imperial) EE350701-351687

TS (Single Row Tapered Roller Bearings) (Imperial) EE350701-351687

The EE350701-351687 is a single-row tapered roller bearing with a 7″ bore and 16.875″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 338,000 lbf radially and 114,000 lbf thrust, making it suitable for heavy-duty applications.

Its open design and pin-type cage ensure smooth operation, while the tapered rollers provide reliable performance under stress. The bearing requires lubrication and works in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for industrial machinery, gearboxes, or large equipment where high load capacity is needed.

Weighing 144.80 lb, it’s robust and durable for demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE350701-351687
  • Brand TFL
  • Interchangeable Timken
  • Size 7" x 16.875" x 4.1875"
  • Bore Dia 7"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 16.875"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3.75"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 4.1875"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 9.8"
  • Cone Backface Backing Diameter 9.06"
  • Cup Frontface Backing Diameter 15.10"
  • Cup Backface Backing Diameter 14.37"
  • Cage Cone Frontface Clearance 0.64"
  • Cage Cone Backface Clearance 0.84"
  • Effective Center Location 0.51"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number EE350701
  • Cup Part Number 351687
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 350000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Pin-Type
  • Dynamic Radial Load 338000 lbf
  • Static Radial Load 382000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 87600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 114000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 144.80 lb

Features

Performance Features of EE350701-351687 Bearing

EE350701-351687 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 338,000 lbf, making it suitable for heavy-duty applications.

The pin-type cage ensures proper roller alignment, reducing friction and enhancing durability.
With a standard radial clearance, it provides reliable operation in various industrial settings.

EE350701-351687 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its ABEC-1 rating ensures consistent performance for precision applications.

The tapered roller design distributes loads evenly, extending the bearing’s service life.
Lubrication is required to maintain optimal performance and reduce wear over time.

Application

Industrial Uses of EE350701-351687 Bearing
EE350701-351687 Bearing is commonly used in heavy machinery, such as mining equipment and large-scale conveyor systems, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding industrial environments.

Where Is EE350701-351687 Bearing Used?
You’ll often find EE350701-351687 Bearing in agricultural machinery, supporting components like gearboxes and axles that require robust load-bearing capabilities. Its imperial sizing makes it a practical choice for North American equipment manufacturers.

Built for Heavy-Duty Use: EE350701-351687 Bearing
EE350701-351687 Bearing excels in construction equipment, such as bulldozers and cranes, where its high dynamic radial load capacity is essential. The pin-type cage design enhances stability during prolonged operation.

Automotive vs Aerospace: Applications of EE350701-351687 Bearing
In automotive applications, EE350701-351687 Bearing is ideal for truck wheel hubs, providing reliable performance under heavy loads. While not typically used in aerospace, its precision makes it suitable for certain ground support equipment.

Essential Roles of EE350701-351687 Bearing
EE350701-351687 Bearing plays a key role in railway systems, particularly in freight car axles, where its tapered rollers manage both radial and thrust loads. The standard radial clearance allows for smooth operation in varying temperature conditions.
