TS (Single Row Tapered Roller Bearings) (Imperial) 566-563X

TS (Single Row Tapered Roller Bearings) (Imperial) 566-563X

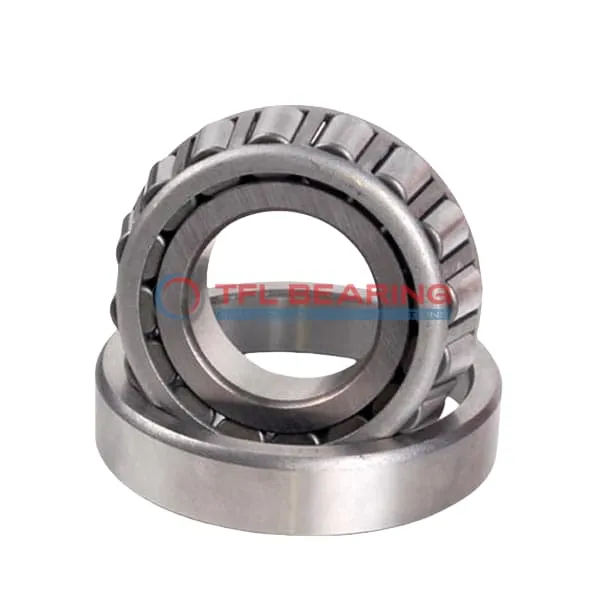

The 566-563X is a single-row tapered roller bearing with a 2.75″ bore and 5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it versatile for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or axles where combined loads are common.

Weighing 4.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 566-563X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.75" x 5" x 1.4376"
  • Bore Dia 2.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4376"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 3.74"
  • Cone Backface Backing Diameter 3.35"
  • Cup Frontface Backing Diameter 4.75"
  • Cup Backface Backing Diameter 4.49"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 566
  • Cup Part Number 563X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.2 lb

Features

How Does 566-563X Bearing Handle Combined Loads?

566-563X Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 44,100 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

Why Choose 566-563X Bearing for Heavy-Duty Applications?

566-563X Bearing features a single-row tapered roller design, ideal for handling combined loads efficiently.
The chrome steel construction provides durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 7,130 lbf makes it suitable for high-stress applications.
The open seal type allows for easy lubrication, maintaining performance over time.

Structural Advantages of 566-563X Bearing

566-563X Bearing’s precise cone and cup dimensions ensure optimal load distribution and stability.
The steel cage design minimises wear, enhancing the bearing’s longevity.
With an effective center location of -0.32″, it offers improved alignment in assemblies.
The bearing’s ABEC-1 rating guarantees consistent performance in industrial applications.

Optimised for Efficiency: 566-563X Bearing

566-563X Bearing’s tapered roller design reduces friction, improving energy efficiency.
The chrome steel materials resist wear, ensuring reliable operation under heavy loads.
Its static radial load capacity of 58,900 lbf makes it suitable for robust applications.
The standard lubrication requirement ensures easy maintenance and prolonged service life.

Application

Industrial Uses of 566-563X Bearing
The 566-563X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

Where Is 566-563X Bearing Used?
You’ll often find 566-563X Bearing in automotive applications like truck wheel hubs, where its high radial and thrust load capacity keeps things running smoothly. The inch sizing makes it a good fit for North American vehicle designs.

Built for Heavy-Duty Use: 566-563X Bearing
In industrial settings like conveyor systems, 566-563X Bearing stands up to continuous operation thanks to its robust steel cage and tapered rollers. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 566-563X Bearing
While 566-563X Bearing is popular in truck transmissions, it’s also suitable for aerospace ground support equipment where reliability matters. The ABEC-1 rating ensures consistent performance without over-engineering for less critical roles.

Perfect Fit for Automation: 566-563X Bearing
In automated production lines, 566-563X Bearing supports rotary tables and indexing systems with precision. The standard radial clearance offers a balance between smooth operation and load capacity for most industrial needs.
