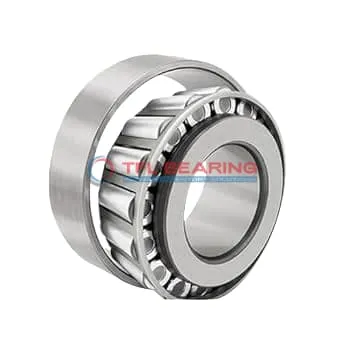

TS (Single Row Tapered Roller Bearings) (Imperial) 315-313

TS (Single Row Tapered Roller Bearings) (Imperial) 315-313

The 315-313 is a single-row tapered roller bearing with a 1-inch bore and 2.8346-inch outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 16800 lbf and is designed for smooth operation in various conditions.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing performs well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. It’s suitable for applications like automotive axles or industrial gearboxes where combined loads are common.

Weighing just 1 lb, it’s a compact yet robust solution for demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 315-313
  • Brand TFL
  • Interchangeable Timken
  • Size 1" x 2.8346" x 0.7481"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.8346"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.873"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.748"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7481"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 1.3"
  • Cone Backface Backing Diameter 1.32"
  • Cup Frontface Backing Diameter 2.72"
  • Cup Backface Backing Diameter 2.56"
  • Cage Cone Frontface Clearance 0.04"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.27"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 315
  • Cup Part Number 313
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 315
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 16800 lbf
  • Static Radial Load 16800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4370 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1880 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1 lb

Features

Performance Features of 315-313 Bearing

315-313 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 16,800 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

315-313 Bearing requires lubrication, but its robust design minimises maintenance needs.
The standard radial clearance option provides flexibility for different installation requirements.

Application

Industrial Uses of 315-313 Bearing
The 315-313 Bearing is commonly used in heavy machinery like conveyor systems and agricultural equipment, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 315-313 Bearing Used?
You’ll often find the 315-313 Bearing in automotive applications, such as wheel hubs and differentials, where its ability to manage radial and thrust loads is crucial. The inch sizing makes it a fit for many North American vehicle models.

Built for Heavy-Duty Use: 315-313 Bearing
In construction equipment like bulldozers and cranes, the 315-313 Bearing provides reliable performance under high stress. Its open design allows for easy lubrication, extending service life in tough conditions.

Automotive vs Aerospace: Applications of 315-313 Bearing
While the 315-313 Bearing is popular in automotive systems, it’s also suited for aerospace ground support equipment. Its precision and load capacity make it versatile across different industries.

Perfect Fit for Automation: 315-313 Bearing
The 315-313 Bearing works well in automated machinery, such as robotic arms, where smooth rotation and load handling are essential. Its standard radial clearance ensures consistent performance in repetitive tasks.
