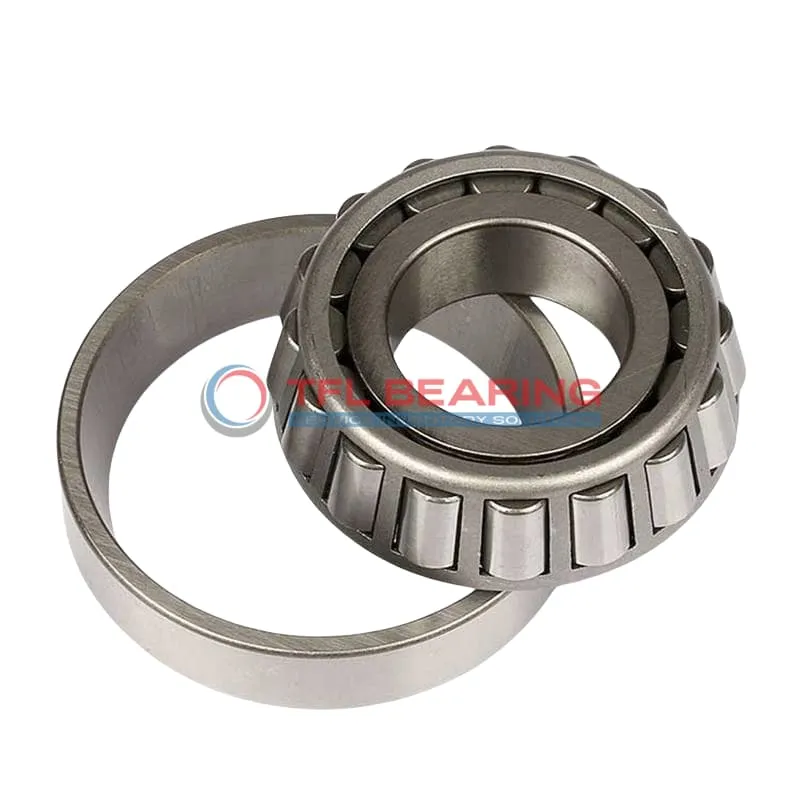

TS (Single Row Tapered Roller Bearings) (Imperial) 2685-2630

TS (Single Row Tapered Roller Bearings) (Imperial) 2685-2630

The 2685-2630 is a single-row tapered roller bearing with a 0.9375″ bore and 2.4843″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 17200 lbf radially and 1940 lbf thrust, making it versatile for various applications.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

Interchangeable with Timken bearings, this model offers a reliable replacement option. Ideal for use in wheel hubs or industrial gearboxes where combined loads are common.

Weighing just 0.9 lb, it balances strength and portability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2685-2630
  • Brand TFL
  • Interchangeable Timken
  • Size 0.9375" x 2.4843" x 0.9377"
  • Bore Dia 0.9375"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.4843"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.0013"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9377"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.18"
  • Cone Backface Backing Diameter 1.22"
  • Cup Frontface Backing Diameter 2.34"
  • Cup Backface Backing Diameter 2.24"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.37"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2685
  • Cup Part Number 2630
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 17200 lbf
  • Static Radial Load 18400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4470 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1940 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.9 lb

Features

Performance Features of 2685-2630 Bearing

2685-2630 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 17,200 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 2685-2630 Bearing Engineered for Reliability?

2685-2630 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides excellent wear resistance, extending its service life.
Its standard radial clearance allows for smooth operation in diverse industrial settings.
The bearing requires lubrication, ensuring consistent performance over time.

Designed for Durability: 2685-2630 Bearing

2685-2630 Bearing’s robust construction includes a steel cage and chrome steel components.
It handles static radial loads up to 18,400 lbf, making it reliable for demanding tasks.
The tapered roller design distributes loads evenly, reducing stress on individual components.
With an ABEC-1 rating, it balances precision and cost-effectiveness.

Steel vs Ceramic Bearings: Strengths of 2685-2630 Bearing

2685-2630 Bearing uses chrome steel for both rings and rollers, providing excellent strength.
This material choice makes it more cost-effective than ceramic options for many applications.
The bearing’s dynamic thrust rating of 1,940 lbf ensures reliable performance under pressure.
Its standard radial clearance offers flexibility for various installation requirements.

Application

Industrial Uses of 2685-2630 Bearing
The 2685-2630 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.

Where Is 2685-2630 Bearing Used?
You’ll often find 2685-2630 Bearing in automotive applications like truck wheel hubs, where its ability to manage radial and thrust loads keeps things running smoothly. The inch sizing makes it a good fit for many North American vehicles.

Built for Heavy-Duty Use: 2685-2630 Bearing
This bearing works well in conveyor systems, thanks to its open design and steel cage, which allow for easy lubrication and maintenance. The standard radial clearance also helps it adapt to varying operational demands.

Automotive vs Aerospace: Applications of 2685-2630 Bearing
In automotive settings, 2685-2630 Bearing supports drivetrain components, while its precision makes it suitable for certain aerospace applications. The ABEC-1 rating ensures reliable performance without over-engineering.

Key Fields for 2685-2630 Bearing
Farm equipment often relies on 2685-2630 Bearing for its robust construction and ability to handle dirt and debris. The tapered rollers distribute loads evenly, extending the bearing’s service life.
