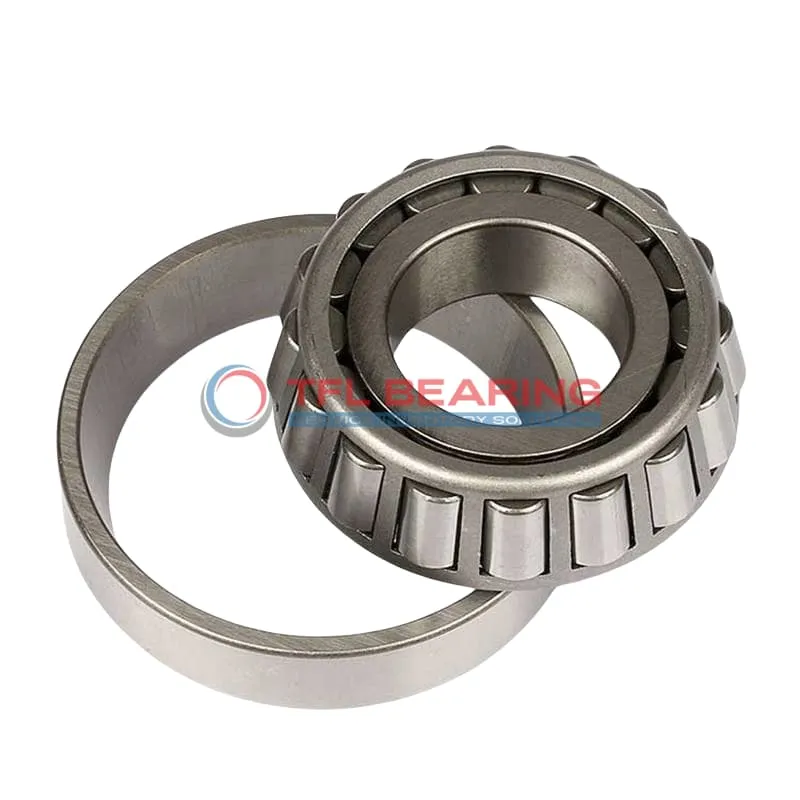

TS (Single Row Tapered Roller Bearings) (Imperial) 2685-2620

TS (Single Row Tapered Roller Bearings) (Imperial) 2685-2620

The 2685-2620 is a single-row tapered roller bearing with a 0.9375″ bore and 2.4843″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 17200 lbf radially and 1940 lbf in thrust, making it versatile for various applications.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for gearboxes, axles, or industrial machinery where combined loads are present.

Weighing just 0.9 lb, it balances strength and portability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2685-2620
  • Brand TFL
  • Interchangeable Timken
  • Size 0.9375" x 2.4843" x 0.9377"
  • Bore Dia 0.9375"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.4843"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.0013"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9377"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 1.18"
  • Cone Backface Backing Diameter 1.22"
  • Cup Frontface Backing Diameter 2.34"
  • Cup Backface Backing Diameter 2.09"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.37"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2685
  • Cup Part Number 2620
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 17200 lbf
  • Static Radial Load 18400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4470 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1940 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.9 lb

Features

Performance Features of 2685-2620 Bearing

2685-2620 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 17,200 lbf, ensuring reliable performance in various applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

How Is 2685-2620 Bearing Engineered for Reliability?

2685-2620 Bearing features precise cone and cup width tolerances for consistent performance.
The tapered roller design efficiently handles both radial and thrust loads.
Chrome steel construction enhances durability, even under heavy loads.
Its standard radial clearance options provide flexibility for different applications.

Built for Durability: 2685-2620 Bearing

2685-2620 Bearing’s single row construction ensures stability and load-bearing capacity.
The open design allows for easy lubrication, maintaining smooth operation.
With an ABEC-1 rating, it delivers reliable precision for industrial use.
Its interchangeable design with Timken bearings offers convenient replacement options.

Application

Industrial Uses of 2685-2620 Bearing
The 2685-2620 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 2685-2620 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The inch sizing makes it compatible with many North American vehicle models.

For industrial conveyors, 2685-2620 Bearing’s open design allows easy lubrication, extending service life in high-use scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

Where Is 2685-2620 Bearing Used?
You’ll often find 2685-2620 Bearing in agricultural machinery, where its robust design handles rough conditions. The tapered rollers manage both radial and thrust loads smoothly.

In mining equipment, 2685-2620 Bearing’s high dynamic load capacity ensures reliable performance. Its standard radial clearance makes it adaptable to various operational demands.

Built for Heavy-Duty Use: 2685-2620 Bearing
The 2685-2620 Bearing excels in forestry equipment, where its tapered rollers withstand heavy loads and shocks. The chrome steel rings resist wear, even in abrasive environments.

For gearboxes, 2685-2620 Bearing’s precise dimensions ensure smooth operation. Its ABEC-1 rating balances performance and cost for general industrial use.

Automotive vs Aerospace: Applications of 2685-2620 Bearing
In automotive systems, 2685-2620 Bearing supports wheel assemblies, offering durability and load capacity. Its inch sizing suits many classic and modern vehicles.

For aerospace ground equipment, 2685-2620 Bearing provides reliable performance in auxiliary systems. The temperature range ensures stability in varying conditions.
