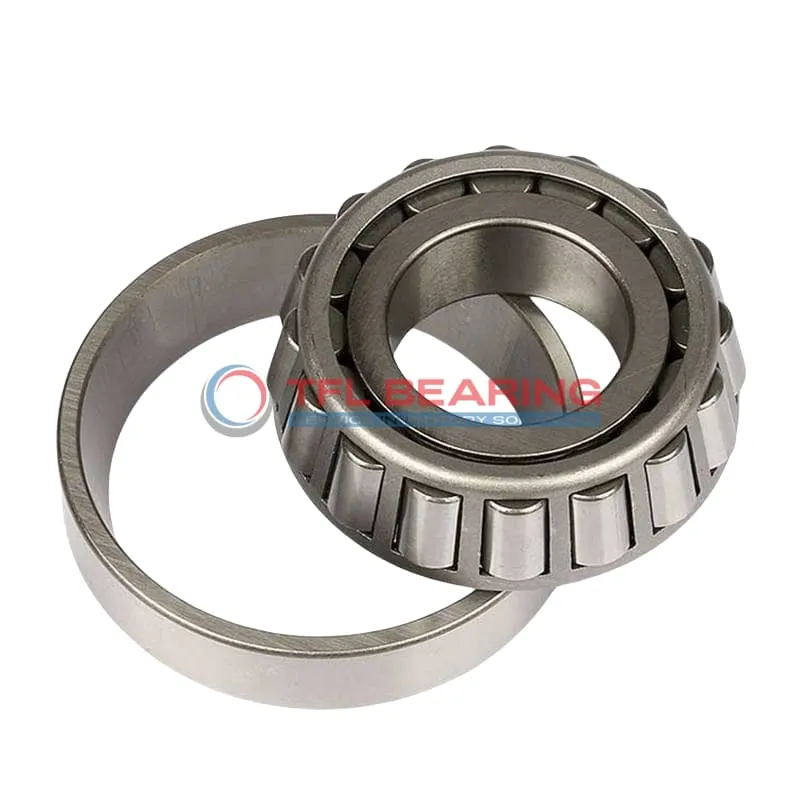

TS (Single Row Tapered Roller Bearings) (Imperial) 2683-2630

TS (Single Row Tapered Roller Bearings) (Imperial) 2683-2630

The 2683-2630 is a single-row tapered roller bearing with a 0.9375″ bore and 2.4843″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 17200 lbf radially and 1940 lbf in thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, wheel hubs, or industrial machinery where combined loads are present.

Weighing just 0.9 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2683-2630
  • Brand TFL
  • Interchangeable Timken
  • Size 0.9375" x 2.4843" x 0.9377"
  • Bore Dia 0.9375"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.4843"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.0013"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9377"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.38"
  • Cone Backface Backing Diameter 1.32"
  • Cup Frontface Backing Diameter 2.34"
  • Cup Backface Backing Diameter 2.24"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.37"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2683
  • Cup Part Number 2630
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 17200 lbf
  • Static Radial Load 18400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4470 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1940 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.9 lb

Features

Performance Features of 2683-2630 Bearing

2683-2630 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 17,200 lbf, ensuring reliable performance in various applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a standard radial clearance, it provides flexibility for different installation needs.

How Is 2683-2630 Bearing Engineered for Reliability?

2683-2630 Bearing features a tapered roller design, optimised for handling both radial and thrust loads.
The chrome steel construction ensures durability, even in demanding industrial environments.
Its effective centre location enhances stability, making it suitable for precision tasks.
The open seal type allows for easy lubrication, maintaining smooth operation over time.

Built for Durability: 2683-2630 Bearing

2683-2630 Bearing’s single-row construction provides a compact yet robust solution for heavy loads.
The standard cup type simplifies installation, reducing downtime during maintenance.
With a temperature range of -30° to 110°C, it performs reliably in varied conditions.
The ABEC-1 rating ensures consistent precision for general industrial applications.

Steel vs Ceramic Bearings: Strengths of 2683-2630 Bearing

2683-2630 Bearing uses chrome steel for both rollers and rings, offering excellent wear resistance.
Its dynamic thrust rating of 1,940 lbf ensures reliable performance under combined loads.
The steel cage design enhances durability, making it a cost-effective choice.
With standard radial clearance options, it adapts easily to different operational requirements.

Application

Industrial Uses of 2683-2630 Bearing
The 2683-2630 Bearing is a reliable choice for heavy machinery, such as construction equipment and agricultural gear, where combined radial and thrust loads are common. Its tapered roller design ensures smooth operation even under demanding conditions.

In automotive applications, 2683-2630 Bearing fits well in wheel hubs and differential systems, thanks to its robust chrome steel construction. The inch sizing makes it compatible with many North American vehicle models.

For industrial fans and pumps, 2683-2630 Bearing’s open design allows for easy lubrication, extending service life in high-speed environments. The steel cage adds durability, making it suitable for continuous operation.

Where Is 2683-2630 Bearing Used?
You’ll often find 2683-2630 Bearing in conveyor systems, where its ability to handle combined loads keeps things running smoothly. The standard radial clearance offers flexibility for various industrial settings.

In power transmission equipment, 2683-2630 Bearing’s tapered rollers reduce friction, improving efficiency. Its ABEC-1 rating ensures consistent performance without overcomplicating precision requirements.

Built for Heavy-Duty Use: 2683-2630 Bearing
2683-2630 Bearing excels in mining machinery, where its chrome steel rollers withstand harsh conditions. The single-row design simplifies installation and maintenance.

For gearboxes, 2683-2630 Bearing’s dynamic load capacity ensures reliable power transfer. The inch measurements make it a straightforward replacement for Timken equivalents.

Automotive vs Industrial: Applications of 2683-2630 Bearing
In trucks and trailers, 2683-2630 Bearing handles heavy loads in wheel assemblies, while in industrial presses, it manages high radial forces. The temperature range suits both environments.

The 2683-2630 Bearing’s versatility shines in forklifts, balancing thrust and radial loads. Its steel cage and chrome steel components provide long-lasting performance.
