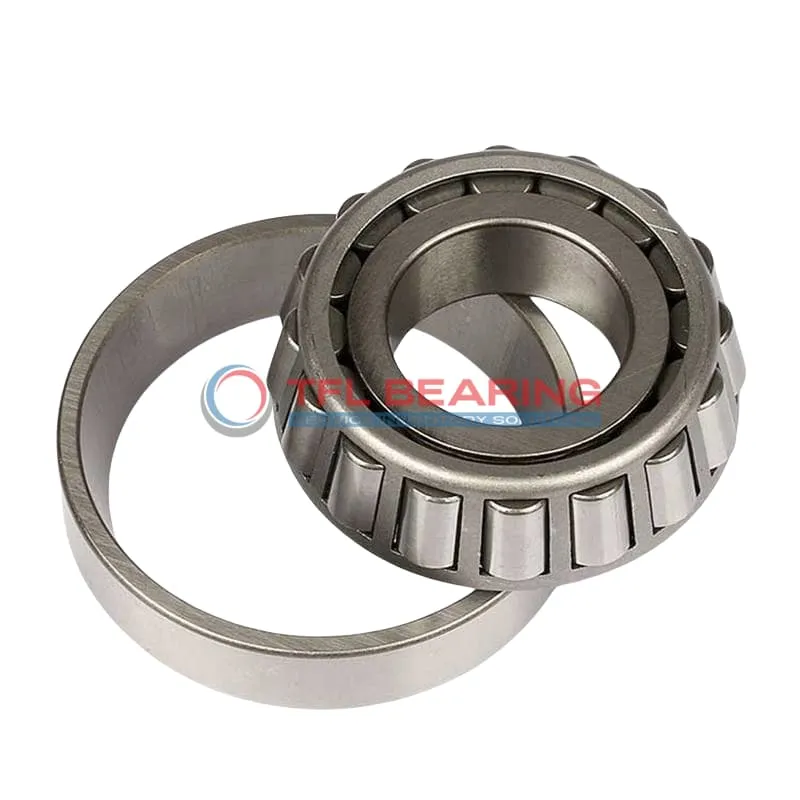

TS (Single Row Tapered Roller Bearings) (Imperial) 2683-2620

TS (Single Row Tapered Roller Bearings) (Imperial) 2683-2620

The 2683-2620 is a single-row tapered roller bearing with a 0.9375″ bore and 2.4843″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 17200 lbf radially and 1940 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing just 0.9 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

The standard radial clearance and ABEC-1 rating ensure consistent performance. Suitable for applications requiring precise load distribution and long service life.

Its tapered roller design provides effective load handling, making it a practical choice for demanding environments. Easy to maintain and install, it’s a solid pick for engineers and maintenance teams alike.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2683-2620
  • Brand TFL
  • Interchangeable Timken
  • Size 0.9375" x 2.4843" x 0.9377"
  • Bore Dia 0.9375"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.4843"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.0013"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9377"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 1.38"
  • Cone Backface Backing Diameter 1.32"
  • Cup Frontface Backing Diameter 2.34"
  • Cup Backface Backing Diameter 2.09"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.37"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2683
  • Cup Part Number 2620
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 17200 lbf
  • Static Radial Load 18400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4470 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1940 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.9 lb

Features

Performance Features of 2683-2620 Bearing

2683-2620 Bearing is crafted from chrome steel, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 17,200 lbf, making it suitable for demanding industrial applications.

The tapered roller design ensures smooth operation and efficient load distribution.
With a standard radial clearance, it provides reliable performance in various operating conditions.

2683-2620 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
Its steel cage maintains roller alignment, reducing friction and extending service life.

The open seal design allows for easy lubrication, supporting consistent performance.
Weighing just 0.9 lb, it balances durability with manageable handling.

Application

Industrial Uses of 2683-2620 Bearing
The 2683-2620 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 2683-2620 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The inch sizing makes it compatible with many North American vehicle models.

For industrial conveyors, 2683-2620 Bearing’s open design allows for easy lubrication, extending service life in high-use settings. The steel cage adds extra strength, making it a solid choice for continuous operation.

Where Is 2683-2620 Bearing Used?
You’ll often find 2683-2620 Bearing in mining equipment, where its ability to handle radial and thrust loads is crucial. The standard radial clearance ensures smooth operation even under heavy stress.

In manufacturing plants, 2683-2620 Bearing supports machinery like presses and gearboxes, thanks to its robust design. The ABEC-1 rating balances precision and cost-effectiveness for general industrial use.

Built for Heavy-Duty Use: 2683-2620 Bearing
The 2683-2620 Bearing excels in applications like forklifts and cranes, where its tapered rollers manage uneven loads with ease. Its temperature range of -30° to 110°C suits most working conditions.

For farm equipment, 2683-2620 Bearing’s steel cage and chrome steel rollers withstand dirt and debris common in outdoor use. The dynamic radial load capacity of 17200 lbf ensures long-term reliability.

Automotive vs Aerospace: Applications of 2683-2620 Bearing
In automotive systems, 2683-2620 Bearing is ideal for drivetrain components, offering a balance of strength and affordability. The inch measurements align with many standard automotive designs.

For aerospace ground equipment, 2683-2620 Bearing provides dependable performance in maintenance tools and support machinery. Its compliance with RoHS and REACH standards adds to its versatility.
