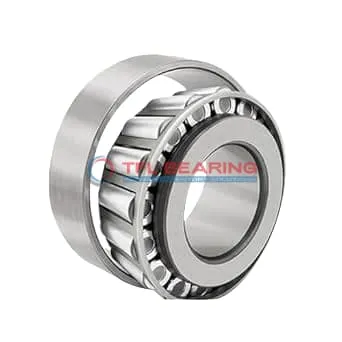

TS (Single Row Tapered Roller Bearings) (Imperial) 26100-26300

TS (Single Row Tapered Roller Bearings) (Imperial) 26100-26300

The 26100-26300 is a single-row tapered roller bearing with a 1″ bore and 3″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 13200 lbf radially and 2110 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for gearboxes, axles, or industrial machinery where combined loads are common.

Weighing just 1 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for most industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 26100-26300
  • Brand TFL
  • Interchangeable Timken
  • Size 1" x 3" x 0.748"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.745"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.748"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.28"
  • Cone Backface Backing Diameter 1.36"
  • Cup Frontface Backing Diameter 2.62"
  • Cup Backface Backing Diameter 2.52"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.16"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 26100
  • Cup Part Number 26300
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 26000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 13200 lbf
  • Static Radial Load 13500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3420 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2110 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1 lb

Features

Performance Features of 26100-26300 Bearing

26100-26300 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 13,200 lbf, ensuring reliable performance in various applications.

The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

26100-26300 Bearing requires lubrication, which helps maintain smooth operation over time.
Its standard radial clearance makes it versatile for different installation needs.

Application

Industrial Uses of 26100-26300 Bearing
26100-26300 Bearing is commonly used in heavy machinery like conveyor systems and industrial gearboxes, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 26100-26300 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many American-made vehicles.

For agricultural equipment, 26100-26300 Bearing’s robust design supports tractors and harvesters, where it withstands dirt and debris. The open seal type allows for easy lubrication, extending its service life.

Where Is 26100-26300 Bearing Used?
You’ll often find 26100-26300 Bearing in construction equipment like bulldozers and cranes, where its ability to handle radial and thrust loads is crucial. The steel cage adds extra strength for heavy-duty use.

In mining machinery, 26100-26300 Bearing performs reliably under extreme conditions, thanks to its chrome steel rollers. The standard radial clearance ensures smooth operation even with thermal expansion.

Built for Heavy-Duty Use: 26100-26300 Bearing
26100-26300 Bearing is ideal for forestry equipment like log splitters, where its tapered rollers manage high impact loads. The inch measurements simplify replacements in older machinery.

The bearing’s ABEC-1 rating makes it suitable for general industrial applications where precision is important but not critical. Its temperature range covers most working environments.

Automotive vs Aerospace: Applications of 26100-26300 Bearing
In automotive systems, 26100-26300 Bearing is often used in truck axles, balancing durability and performance. The combined load capacity makes it versatile for various vehicle types.

For aerospace ground equipment, 26100-26300 Bearing supports maintenance tools and loading systems. Its compliance with RoHS and REACH standards ensures environmental safety.
