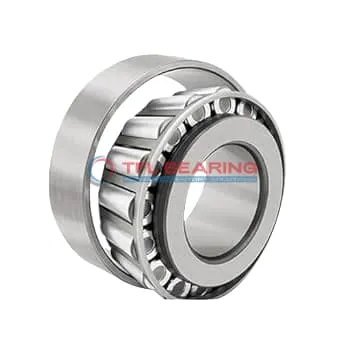

TS (Single Row Tapered Roller Bearings) (Imperial) 26100-26283

TS (Single Row Tapered Roller Bearings) (Imperial) 26100-26283

The 26100-26283 is a single-row tapered roller bearing with a 1-inch bore and 2.8346-inch outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 13200 lbf radially and 2110 lbf in thrust, suitable for moderate-speed applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are present.

Weighing just 0.9 lb, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards, it meets essential safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 26100-26283
  • Brand TFL
  • Interchangeable Timken
  • Size 1" x 2.8346" x 0.748"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.8346"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.745"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.748"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.28"
  • Cone Backface Backing Diameter 1.36"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.44"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.16"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 26100
  • Cup Part Number 26283
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 26000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 13200 lbf
  • Static Radial Load 13500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3420 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2110 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.9 lb

Features

Performance Features of 26100-26283 Bearing

26100-26283 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 13,200 lbf, ensuring reliable performance in various applications.

The single-row tapered roller design provides stability and reduces friction during operation.
With a standard radial clearance, it accommodates different operational needs.

26100-26283 Bearing operates efficiently within a temperature range of -30° to 110°C.
The steel cage maintains roller alignment, enhancing durability and service life.

This bearing requires lubrication, ensuring smooth performance over time.
Its ABEC-1 rating balances precision and cost-effectiveness for general applications.

Application

Industrial Uses of 26100-26283 Bearing
26100-26283 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 26100-26283 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for North American vehicle models.

For industrial fans and pumps, 26100-26283 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear over time.

Where Is 26100-26283 Bearing Used?
26100-26283 Bearing can be found in agricultural machinery, such as tractors and harvesters, where its robust design withstands dirt and moisture. The standard radial clearance ensures smooth rotation even under heavy loads.

It’s also a go-to choice for conveyor systems in mining operations, thanks to its ability to handle high radial loads. The ABEC-1 rating provides a good balance of precision and cost-effectiveness for these applications.

Built for Heavy-Duty Use: 26100-26283 Bearing
26100-26283 Bearing excels in gearboxes and drivetrains, where its tapered rollers distribute loads evenly. The inch measurements make it compatible with a wide range of industrial equipment.

In material handling systems, 26100-26283 Bearing’s durability reduces downtime, keeping operations running smoothly. The temperature range of -30° to 110°C ensures reliability in various climates.

Automotive vs Industrial: Applications of 26100-26283 Bearing
In automotive settings, 26100-26283 Bearing supports axle systems, offering long-lasting performance. Its Timken interchangeability simplifies maintenance and replacements.

For industrial uses, this bearing is ideal for machinery requiring consistent load handling, like presses and crushers. The chrome steel rollers provide excellent resistance to wear and fatigue.
