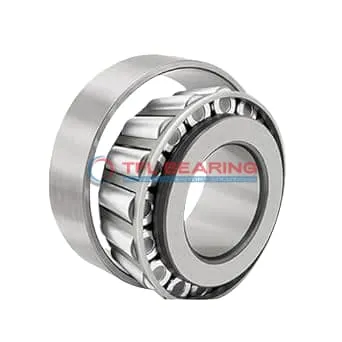

TS (Single Row Tapered Roller Bearings) (Imperial) 2382-2320

TS (Single Row Tapered Roller Bearings) (Imperial) 2382-2320

The 2382-2320 is a single-row tapered roller bearing with a 1″ bore and 2.24″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 14300 lbf radially and 1470 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. It’s well-suited for heavy-duty machinery or automotive uses where combined loads are common.

Weighing just 0.6lb, it balances strength with a compact design. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2382-2320
  • Brand TFL
  • Interchangeable Timken
  • Size 1" x 2.24" x 0.9377"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.24"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.975"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.8125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9377"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 1.18"
  • Cone Backface Backing Diameter 1.22"
  • Cup Frontface Backing Diameter 2.11"
  • Cup Backface Backing Diameter 1.85"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance -0.03"
  • Effective Center Location -0.37"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2382
  • Cup Part Number 2320
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2300
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 14300 lbf
  • Static Radial Load 13900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3710 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1470 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.600 lb

Features

Why Choose 2382-2320 Bearing for Combined Loads?

2382-2320 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 14,300 lbf, making it suitable for demanding industrial applications.

The single-row tapered roller design ensures smooth operation under combined loads.
With a standard radial clearance, it provides reliable performance in various operating conditions.

2382-2320 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage keeps the rollers aligned, reducing wear and extending service life.

Application

Industrial Uses of 2382-2320 Bearing
The 2382-2320 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

Where Is 2382-2320 Bearing Used?
You’ll often find the 2382-2320 Bearing in automotive applications like wheel hubs and differentials, thanks to its ability to manage both radial and thrust loads. The inch sizing makes it a good fit for American-made vehicles.

Built for Heavy-Duty Use: 2382-2320 Bearing
This bearing excels in industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 2382-2320 Bearing
In automotive systems, the 2382-2320 Bearing supports high-load components like axles, while in aerospace, its precision fits auxiliary gearboxes. The ABEC-1 rating ensures consistent performance across both fields.

Perfect Fit for Automation: 2382-2320 Bearing
The 2382-2320 Bearing works well in conveyor systems and robotic arms, where its tapered rollers provide smooth motion under varying loads. Its standard radial clearance offers flexibility for different setups.
