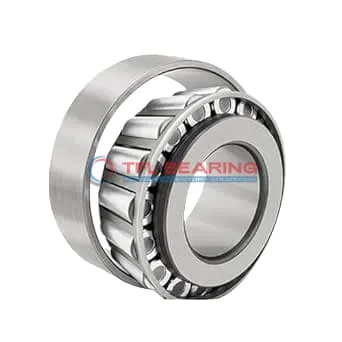

TS (Single Row Tapered Roller Bearings) (Imperial) 23100-23256

TS (Single Row Tapered Roller Bearings) (Imperial) 23100-23256

The 23100-23256 is a single-row tapered roller bearing with a 1-inch bore and 2.5625-inch outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 12300 lbf radially and 3990 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for gearboxes, wheel hubs, or industrial machinery where combined loads are common.

Weighing just 0.8 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for most industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23100-23256
  • Brand TFL
  • Interchangeable Timken
  • Size 1" x 2.5625" x 0.875"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.5625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.845"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.36"
  • Cone Backface Backing Diameter 1.54"
  • Cup Frontface Backing Diameter 2.52"
  • Cup Backface Backing Diameter 2.09"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.12"
  • Effective Center Location -0.09"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 23100
  • Cup Part Number 23256
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 23000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 12300 lbf
  • Static Radial Load 12500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3180 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3990 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.8 lb

Features

Performance Features of 23100-23256 Bearing

23100-23256 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 12300 lbf, ensuring reliable performance in various applications.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in diverse conditions.

How Is 23100-23256 Bearing Engineered for Reliability?

23100-23256 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction enhances durability, while the standard radial clearance ensures smooth operation.
Its effective center location of -0.09″ provides stability under heavy loads.
With ABEC-1 rating, it balances precision and cost-effectiveness.

Designed for Durability: 23100-23256 Bearing

23100-23256 Bearing’s tapered roller design distributes loads evenly, reducing stress on components.
The steel cage and chrome steel rollers work together to minimise wear and extend bearing life.
Its dynamic thrust rating of 3990 lbf at 90 million revolutions demonstrates long-term reliability.
The open seal type allows for easy lubrication, maintaining performance over time.

Application

Industrial Uses of 23100-23256 Bearing
The 23100-23256 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined radial and thrust loads effectively. Its chrome steel construction ensures durability in demanding environments.

Where Is 23100-23256 Bearing Used?
You’ll often find the 23100-23256 Bearing in automotive applications like truck wheel hubs, where its robust design supports high loads and long service life. The inch sizing makes it a practical choice for North American vehicles.

Built for Heavy-Duty Use: 23100-23256 Bearing
The 23100-23256 Bearing excels in industrial fans and pumps, thanks to its ability to manage both radial and axial forces. Its steel cage adds strength, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 23100-23256 Bearing
In automotive systems, the 23100-23256 Bearing is ideal for transmissions and differentials, while its precision also suits aerospace landing gear components. The ABEC-1 rating ensures consistent performance.

Key Fields for 23100-23256 Bearing
The 23100-23256 Bearing is a go-to for mining equipment, where its tapered rollers handle uneven loads with ease. Its standard radial clearance allows for smooth operation in varying conditions.
