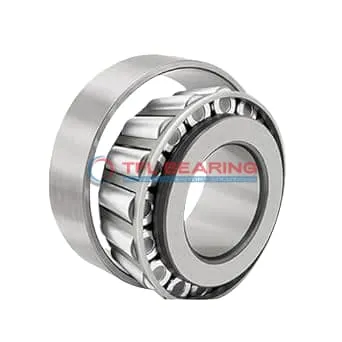

TS (Single Row Tapered Roller Bearings) (Imperial) 1994X-1932

TS (Single Row Tapered Roller Bearings) (Imperial) 1994X-1932

The 1994X-1932 is a single-row tapered roller bearing with a 1-inch bore and 2.3125-inch outer diameter, crafted from robust chrome steel. It handles combined loads up to 10900 lbf radially and 1590 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or wheel hubs where combined loads are common.

Weighing just 0.5 lb, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1994X-1932
  • Brand TFL
  • Interchangeable Timken
  • Size 1" x 2.3125" x 0.7501"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.3125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.762"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5937"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7501"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.2"
  • Cone Backface Backing Diameter 1.46"
  • Cup Frontface Backing Diameter 2.17"
  • Cup Backface Backing Diameter 2.05"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.23"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 1994X
  • Cup Part Number 1932
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 1900
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 10900 lbf
  • Static Radial Load 11300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 2820 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1590 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.5 lb

Features

Performance Features of 1994X-1932 Bearing

1994X-1932 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 10,900 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

1994X-1932 Bearing’s standard radial clearance allows for smooth operation.
Its ABEC-1 rating ensures consistent performance in precision tasks.

The tapered roller design efficiently handles both radial and thrust loads.
This makes 1994X-1932 Bearing a versatile choice for industrial applications.

Application

Industrial Uses of 1994X-1932 Bearing
1994X-1932 Bearing is commonly used in heavy machinery like conveyor systems and industrial gearboxes, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is 1994X-1932 Bearing Used?
In automotive applications, 1994X-1932 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 1994X-1932 Bearing
1994X-1932 Bearing excels in construction equipment, such as excavators and cranes, where its robust design withstands high radial and thrust loads. The open seal type allows for easy lubrication and maintenance.

Automotive vs Aerospace: Applications of 1994X-1932 Bearing
While 1994X-1932 Bearing is popular in automotive drivetrains, it also finds use in aerospace landing gear systems. Its precise tolerances and chrome steel rollers ensure consistent performance in both fields.

What Makes 1994X-1932 Bearing a Preferred Choice?
For agricultural machinery, 1994X-1932 Bearing offers excellent load capacity and longevity, even in dusty or wet conditions. The steel cage adds extra strength, making it a dependable choice for farmers.
