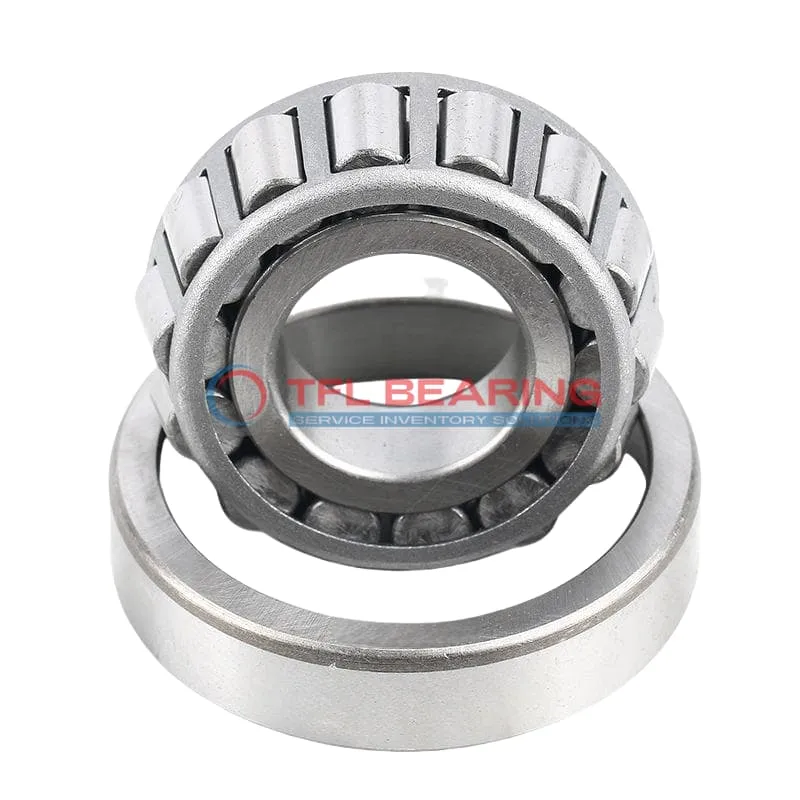

TS (Single Row Tapered Roller Bearings) (Imperial) 15102-15243

TS (Single Row Tapered Roller Bearings) (Imperial) 15102-15243

The 15102-15243 is a single-row tapered roller bearing with a 1″ bore and 2.4375″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 13500 lbf radially and 2090 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or axles where combined loads are common.

Weighing just 0.6lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 15102-15243
  • Brand TFL
  • Interchangeable Timken
  • Size 1" x 2.4375" x 0.75"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.4375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.75"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 1.24"
  • Cone Backface Backing Diameter 1.34"
  • Cup Frontface Backing Diameter 2.30"
  • Cup Backface Backing Diameter 2.13"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.23"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 15102
  • Cup Part Number 15243
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 15000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 13500 lbf
  • Static Radial Load 12100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3490 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.600 lb

Features

Performance Features of 15102-15243 Bearing

15102-15243 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 13,500 lbf, ensuring reliable performance in various applications.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in diverse conditions.

How Is 15102-15243 Bearing Engineered for Reliability?

15102-15243 Bearing features precise cone and cup width tolerances for consistent performance.
The tapered roller design efficiently handles both radial and thrust loads.
Its chrome steel construction provides durability and resistance to wear.
Standard radial clearance options allow for flexibility in different applications.

Designed for Durability: 15102-15243 Bearing

15102-15243 Bearing’s single-row construction ensures stability under heavy loads.
The open seal type allows for easy lubrication, maintaining smooth operation.
With an ABEC-1 rating, it balances precision and cost-effectiveness.
Its interchangeable design with Timken bearings offers convenience for replacements.

Application

Industrial Uses of 15102-15243 Bearing
The 15102-15243 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.

Where Is 15102-15243 Bearing Used?
You’ll often find 15102-15243 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for older or custom-built vehicles.

Built for Heavy-Duty Use: 15102-15243 Bearing
This bearing excels in industrial settings like conveyor systems, where its open design allows for easy lubrication. The steel cage adds extra strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of 15102-15243 Bearing
In automotive systems, 15102-15243 Bearing supports wheel assemblies, while its precision makes it useful in aerospace landing gear. The tapered rollers ensure smooth operation under varying loads.

Perfect Fit for Automation: 15102-15243 Bearing
The 15102-15243 Bearing is ideal for robotic arms and automated machinery, thanks to its consistent performance. Its standard radial clearance ensures reliable movement in repetitive tasks.
