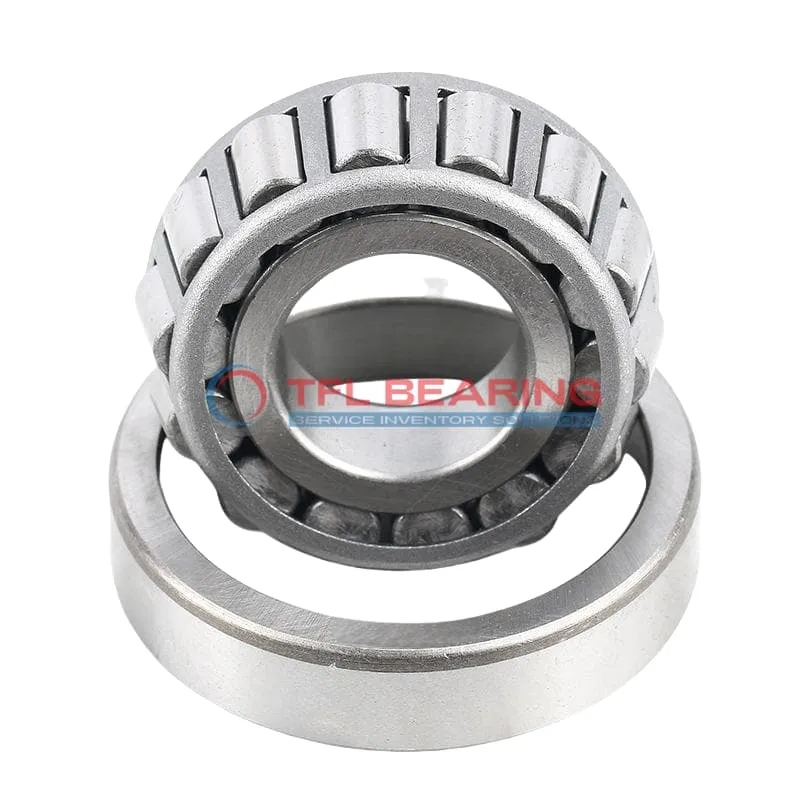

TS (Single Row Tapered Roller Bearings) (Imperial) 15100-15244

TS (Single Row Tapered Roller Bearings) (Imperial) 15100-15244

The 15100-15244 is a single-row tapered roller bearing with a 1-inch bore and 2.4409-inch outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 13500 lbf radially and 2090 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or wheel hubs where combined loads are common.

Weighing just 0.7 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 15100-15244
  • Brand TFL
  • Interchangeable Timken
  • Size 1" x 2.4409" x 0.8125"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.4409"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.24"
  • Cone Backface Backing Diameter 1.5"
  • Cup Frontface Backing Diameter 2.30"
  • Cup Backface Backing Diameter 2.17"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.23"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 15100
  • Cup Part Number 15244
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 15000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 13500 lbf
  • Static Radial Load 12100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3490 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.7 lb

Features

Performance Features of 15100-15244 Bearing

15100-15244 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 13,500 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

15100-15244 Bearing’s standard radial clearance allows for smooth operation under different conditions.
Its ABEC-1 rating ensures consistent precision for industrial applications.

Application

Industrial Uses of 15100-15244 Bearing
The 15100-15244 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. Its chrome steel construction ensures durability in demanding environments.

Where Is 15100-15244 Bearing Used?
You’ll often find the 15100-15244 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for North American vehicle models.

Built for Heavy-Duty Use: 15100-15244 Bearing
This bearing excels in industrial gearboxes, where its open design allows for easy lubrication and maintenance. The steel cage provides added strength for high-load scenarios.

Automotive vs Aerospace: Applications of 15100-15244 Bearing
In automotive systems, the 15100-15244 Bearing supports wheel assemblies, while its precision makes it suitable for certain aerospace components. The ABEC-1 rating ensures consistent performance.

Perfect Fit for Automation: 15100-15244 Bearing
The 15100-15244 Bearing works well in conveyor systems and robotic arms, where its tapered rollers manage varying loads smoothly. Its temperature range suits both indoor and outdoor use.
