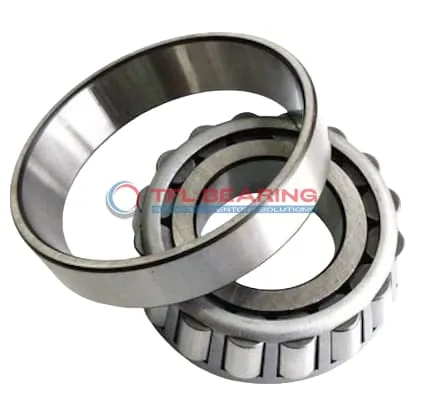

TS (Single Row Tapered Roller Bearings) (Imperial) 13175-13318

TS (Single Row Tapered Roller Bearings) (Imperial) 13175-13318

The 13175-13318 is a single-row tapered roller bearing with a 1.75″ bore and 3.1875″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 11400 lbf radially and 2680 lbf in thrust, suitable for moderate-speed applications.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable alternative for replacements. It’s commonly used in automotive or industrial settings where combined loads are present.

Weighing just 0.9lb, it’s a compact yet robust choice. Compliant with RoHS and REACH standards for safe usage.

The tapered roller design provides effective load distribution, enhancing longevity. The standard radial clearance allows for easy installation in various setups.

Ideal for machinery requiring precise alignment and consistent performance. Its ABEC-1 rating ensures reliable operation without excessive precision demands.

The bearing’s cone and cup components are designed for straightforward maintenance. The chrome steel rollers offer resistance to wear under typical operating conditions.

Suitable for applications like wheel hubs or conveyor systems. Its dimensions make it a practical fit for space-constrained environments.

The effective center location aids in proper load handling. The steel cage maintains roller alignment during rotation, reducing friction.

Works well in environments where periodic lubrication is possible. The standard cup type simplifies integration with existing systems.

Its dynamic radial rating of 2960 lbf at 90 million revolutions indicates lasting performance. The bearing’s construction allows for handling both radial and thrust loads efficiently.

A practical solution for equipment requiring dependable rotation under load. The imperial measurements make it compatible with older machinery specifications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 13175-13318
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 3.1875" x 0.75"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.1875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.6875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.75"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.005"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.97"
  • Cone Backface Backing Diameter 1.97"
  • Cup Frontface Backing Diameter 3.03"
  • Cup Backface Backing Diameter 2.83"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location 0.03"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 13175
  • Cup Part Number 13318
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 13000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 11400 lbf
  • Static Radial Load 13700 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 2960 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2680 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.9 lb

Features

How Is 13175-13318 Bearing Engineered for Reliability?

13175-13318 Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity of 11400 lbf makes it suitable for heavy-duty applications.

The tapered roller design distributes loads evenly, reducing stress and extending service life.
With a standard radial clearance, it offers reliable performance in various operating conditions.

13175-13318 Bearing operates within a temperature range of -30° to 110°C, maintaining stability in diverse environments.
Its steel cage keeps rollers aligned, ensuring smooth operation and minimal wear.

Designed for easy lubrication, 13175-13318 Bearing simplifies maintenance and enhances longevity.
The open seal type allows for efficient lubrication and cooling during use.

Application

Industrial Uses of 13175-13318 Bearing
13175-13318 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in rugged environments.

In automotive applications, 13175-13318 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a straightforward replacement for many North American vehicle models.

For industrial gearboxes, 13175-13318 Bearing’s open design allows easy lubrication, extending service life in high-speed operations. The steel cage adds stability, reducing wear during continuous use.

Where Is 13175-13318 Bearing Used?
You’ll often find 13175-13318 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design withstands dusty conditions. The standard radial clearance ensures smooth operation even under heavy loads.

In conveyor systems, 13175-13318 Bearing supports rollers, handling both radial and axial forces efficiently. Its compatibility with Timken models makes it a versatile choice for maintenance and upgrades.

Built for Heavy-Duty Use: 13175-13318 Bearing
13175-13318 Bearing excels in mining equipment, where its tapered rollers manage extreme loads and vibrations. The chrome steel rollers and rings resist wear, even in abrasive environments.

For railway applications, 13175-13318 Bearing provides reliable performance in axle boxes, ensuring smooth movement under dynamic loads. Its ABEC-1 rating balances precision and cost-effectiveness for these demanding uses.

Automotive vs Aerospace: Applications of 13175-13318 Bearing
In automotive settings, 13175-13318 Bearing is ideal for drivetrain components, offering a balance of strength and affordability. The inch measurements simplify integration into existing designs.

For aerospace ground support equipment, 13175-13318 Bearing handles heavy loads while maintaining precision. Its temperature range suits both indoor and outdoor operational conditions.
