TS (Single Row Tapered Roller Bearings) (Imperial) 07098-07210X

TS (Single Row Tapered Roller Bearings) (Imperial) 07098-07210X

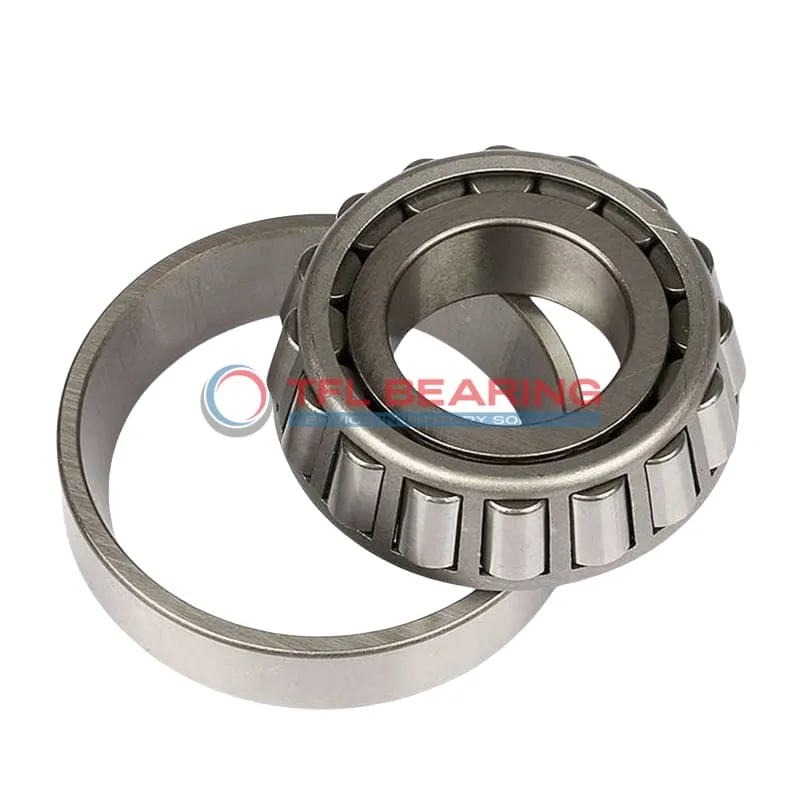

The 07098-07210X is a single-row tapered roller bearing with a 0.9835″ bore and 2″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 6540 lbf radially and 1170 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance under stress. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in automotive or industrial equipment where combined loads are common.

Weighing just 0.3 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 07098-07210X
  • Brand TFL
  • Interchangeable Timken
  • Size 0.9835" x 2" x 0.591"
  • Bore Dia 0.9835"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.5614"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.591"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.14"
  • Cone Backface Backing Diameter 1.22"
  • Cup Frontface Backing Diameter 1.89"
  • Cup Backface Backing Diameter 1.75"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.11"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 7098
  • Cup Part Number 07210X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 7000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 6540 lbf
  • Static Radial Load 6650 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 1700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1170 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.3 lb

Features

Why Choose 07098-07210X Bearing for Precision Tasks?

07098-07210X Bearing features a single-row tapered roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.
The bearing’s dynamic radial load capacity of 6540 lbf makes it suitable for heavy-duty tasks.
With a standard radial clearance, it offers reliable performance across various operating conditions.

How Is 07098-07210X Bearing Engineered for Reliability?

07098-07210X Bearing is crafted with precision to maintain consistent performance under stress.
The steel cage keeps the rollers aligned, reducing friction and extending service life.
Its effective center location of -0.11″ ensures stable operation in combined load scenarios.
The bearing operates efficiently within a temperature range of -30° to 110°C.

Built for Durability: 07098-07210X Bearing

07098-07210X Bearing’s chrome steel rollers and rings provide excellent resistance to wear.
The open seal design allows for easy lubrication, ensuring smooth operation over time.
With a static radial load capacity of 6650 lbf, it handles heavy loads with ease.
Its ABEC-1 rating guarantees consistent precision in various industrial applications.

Steel vs Ceramic Bearings: Strengths of 07098-07210X Bearing

07098-07210X Bearing uses chrome steel for both rollers and rings, offering a balance of strength and cost-efficiency.
The tapered roller design distributes loads evenly, reducing stress on individual components.
Its dynamic thrust rating of 1170 lbf ensures reliable performance in thrust-heavy applications.
The bearing’s standard radial clearance makes it versatile for different installation requirements.

Application

Common Applications of 07098-07210X Bearing
The 07098-07210X Bearing is widely used in industrial equipment like conveyor systems and gearboxes, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 07098-07210X Bearing is often found in wheel hubs and differentials, providing reliable performance under heavy loads. The inch sizing makes it compatible with many North American vehicle models.

For automation systems, 07098-07210X Bearing supports robotic arms and assembly lines, where precision and load capacity are key. The open design allows for easy lubrication, extending its service life.

Where Is 07098-07210X Bearing Used?
You’ll often spot 07098-07210X Bearing in agricultural machinery, particularly in tractors and harvesters, where its robust design handles rough conditions. The steel cage adds extra strength for heavy-duty use.

In construction equipment, 07098-07210X Bearing works well in excavators and loaders, thanks to its ability to manage radial and thrust loads. The standard radial clearance ensures smooth operation even under stress.

Built for Heavy-Duty Use: 07098-07210X Bearing
07098-07210X Bearing is a go-to choice for mining equipment, where its tapered rollers excel under extreme loads. The chrome steel rollers and rings offer excellent wear resistance.

In forestry machinery, 07098-07210X Bearing performs reliably in log splitters and sawmills. Its ABEC-1 rating ensures consistent performance without unnecessary precision costs.

Automotive vs Aerospace: Applications of 07098-07210X Bearing
In automotive systems, 07098-07210X Bearing handles wheel and transmission loads with ease. The inch measurements make it a natural fit for many US-made vehicles.

For aerospace ground equipment, 07098-07210X Bearing supports maintenance tools and loading systems. Its temperature range covers most operational environments without issue.
