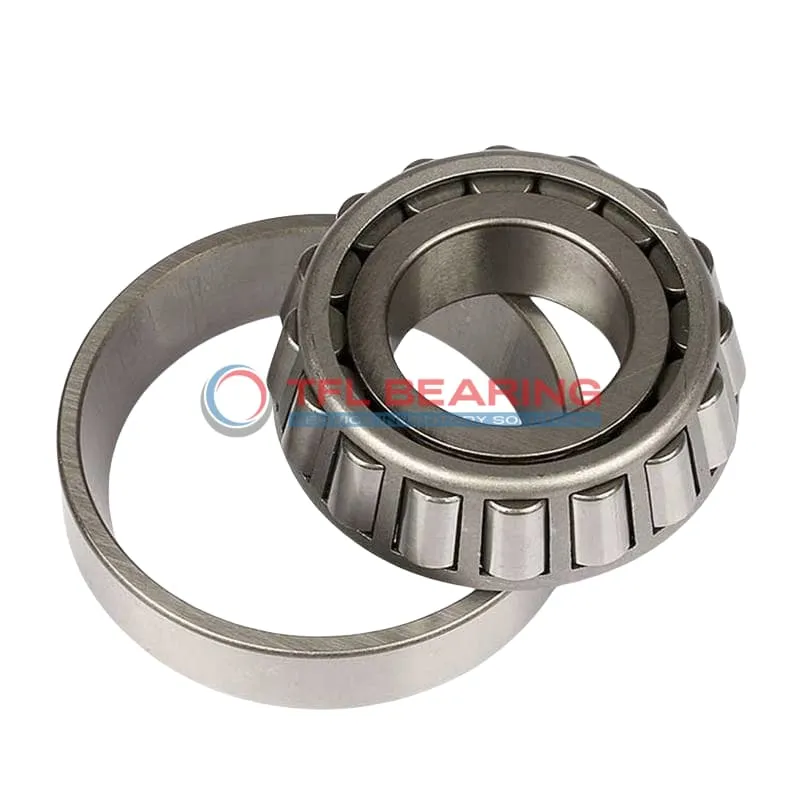

TS (Single Row Tapered Roller Bearings) (Imperial) 07098-07205

TS (Single Row Tapered Roller Bearings) (Imperial) 07098-07205

The 07098-07205 is a single-row tapered roller bearing with a 0.9835″ bore and 2.0472″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 6540 lbf radial and 1170 lbf thrust, suitable for various industrial uses.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for different environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like automotive axles or heavy machinery where combined loads are common.

Weighing just 0.3 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 07098-07205
  • Brand TFL
  • Interchangeable Timken
  • Size 0.9835" x 2.0472" x 0.591"
  • Bore Dia 0.9835"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.0472"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.5614"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.591"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 1.14"
  • Cone Backface Backing Diameter 1.22"
  • Cup Frontface Backing Diameter 1.91"
  • Cup Backface Backing Diameter 1.75"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.11"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 7098
  • Cup Part Number 7205
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 7000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 6540 lbf
  • Static Radial Load 6650 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 1700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1170 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.3 lb

Features

Engineered for Precision: 07098-07205 Bearing

07098-07205 Bearing features a single row tapered roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The bearing’s dynamic radial load capacity of 6540 lbf makes it suitable for heavy-duty machinery.
With a standard radial clearance option, it offers flexibility for various operational needs.

The open seal type allows for easy lubrication, maintaining smooth performance over time.
Its temperature range of -30° to 110°C ensures reliability in diverse working conditions.

Application

Industrial Uses of 07098-07205 Bearing
The 07098-07205 Bearing is a solid choice for heavy machinery, especially in construction equipment where combined loads are common. Its tapered roller design handles both radial and thrust forces efficiently.

In automotive applications, 07098-07205 Bearing works well in wheel hubs and differentials, thanks to its chrome steel construction. The open seal design simplifies lubrication, which is handy for routine maintenance.

For industrial conveyor systems, 07098-07205 Bearing’s durability ensures reliable performance under constant use. The standard radial clearance makes it adaptable to various operational conditions.

Where Is 07098-07205 Bearing Used?
You’ll often spot 07098-07205 Bearing in agricultural machinery like tractors, where its robust design handles rough terrain. The inch sizing makes it a good fit for older equipment still using imperial measurements.

In mining equipment, 07098-07205 Bearing’s ability to manage heavy loads keeps operations running smoothly. The steel cage adds extra strength, which is crucial in such demanding environments.

Built for Heavy-Duty Use: 07098-07205 Bearing
07098-07205 Bearing is a reliable option for forklifts, where its tapered rollers distribute weight evenly. The chrome steel rollers resist wear, even with frequent starts and stops.

For hydraulic pumps, 07098-07205 Bearing’s precision ensures consistent fluid flow. Its compatibility with Timken models makes replacements straightforward.

Automotive vs Aerospace: Applications of 07098-07205 Bearing
In automotive settings, 07098-07205 Bearing is often used in drivetrains, where its combined load capacity shines. The ABEC-1 rating balances performance and cost for most vehicle needs.

While not common in aerospace, 07098-07205 Bearing can be found in ground support equipment. Its temperature range suits most outdoor conditions without issue.
