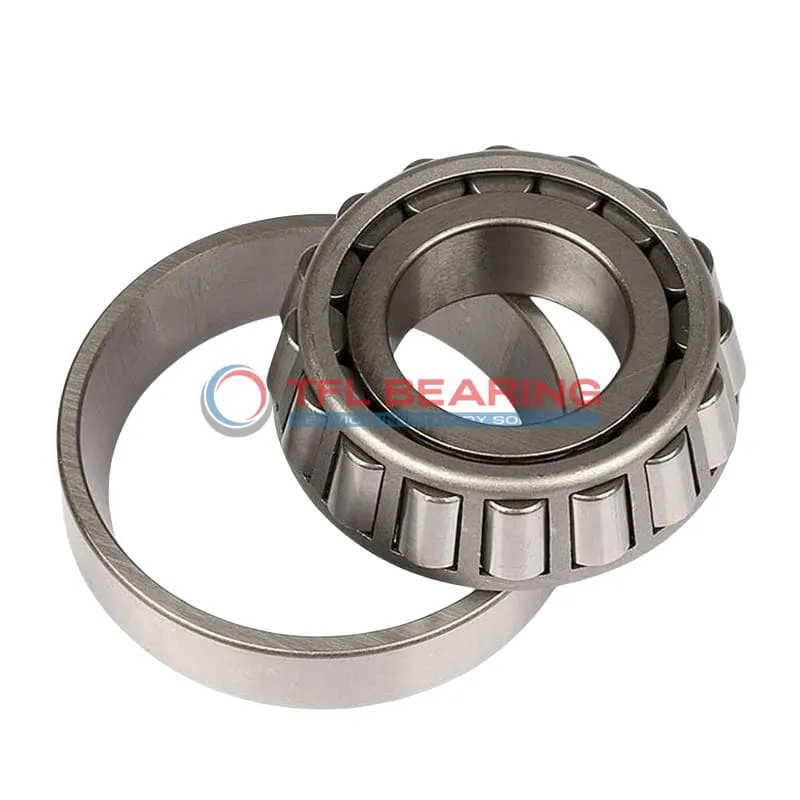

TS (Single Row Tapered Roller Bearings) (Imperial) 07096-07204

TS (Single Row Tapered Roller Bearings) (Imperial) 07096-07204

The 07096-07204 is a single-row tapered roller bearing with a 0.9905″ bore and 2.047″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 6540 lbf radially and 1170 lbf in thrust, suitable for moderate-speed applications.

Its open design simplifies lubrication, while the steel cage enhances durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is compatible with Timken bearings, offering a reliable alternative for replacements. It’s well-suited for gearboxes, axles, or machinery handling combined radial and thrust loads.

Weighing just 0.3 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 07096-07204
  • Brand TFL
  • Interchangeable Timken
  • Size 0.9905" x 2.047" x 0.591"
  • Bore Dia 0.9905"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.047"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.5614"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.591"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.16"
  • Cone Backface Backing Diameter 1.24"
  • Cup Frontface Backing Diameter 1.91"
  • Cup Backface Backing Diameter 1.77"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.11"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 7096
  • Cup Part Number 7204
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 7000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 6540 lbf
  • Static Radial Load 6650 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 1700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1170 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.3 lb

Features

How Is 07096-07204 Bearing Engineered for Reliability?

07096-07204 Bearing features chrome steel rings and rollers, ensuring durability under combined loads.
Its dynamic radial load capacity of 6540 lbf makes it suitable for demanding industrial applications.
The steel cage maintains roller alignment, reducing friction and wear over time.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

What Makes 07096-07204 Bearing Suitable for High-Temperature Applications?

07096-07204 Bearing is built with chrome steel components, capable of withstanding temperatures up to 110°C.
The open design allows for effective lubrication, maintaining performance in high-heat conditions.
Its standard radial clearance options ensure smooth operation even under thermal expansion.
This bearing is ideal for applications where temperature fluctuations are common.

Designed for Durability: 07096-07204 Bearing

07096-07204 Bearing’s single-row tapered roller design provides excellent load distribution.
The chrome steel construction resists wear, extending the bearing’s service life.
With a static radial load capacity of 6650 lbf, it handles heavy-duty applications with ease.
Its ABEC-1 rating ensures consistent performance in precision machinery.

Application

Key Fields for 07096-07204 Bearing
In industrial settings, 07096-07204 Bearing is commonly used in conveyor systems and gearboxes, where its tapered roller design efficiently handles combined radial and thrust loads. The chrome steel construction ensures durability even in demanding environments.

Where Is 07096-07204 Bearing Used?
You’ll often find 07096-07204 Bearing in automotive applications like wheel hubs and differentials, thanks to its reliable performance under heavy loads. Its inch sizing makes it a good fit for American and British machinery.

Built for Heavy-Duty Use: 07096-07204 Bearing
This bearing excels in construction equipment, such as bulldozers and cranes, where its robust design withstands intense stress. The open seal type allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 07096-07204 Bearing
In automotive systems, 07096-07204 Bearing supports high-load components like axles, while in aerospace, it’s used in auxiliary systems requiring precision. Its ABEC-1 rating ensures consistent performance across both fields.

Perfect Fit for Automation: 07096-07204 Bearing
For robotic arms and automated machinery, 07096-07204 Bearing offers smooth operation with minimal maintenance. The steel cage provides added stability, making it a dependable choice for repetitive movements.
