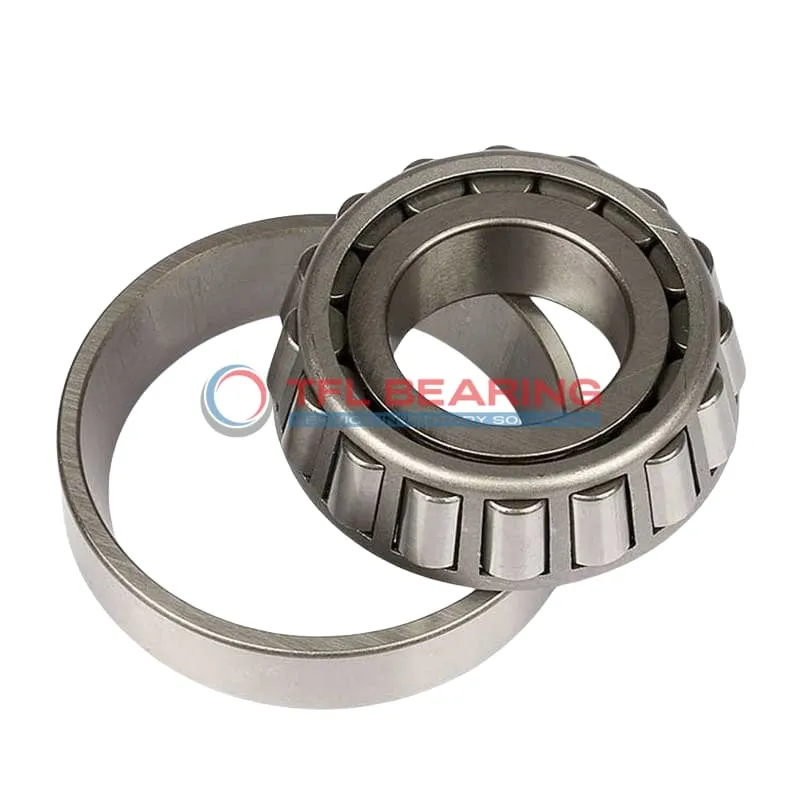

TS (Single Row Tapered Roller Bearings) (Imperial) 07096-07196

TS (Single Row Tapered Roller Bearings) (Imperial) 07096-07196

The 07096-07196 is a single-row tapered roller bearing with a 0.9905″ bore and 1.9687″ outer diameter, crafted from durable chrome steel. It handles combined loads, supporting up to 6540 lbf dynamically and 6650 lbf statically.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for applications like automotive axles or industrial gearboxes where combined loads are common.

Weighing just 0.3 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 07096-07196
  • Brand TFL
  • Interchangeable Timken
  • Size 0.9905" x 1.9687" x 0.5313"
  • Bore Dia 0.9905"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 1.9687"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.5614"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.5313"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.04"
  • Cone Frontface Backing Diameter 1.16"
  • Cone Backface Backing Diameter 1.24"
  • Cup Frontface Backing Diameter 1.87"
  • Cup Backface Backing Diameter 1.75"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.11"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 7096
  • Cup Part Number 7196
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 7000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 6540 lbf
  • Static Radial Load 6650 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 1700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1170 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.3 lb

Features

What Makes 07096-07196 Bearing Durable?

07096-07196 Bearing is constructed with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 6540 lbf, ensuring reliable performance in various applications.
The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in diverse operating conditions.

How Is 07096-07196 Bearing Engineered for Reliability?

07096-07196 Bearing features a single-row tapered roller design, optimised for handling both radial and thrust loads.
The chrome steel construction enhances durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 1170 lbf at 90 million revolutions demonstrates long-term reliability.
The open design allows for easy lubrication, maintaining performance over time.

Built for Reliability: 07096-07196 Bearing

07096-07196 Bearing is designed with precise cone and cup dimensions, ensuring accurate fit and alignment.
The tapered roller construction distributes loads evenly, reducing stress on individual components.
With a static radial load capacity of 6650 lbf, it handles heavy-duty applications with ease.
The steel cage provides stability, keeping rollers in position during operation.

Steel vs Ceramic Bearings: Strengths of 07096-07196 Bearing

07096-07196 Bearing uses chrome steel for both rings and rollers, offering a balance of strength and affordability.
The material choice provides excellent wear resistance, making it suitable for industrial applications.
Its ABEC-1 rating ensures consistent performance, while the standard radial clearance allows for versatility.
The bearing’s design focuses on practical durability rather than exotic materials.

Application

Industrial Uses of 07096-07196 Bearing
The 07096-07196 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability in demanding environments.

Where Is 07096-07196 Bearing Used?
You’ll often find the 07096-07196 Bearing in automotive applications like wheel hubs and differentials, where its ability to manage both radial and thrust loads is essential. The inch sizing makes it a good fit for North American vehicle designs.

Built for Heavy-Duty Use: 07096-07196 Bearing
In conveyor systems and industrial fans, the 07096-07196 Bearing’s open design allows for easy lubrication, extending its service life. The steel cage adds robustness, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 07096-07196 Bearing
While the 07096-07196 Bearing is popular in automotive drivetrains, its precision also suits aerospace components like landing gear mechanisms. The ABEC-1 rating ensures consistent performance in both sectors.

Perfect Fit for Automation: 07096-07196 Bearing
For robotic arms and automated assembly lines, the 07096-07196 Bearing offers smooth motion control thanks to its tapered roller design. The standard radial clearance provides flexibility for various precision needs.
