TS (Single Row Tapered Roller Bearings) (Imperial) 02473-02420

TS (Single Row Tapered Roller Bearings) (Imperial) 02473-02420

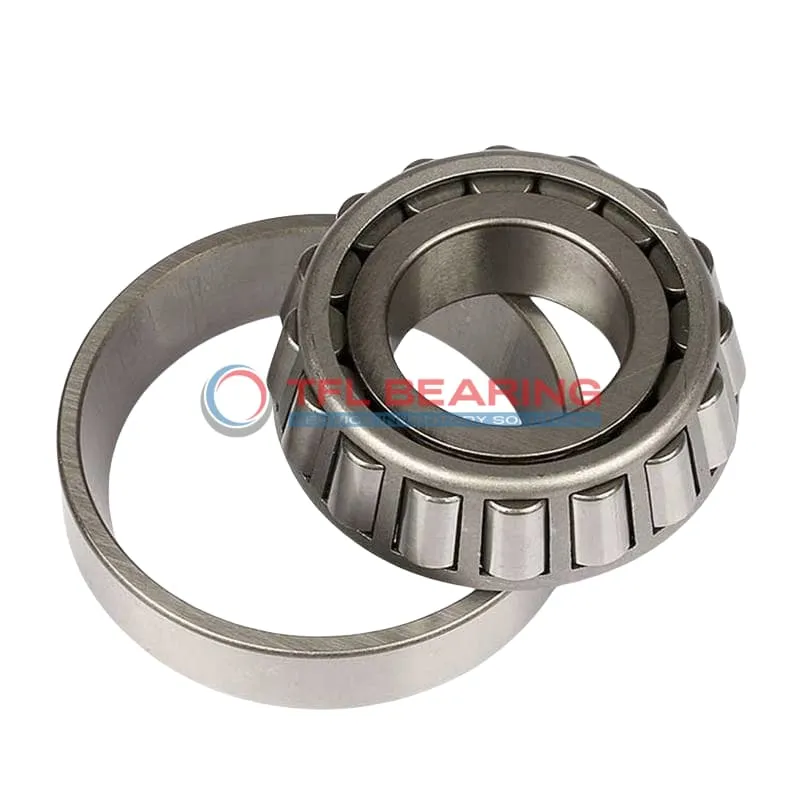

The 02473-02420 is a single-row tapered roller bearing with a 1-inch bore and 2.6875-inch outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 14300 lbf radially and 2650 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are present.

Weighing just 0.9 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

The standard radial clearance can be adjusted to C3, C4, or C5 for specific needs. Its ABEC-1 rating ensures consistent performance for general industrial use.

The tapered roller design provides effective load distribution, enhancing longevity. Perfect for applications requiring precise alignment and smooth rotation.

Maintenance is straightforward, with easy access for lubrication. The bearing’s construction ensures stability even under heavy loads.

Suitable for both radial and thrust loads, it’s a practical choice for many mechanical systems. Its compact size makes it easy to integrate into existing setups.

The chrome steel rollers and rings offer excellent wear resistance. This bearing is a dependable option for long-term use in various industrial settings.

With its standard cup type and open seal, it’s adaptable to different configurations. The bearing’s design promotes efficient operation with minimal friction.

Ideal for machinery that requires reliable performance under combined loads. Its compatibility with Timken parts simplifies sourcing and replacement.

The bearing’s effective center location ensures proper alignment in assemblies. Its robust construction handles dynamic and static loads with ease.

Perfect for applications where durability and performance are key. The bearing’s design reduces wear, extending service life.

Suitable for use in automotive, agricultural, or construction equipment. Its tapered rollers provide smooth operation under varying load conditions.

The bearing’s dimensions and tolerances ensure a precise fit. Its steel cage maintains roller alignment for consistent performance.

With its wide temperature range, it performs well in diverse environments. The bearing’s design minimizes maintenance needs, saving time and effort.

A reliable choice for engineers and maintenance teams alike. Its sturdy build and versatile performance make it a go-to solution for many applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 02473-02420
  • Brand TFL
  • Interchangeable Timken
  • Size 1" x 2.6875" x 0.875"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.6875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.32"
  • Cone Backface Backing Diameter 1.36"
  • Cup Frontface Backing Diameter 2.52"
  • Cup Backface Backing Diameter 2.32"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.2"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2473
  • Cup Part Number 2420
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2400
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 14300 lbf
  • Static Radial Load 15800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3720 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2650 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.9 lb

Features

Performance Features of 02473-02420 Bearing

02473-02420 Bearing is crafted with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 14,300 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

02473-02420 Bearing requires lubrication, ensuring smooth operation and reduced wear over time.
Its standard radial clearance and ABEC-1 rating make it suitable for general industrial use.

Application

Industrial Uses of 02473-02420 Bearing
02473-02420 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 02473-02420 Bearing Used?
You’ll often find 02473-02420 Bearing in automotive applications like wheel hubs and differentials, thanks to its ability to manage both radial and thrust loads. Its inch sizing makes it a good fit for American-made vehicles.

Built for Heavy-Duty Use: 02473-02420 Bearing
02473-02420 Bearing excels in industrial settings like conveyor systems, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength for long-term reliability.

Automotive vs Aerospace: Applications of 02473-02420 Bearing
In automotive systems, 02473-02420 Bearing supports high-load components like axles, while in aerospace, its precision fits landing gear mechanisms. The ABEC-1 rating ensures consistent performance across different environments.

Perfect Fit for Automation: 02473-02420 Bearing
02473-02420 Bearing works well in automated machinery, such as robotic arms, where smooth rotation is key. Its standard radial clearance options make it adaptable to various precision needs.
