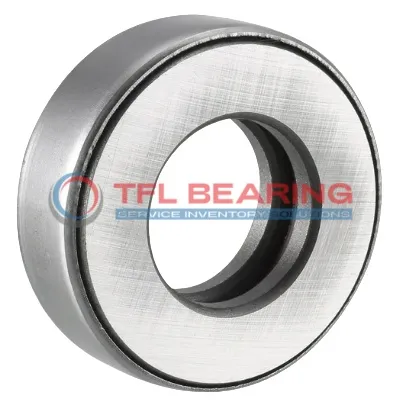

Thrust Ball Bearing With Outside Band T-100-4

Thrust Ball Bearing With Outside Band T-100-4

The T-100-4 is a thrust ball bearing with an outside band, measuring 0.875″ in bore diameter and 1.8125″ in outer diameter. Made from durable 52100 chrome steel, it handles thrust loads up to 3750 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its design includes 13 balls, each 5/16″ in diameter, ensuring even load distribution. The bearing requires lubrication for optimal performance, making maintenance straightforward.

With a static thrust load capacity of 11343 lbf, it’s robust for heavy-duty applications. The inch-sized dimensions and tolerances make it suitable for machinery requiring precise fits.

Ideal for industrial equipment or automotive systems where reliable thrust load support is needed. Compliant with RoHS and REACH standards, it’s a safe and dependable choice. Weighing just 0.14kg, it’s lightweight yet sturdy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-4
  • Brand TFL
  • Bore Dia 0.875000"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 0.906250"
  • Outer Dia 1.812500"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.687500"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 5/16"
  • Ball Qty 13
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 3750 lbf
  • Dynamic Thrust Load(100 RPM) 2350 lbf
  • Dynamic Thrust Load(500 RPM) 1450 lbf
  • Dynamic Thrust Load(1500 RPM) 1040 lbf
  • Static Thrust Load 11343 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.14 kg
Thrust Ball Bearing With Outside Band T-100-4 dimension drawing
Download DWG Download PDF

Features

How Does T-100-4 Bearing Handle Heavy Loads?

T-100-4 Bearing is crafted from 52100 chrome steel, offering robust resistance to high thrust loads.
Its static thrust load capacity reaches 11343 lbf, making it suitable for demanding industrial applications.

The bearing’s 13-ball design ensures even load distribution, enhancing durability under stress.
With a temperature range of -30° to 110°C, it performs reliably in varied environments.

T-100-4 Bearing requires lubrication, which helps maintain smooth operation and prolongs service life.
Its inch-based measurements ensure compatibility with systems using imperial standards.

Application

Essential Roles of T-100-4 Bearing
T-100-4 Bearing is commonly used in industrial machinery, especially in applications needing reliable thrust load support, like hydraulic pumps and gear reducers. Its inch sizing makes it a good fit for North American equipment standards.

In automotive settings, T-100-4 Bearing works well in clutch mechanisms and steering systems, where its chrome steel construction ensures long-lasting performance. The outside band design helps maintain alignment under heavy loads.

For automation systems, T-100-4 Bearing provides smooth operation in robotic actuators and conveyor drives. Its balanced load capacity makes it suitable for both low and medium-speed applications.

Medical devices like dental chairs also benefit from T-100-4 Bearing’s precise tolerances and consistent thrust handling. The lubrication requirement ensures quiet operation in sensitive environments.

Around the home, T-100-4 Bearing can be found in power tools and small appliances, where its compact size and durability are valued. The temperature range allows for use in various climates.
